Vertical wheeelchair lift
| Price: | US$ 5500 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, LC, WESTERN UNION, PAY PAL |
| Port of Export: |
Product Details
| Model No.: | HTVL0.25 | Brand Name: | Hontylift |
|---|
| Certification: | ISO9001:2000 |
|---|---|
| Specification: | CAPACITY- 150-350KG |
Packaging & Delivery
| Packaging: | Standard Packaging- plywood box (1 set per box) |
|---|---|
| Delivery/Lead Time: | 10 working days |
| Production Capacity: | 1000/month |
Product Description
Parameters
Model HTVL
Capacity 250kg
Platform size 1200MM* 900MM (Can be customized)
Lifting height 3000mm
Dimensions 1200*1260*3800mm
Drive mode Hydraulic
Configuration Open through or front and side entrances
Speed 0.06m/s
Control voltage 24V/DC
Power Output 2.2KW/220V or as your local voltage
Power Input 220v/50hz or as your local voltage
Control Mode Inching Switch or Automatic
Drive Control Self-resetting system
Material of Platform Checkered slip-proof steel plate ,surface stainless steel
Painting Stainless steel
Operation Panel Polished aluminum alloy
Safety Wane Working Range 75®
Working Condition Both indoors and outdoors
Working temperature From -10®~ 60®C
Installation Non-pit installation, directly fixed to concrete floor（the concrete floor below the platform shall not be lower than the ground）
Control Device

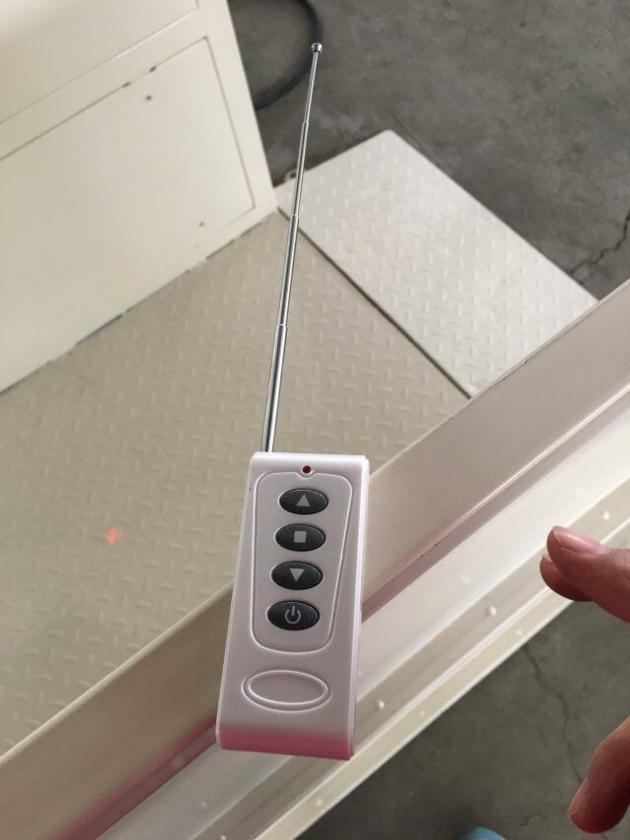

Calling box (installed on the wall nearby) and remote
controller(Extra optional)
Emergency Stop
The lifting and lowering process can be stopped immediately
by pressing the emergency button.
|
