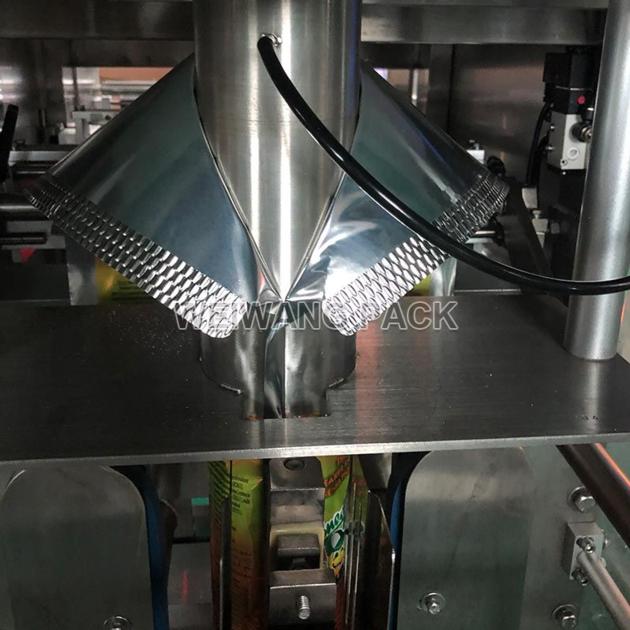

Vertical Packing Machine WEIWANG PACK(VFFS)

WW-320W/420W/520W/720W/1050W/1200W
Application: Suitable for a variety of metering equipment, packaging a variety of products; Such as: puffed food, shrimp roll, ice, frozen food, potato chips, peanuts, popcorn, corn flour, seeds, sugar and so on.
Automatic Weighing Packing Machine WEIWANG PACK

Multihead Weigher (1/2/4/10/14/16/20/24heads)

Automatical Z-type bucket elevator

Supported Platforms

Finished product conveyor

Weight inspection procedure

Metal detector

Rotary table

Automatic conveying and weighing products and forming a film sealing bag.

Automatic weighing - filling - sealing type, easy to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Combination scale improves packing speed and precision
Auto correcting the excursion of the film, easy to install film

PLC system, easy for parameters adjusting

Touch screen with multiple language
https://*/product-automatic-weighing-packing-machine.html

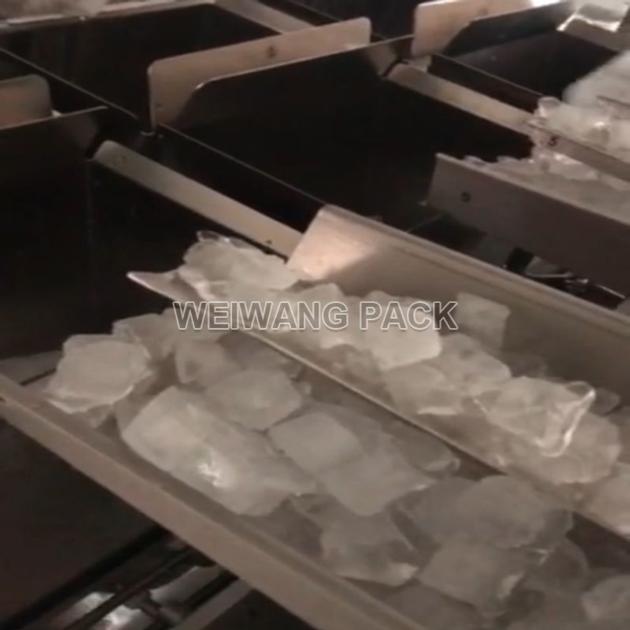

According to customer requirements, customized packaging ice, ice roller, ice, frozen food.
Type WW-320 WW-420 WW-520 WW-720 WW-1050 WW-1200
Packing speed 10-80 bag/min 10-70 bag/min 5-60bag/min 5-60bag/min 5-40bag/min 5-30bag/min
Bag Length 50-200mm 50-300mm(L) 80-370mm(L) 80-470mm(L) 100-570mm(L) 100-800mm(L)
Bag width 40-150mm 50-200mm(W) 80-250mm(W) 100-350mm(W) 180-450mm(W) 200-580mm(W)
The max. roll film width 320mm 420mm 520mm 720mm 1050mm 1200mm
Air consumption 0.65mpa 0.65mpa 1.0mpa 1.0Mps 1.0Mpa 1.0Mpa
Air consumption 0.25m3/min 0.3m3/min 0.4m3/min 0.4m3/min 0.5m3/min 0.5m3/min
Power 220V 50/60HZ 2Kw 220V 50/60HZ 2.2Kw 220V 50/60HZ 2.7Kw 220V 50/60HZ 3Kw 220V 50/60HZ 6kw 220V 50/60HZ 6kw
Overall size(L×W×H)
mm 1200×700×1520 1080×1300×1400 1650×1170×1700 1700×1270×1900 1750×1510×2100 2400×1800×(H) 2750
Weight 400KG 600Kg 800Kg 900Kg 1000Kg 1200Kg

Type 10 head weigher 14 head weiher Other type multihead weighr, please contact with us.
Max. Single Dump Cap. (g) 10-1000g 10-1500g
Weighing Accuracy 0.1-1.5g 0.5-2.0g
Max. Weighing Speed 65bpm 120bpm
Weigh Hopper Volume 1.6L/2.5L/5.5L
Control panel Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Rotary Top Cone
Driving system Step Rotor
Power Requirements 220V/50/60HZ
10A/1000W
Packing Dimension(mm) 1620(L)×1100(W)×1100(H)
Gross/Net Weight(kg) 420/400kg
