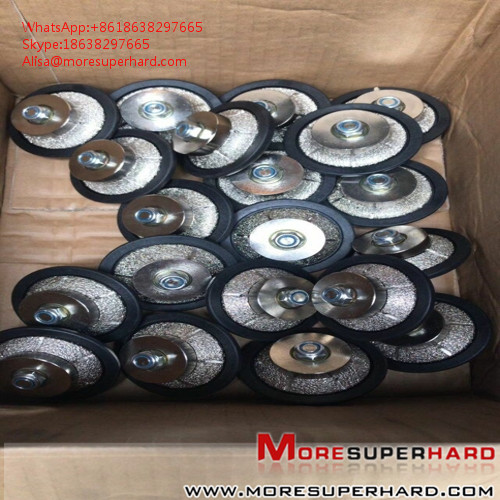

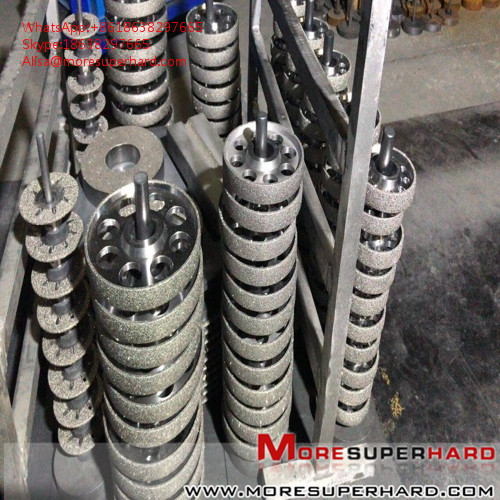

Vacuum welded diamond grinding wheel for all kinds of stone product [email protected]

Details
Vacuum brazed diamond grinding wheel for grinding cast iron ,alloy steels , grey iron , hard composite materials and metal profile in foundry industry

Feature
1:Name:Vacuum welded diamond grinding wheel
3:Material: Diamond
4:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing
5:Certification: ISO 9001:2008
6:Diamond grit: #100, #150, #200, #300, #400, or upon your request
7:Processed images: Cast Iron And Metal In Foundry
Product Feature introduction
1.high grinding efficiency
2.long work-life
3.less heat and jam generate in grinding


Advantages Of Vacuum Brazed Diamond Grinding Wheel:
1：High Efficiency. The Efficiency Is Improved By 30% For Grinding Cast Steel Surface,Compare To Conventional Resin Bond Wheel
2：Long Life Time. Up To 20 Times Longer Life Time Than Resin Bond Tools
3：Single Layer Of Fully Exposed Diamond Fused With Nickel At High Temperatures And Sharp Cutting
4：Never Need Dressing


Processing object and characteristic
Mainly used for all kinds of stone products，ceramic products，glass products，molding grinding，the cylindrical inner circle forming grinding，dry and wet amphibious，sharp and durable，the useing life is 2-5 times of ordinary electroplating tools，is the international advanced technology
Specifications of vacuum brazed diamond grinding wheel:
Model：vacuum brazed diamond grinding wheel

D(Mm) H（MM) T(Mm）

100 22.23 1.5-3

125 22.23 1.5-3

150 22.23 1.5-3

180 22.23 1.5-3

grain size: rough 25/30, 30/35, 35/40, finish 50/60

Others size and grit can be customized according to customers' requirement.



What is vacuum brazing?
Vacuum brazing refers to the workpiece heating in the vacuum chamber, which is mainly used for welding products with high quality and easily oxidized materials. The vacuum brazing furnace consists of pressure vessels with cylindrical side walls and doors, and the size and location of the doors are designed to seal one end of the cylindrical side walls. The workpiece handling system is mounted on the pressure vessel door to support the workpiece for heat treatment or brazing. The workpiece processing system includes a device for turning the workpiece during processing. The vacuum system can be connected to the workpiece so that the pressure inside the workpiece is lower than atmospheric pressure during the brazing process.



Advantages of vacuum brazing:
1. Vacuum brazing, without using solder, significantly improves the corrosion resistance of products, eliminates various pollution and pollution-free treatment equipment costs, and has good production safety conditions.
2. Vacuum brazing not only saves a lot of expensive metal solder, but also does not require complicated flux cleaning process, which reduces production cost.
3. The vacuum brazing solder has good wettability and fluidity, and can be used to weld more complicated and narrow channel devices.
4. Compared with other methods, the internal structure and clamping device of the furnace have a long life, which can reduce the maintenance cost of the furnace.
5. There are many materials suitable for vacuum brazing, such as aluminum, aluminum alloy, copper alloy, stainless steel, alloy steel, low carbon steel, titanium, nickel, Inconei, etc., which can be soldered in vacuum furnace. The designer determines the materials required according to the use of brazing devices, among which aluminum and aluminum alloy are most widely used.

Why choose our grinding wheel
Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered


If you have any questions, please contact us
