Vacuum brazed diamond drill Dry wet amphibious [email protected]

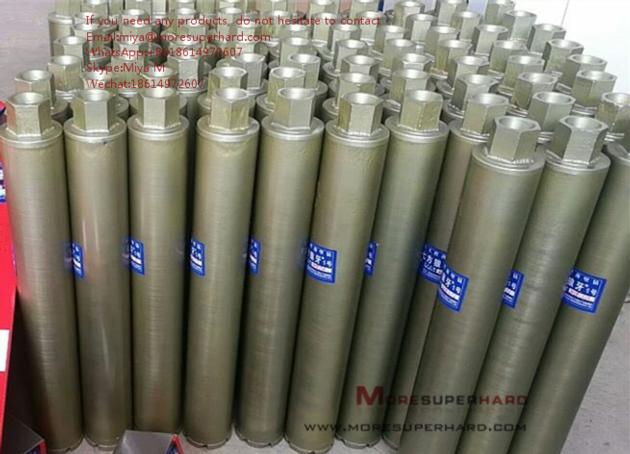

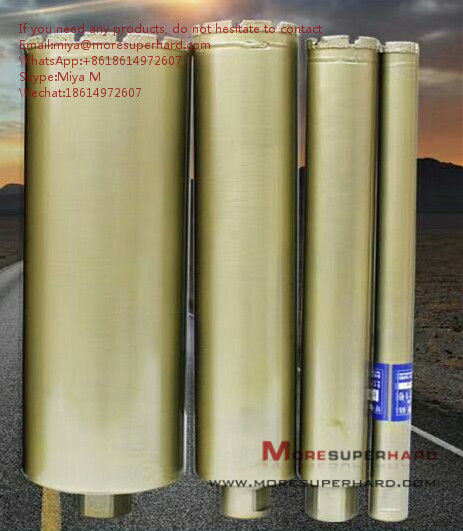

Name：Vacuum brazed diamond drill

Introduction：Brazing technology,high grade diamond, instead of laser welding and high frequency welding.

Application：Vacuum brazed diamond drill is widely used in Air Condition Drill, engineering drill,heavy wall holing ,street lump punch,lampblack machine drill and stair handrail.

Features ：*Drilling quickly, high efficiency
*Prolong the life
*Energy conservation and environmental protection.
*Dry and Wet amphibious
*Safe and durable
*fluency

Parameters of Vacuum brazed diamond drill：

Name Vacuum Brazed Diamond Drill
Color Gold
Body Integral Seamless Steel Tube
Tooth Profile Special Flat Tooth
Diameter 25-300mm
Length 370/450mm
Thickness Of Tips 3.2mm

Specifications：

Outer Diameter(mm) Segment No. Wrorking Length(mm) Connection Thread
18 Rim 100/170/200/300/450/500/1000 Reference Picture
20 Rim 100/170/200/300/450/500/1000 Reference Picture
22 Rim 100/170/200/300/450/500/1000 Reference Picture
25 Rim 100/170/200/300/450/500/1000 Reference Picture
28 Rim 100/170/200/300/450/500/1000 Reference Picture
30 Rim or 3, 4 100/170/200/300/450/500/1000 Reference Picture
32 Rim or 3, 4 100/170/200/300/450/500/1000 Reference Picture
34, 35 3, 4 100/170/200/300/450/500/1000 Reference Picture
38 4 100/170/200/300/450/500/1000 Reference Picture
41, 42 4, 5 100/170/200/300/450/500/1000 Reference Picture
45, 46 4, 5 100/170/200/300/450/500/1000 Reference Picture
49 5 100/170/200/300/450/500/1000 Reference Picture
51, 52 5, 6 100/170/200/300/450/500/1000 Reference Picture
56, 57, 58 6 450/500/1000 Reference Picture
61, 62 6 450/500/1000 Reference Picture
65, 66, 67 6 450/500/1000 Reference Picture
71, 72 6, 7 450/500/1000 Reference Picture
76, 77, 78 7 450/500/1000 Reference Picture
81, 82 7 450/500/1000 Reference Picture
87 7 450/500/1000 Reference Picture
91, 92 8 450/500/1000 Reference Picture
101, 102 8, 9 450/500/1000 Reference Picture
107, 108 8, 9 450/500/1000 Reference Picture
111, 112 8, 9 450/500/1000 Reference Picture
117 9 450/500/1000 Reference Picture
120, 121, 122 9, 10 450/500/1000 Reference Picture
125, 126, 127 10 450/500/1000 Reference Picture
131, 132 10, 11 450/500/1000 Reference Picture
142 11 450/500/1000 Reference Picture
151, 152 12 450/500/1000 Reference Picture
158 12 450/500/1000 Reference Picture
161, 162 12 450/500/1000 Reference Picture
171, 172 13 450/500/1000 Reference Picture
178 13 450/500/1000 Reference Picture
181, 182 13, 14 450/500/1000 Reference Picture
187 14 450/500/1000 Reference Picture
192 14 450/500/1000 Reference Picture
200, 201, 202 14, 15 450/500/1000 Reference Picture
212 15 450/500 Reference Picture
218 15 450/500 Reference Picture
220, 225 15 450/500 Reference Picture
227, 230 15 450/500 Reference Picture
250 16, 17, 20 450/500 Reference Picture
270 16, 18, 22 450/500 Reference Picture
300 16, 18, 19, 24 450/500 Reference Picture
320 18, 24 450/500 Reference Picture
350 20, 21, 22, 24 450/500 Reference Picture
400 22, 30 450/500 Reference Picture
450 24, 30 450/500 Reference Picture
500 26, 30 450/500 Reference Picture
550 28, 30 450/500 Reference Picture
600 30, 32 450/500 Reference Picture
Different connections and segment specifications are available upon request.


Please don't hesitate to contact me if you have any needs:miya AT moresuperhard.com
Our company also produces a series of diamond and CBN tools, welcome to consult and choose at any time
