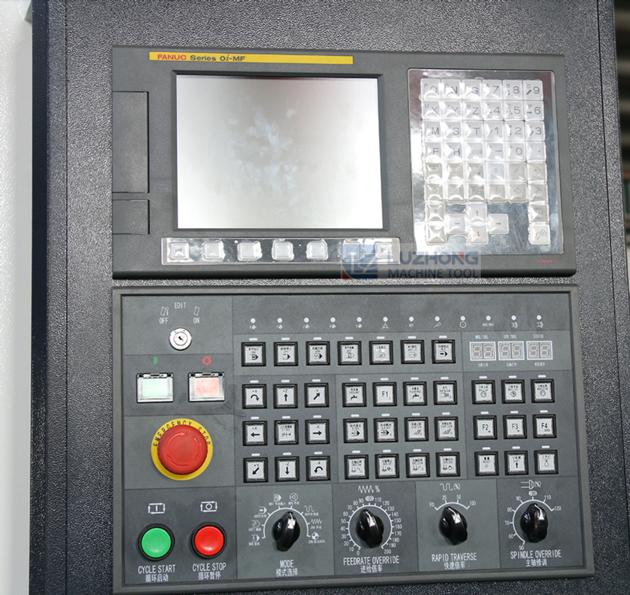

VMC850 CNC Vertical Machining Center

VMC850 CNC Vertical Machining Center
CNC Machining Center
CNC Machining Center Manufacturer China:Tengzhou Luzhong Machine Tool Co., Ltd
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
 More information you can views here

Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:

specifications unit VMC850
Table size mm 1000x500
X axis travel mm 800
Y axis travel mm 500
Z axis travel mm 500
Distance between spindle
center and column surface mm 571
Distance between spindle nose
and table surface mm 150-650
T slot 3-18*90
Spindle taper mm BT40
Max. spindle speed r/min 8000(10000 optional)
Main motor power kw 7.5
X/Y/Z axis servo motor torque N.M 15/15/18
X/Y/Z motor connection direct
X/Y/Z guide rail form 3 axis linear guide rail
Max.table load kg 500
Automatic tools changer 16 Armless type(optional:24 arm type)
Max.tool weight kg 8
Max. tool length mm 250/350
Max. tool diameter mm 100(Adjacent)/150(Apart)
X/Y/Z axis rapid traverse M/min 24/24/20
Cutting feed speed M/min 10
Position accuracy mm ¯0.005
Repeat positioning accuracy mm ¯0.003
Machine dimension mm 2800x2300x2700
Machine weight kg 5500
