VGA+ R/L TO HDMI Converter
| Price: | US$ 3 / Piece |
|---|---|
| Minimum Order: | one |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: | The Converter use a single VGA+R/L source,accessing to single HDMI1.1sink. The Converter allows one VGA+R/L device to be converted easily to one HDMI1.1 monitor or projector. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

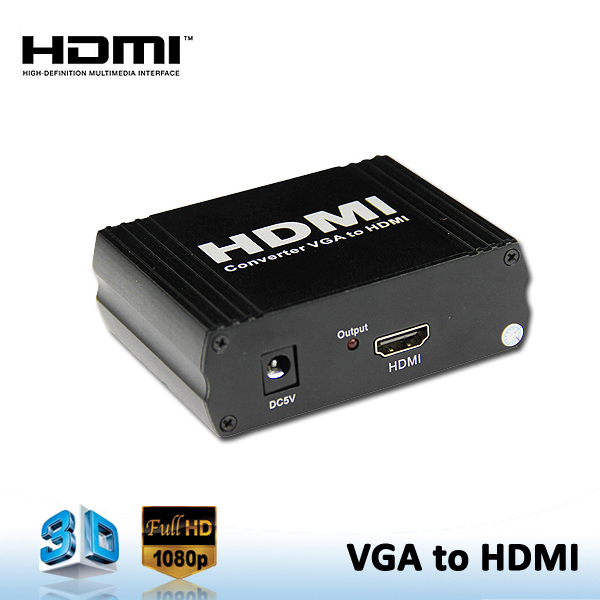

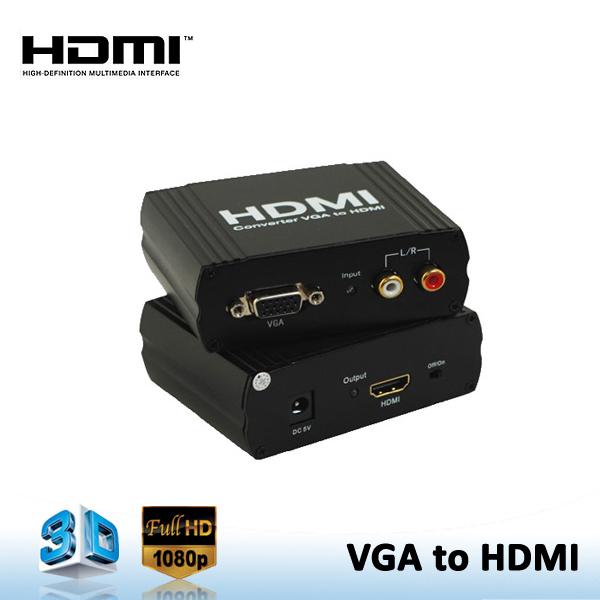

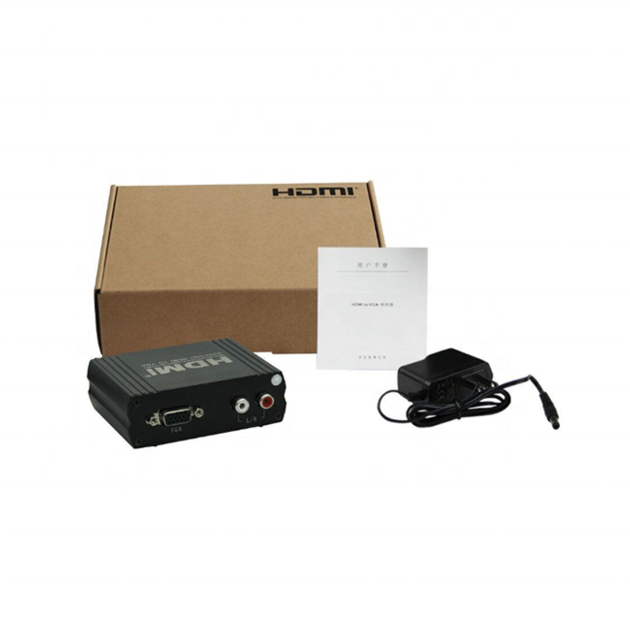

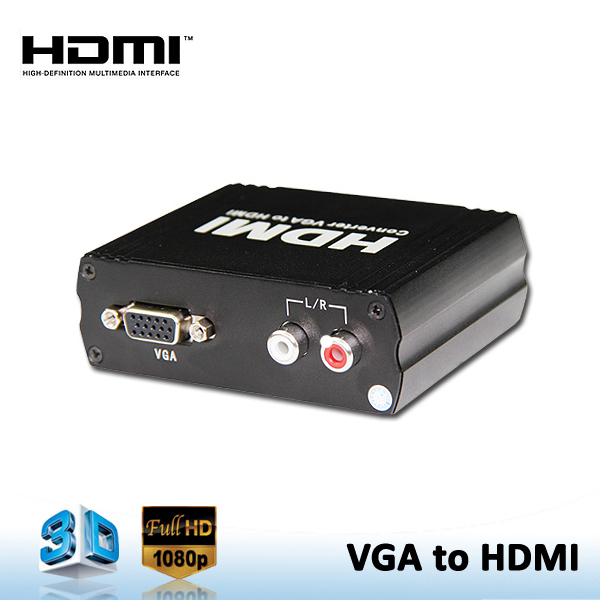

VGA+ R/L TO HDMI Converter
Introdution:

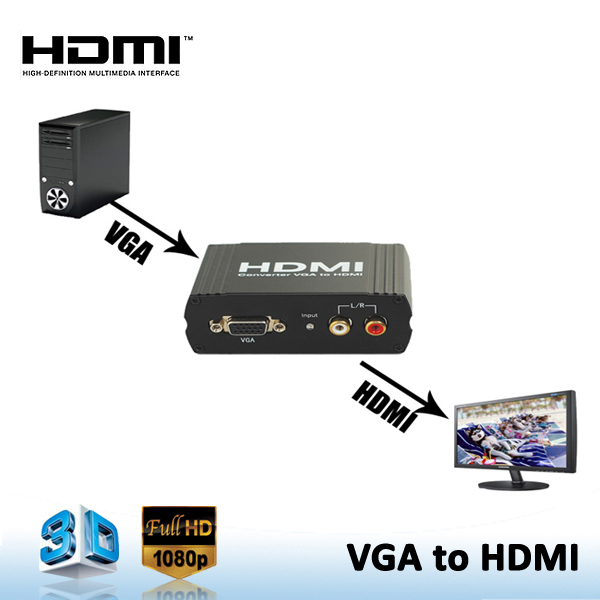

The Converter use a single VGA+R/L source,accessing to single HDMI1.1sink. The Converter allows one VGA+R/L device to be converted easily to one HDMI1.1 monitor or projector.
FEATURES:
One VGA+R/L input signal convert to one HDMI sink devices
Support video input : VGA analog
Support audio input : R/L analog
HDMI output : Support up to 1280x1024, same format as input
Support CEC
LED indication: when source or sink is working, LED relative to is light.
Support output up to 20metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/1A power supply
SPECIFICATIONS:
VGA Input: Support up to SXGA/SGA/UGA(50/60/75HZ)
Audio Input: R/L Analog
HDMI resolution: Support up to 1280x1024, same format as input
Max transmission bandwidth: 5.1Gbps
Input Video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Output cable distance: ≤20m AWG26 HDMI standard cable
Max working current: 600mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range : (-15 to +55®C)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 90x70x33(mm)
Weight: 155g
|
