Universal Stainless Steel Pipe Compensator Expansion Joint Syst

Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-Flex
Model Number: EH-810/810H
Type: Universal Expansion Joint
Material: Stainless Steel
Technics: Welding
Connection: Flange
Shape: Equal
Head Code: Round
Product Name: Universal Expansion Joint
Application: Absorb the movement
Nominal Bore: DN50-DN600
Movement: Axial:+-5mm; laternal:+-50mm
Working Pressure: 16bar,16bar,25bar..
Temperature: max to 1000℃
Flange Standard: JIS,ANSI,B,S,JB..
OEM or ODM: Allowed
Certificate: ISO
Standard: EJMA

Supply Ability
Supply Ability: 80000 Piece/Pieces per Year H.S Code:7302.29

Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case
No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Lead Time :Normally 20 Days; Depends on Customer's Requirement
Product Description
Bellows Expansion Joint With Stainless Steel 304 Carbon Steel Flange
It should be installed offset to absorb the movement. When installed, it must be at the fully extended length and at 90¤ to the line of movement. Tie tie rods can't be adjusted or removed to ensure the proper functioning of the unite.

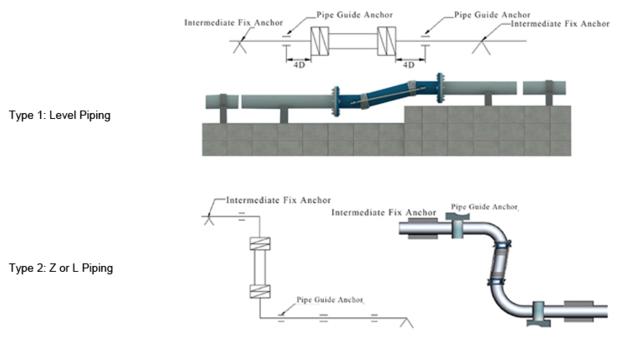

Application
1. One Plane System:
It can be instead of two hinged joints to absorb the movement
2. Two Planes System:
It can be instead of two gimbal joints. Maybe used in the offset pipe as shown

Construction
ITEM PARTS1 CONSTRUCTION MATERIAL REMARK
1 Bellows SUS304 SUS316/321
2 Flange SS400 SUS304/316/321
3 Tube End SGP SUS304
4 Tie Rods SS400 SUS304

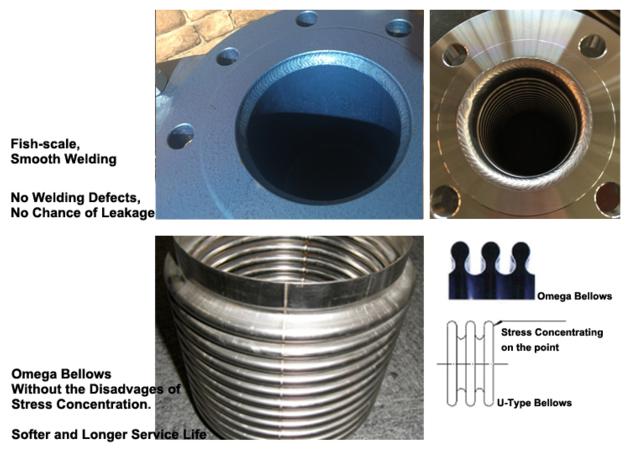

Features
1. Excellent Welding Technology, like a fish swimming in water.
2. Omega Bellows, More flexible and longer service life.

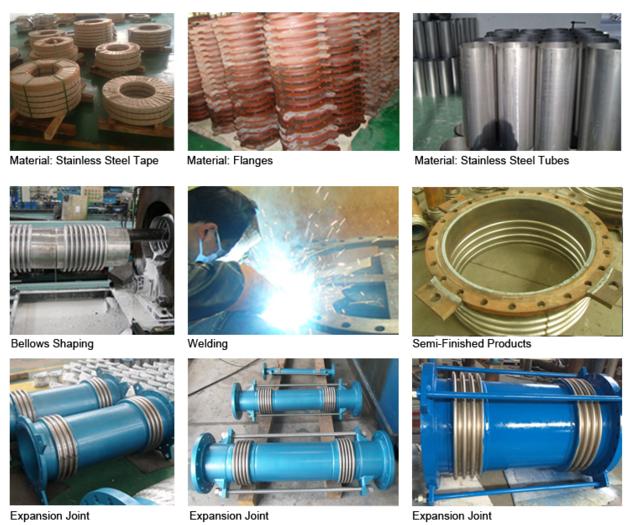

Production Process
Production Capacity
Flexible Sprinkler Hoses: 350,000pcs per Month
Flexible Joints/ Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...

Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
