Universal Bellows Joint for Pipe Connector Coupling

Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-flex
Model Number: EH-800H
Type: Lateral Movement Compensator Expansion Joint
Material: Stainless Steel, SUS304, 316, 321
Technics: welding
Connection: Flange
Shape: Equal
Head Code: Round
Size: DN15-DN2000
Temperature: Max.1000℃
Rated Working Pressure: 10bar, 16bar, 25bar,40bar, 60bar, 100bar
Lateral Movement: 25mm or According to Requirement
Flanges Standard: JIS, ANSI, DIN, BS, JB...
Design Standard: EJMA
Application: Lateral Movement Compensator Expansion Joint
Certificate: ISO
OEM/ODM: Allowed

Supply Ability
Supply Ability: 7000 Piece/Pieces per Month HS Code: 7307.99

Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case
No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Lead Time :Normally 20 Days; Depends on Customer's Requirement




Product Description
Metal Expansion Joint for Lateral Movement Compensator

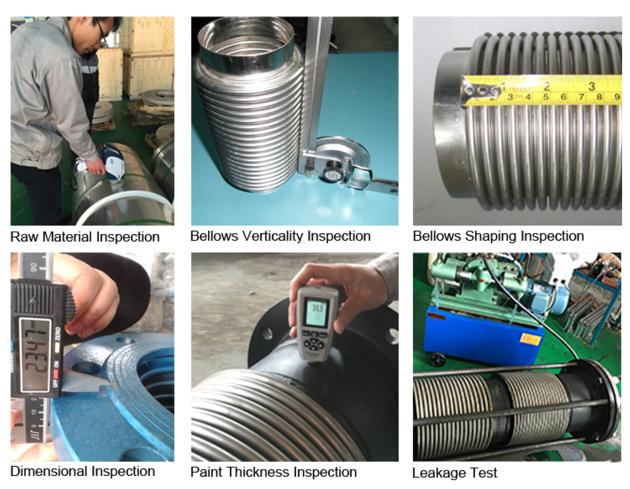

100% Tested Before Delivery
OMEGA Bellows, more flexible, longer service life
More than 40-year experience in manufacturing

It should be installed offset to absorb the movement. When installed, it must be at the fully extended length and at 90¦ to the line of movement. Tie tie rods can't be adjusted or removed to ensure the proper functioning of the unite.

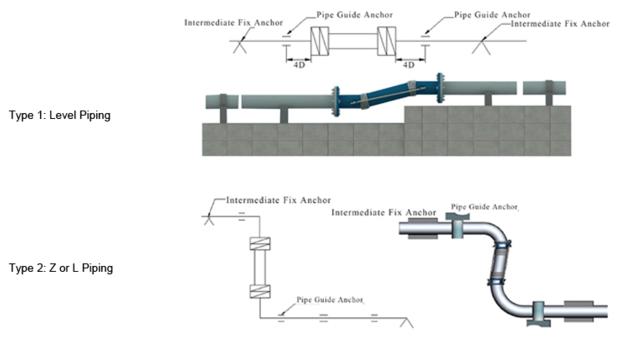

Application
1. One Plane System:
It can be instead of two hinged joints to absorb the movement
2. Two Planes System:
It can be instead of two gimbal joints. Maybe used in the offset pipe as shown.
Construction
ITEM PARTS MATERIAL REMARK
1 Bellows SUS304 SUS316/321
2 Flanges SS400 SUS304/316/321
3 Tube End SS400 SUS304/316/321
4 Tie Rods SS400 SUS304/316

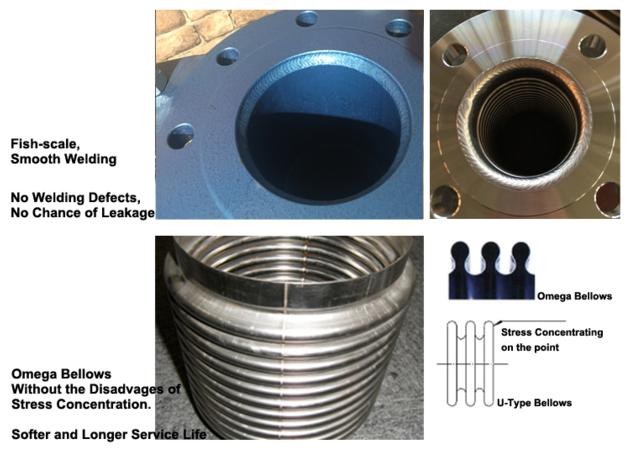

Features
1. Excellent Welding Technology, like a fish swimming in water.
2. Omega Bellows, More flexible and longer service life.

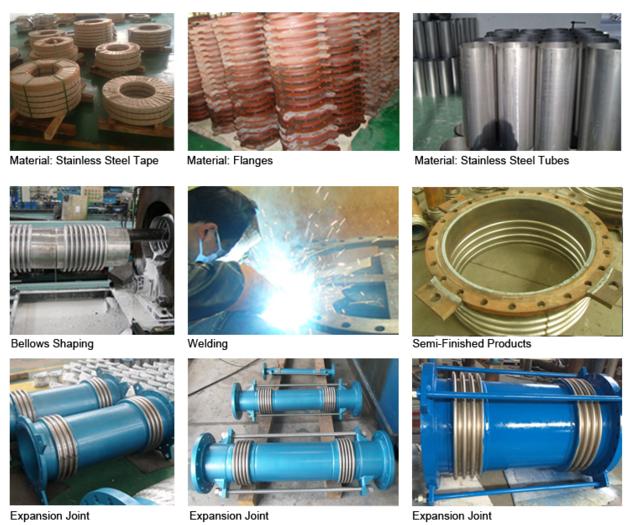

Production Process
Production Capacity
Flexible Sprinkler Hoses: 350,000pcs per Month
Flexible Joints/ Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...

Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
