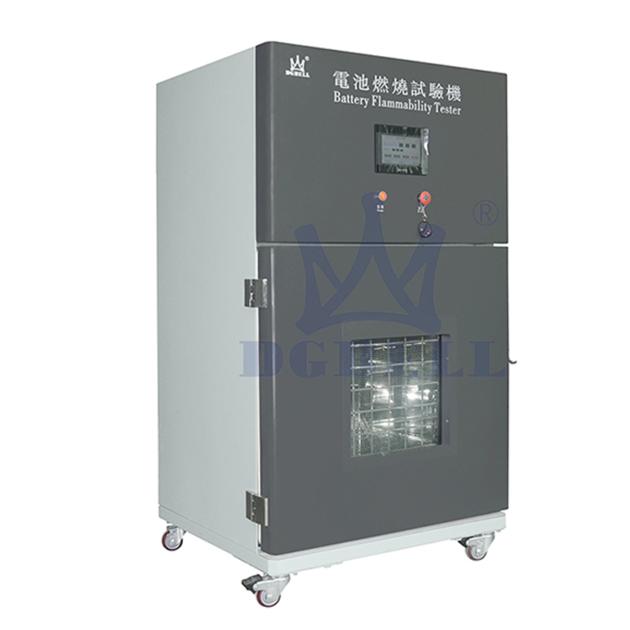

UL Standard Battery Burning Test Machine BE 8105 Battery Safety Test Equipm

Product Application
This machine applied for battery burning resistance testing.
This battery burning tester is necessary testing equipments for various battery
manufacturer, quality inspection & control department. With features of easy
operation, safety reliable, high accuracy it becomes ideal testing machine for
battery burning and ejection testing.
Standard Compliance
UL 1642,
UL2054,
GB31241
Technical Parameters
Burner
Bunsen burner，pipe inner diameter 0.375inch（9.5mm）length about 100mm
Flame Applicate Time
0~999.9s¯0.1s
Flame Continuous Time
0~999.9s¯0.1s
Flame Height
10~75¯2mm
Testing Bar Diameter
1/4 inch（6.35mm)×14 inch（355.6mm)
Test Cover Width
24 inch（610mm)×14 inch（355.6mm)，Octagonal
Test Cover Height
12inch （305mm)
Testing Aluminum Mesh Diameter
0.010 inch (0.25mm) 16hole×16hole

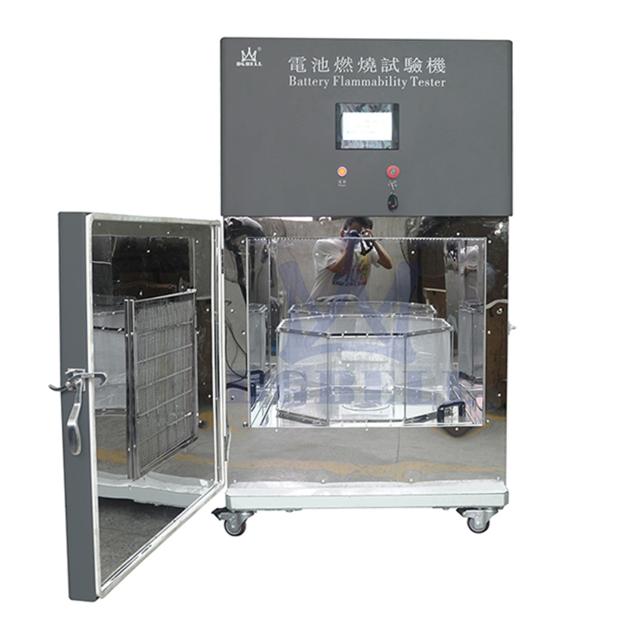

Octagonal stainless steel net cover
Distance between each other 2 feet (610mm),Octagonal net cover height1 feet
(305mm)
Testing Hole Diameter
102mm
Fire Ignition Device
Auto fire ignition
Display Method
PLC Touch Screen
Control Method
Remote control, whole test procedure fully automatic
Burning Gas Requirement
High purity liquefied petroleum gas（Customer Prepare）
Bottom
Installed with universal wheel
Observation Window
390 X 360mm(20mm thickness tempered explosion proof glass)
Timer
4 bytes display ,0~9999（Hour，Minute，Second switchable）
Inner chamber Material
SUS304 Stainless steel
Outer Chamber Material
Cold rolled powder painted

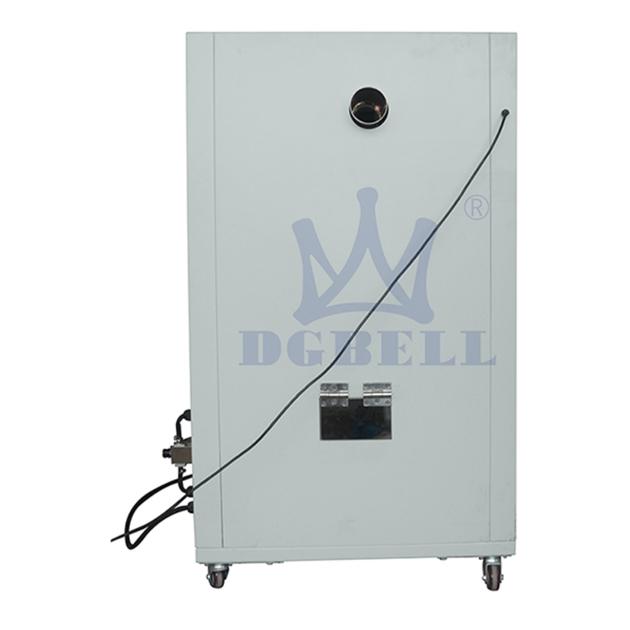

Smoke Extractor
Φ 150mm on back side
Overall Dimension
W940XD780XH1620 mm
Power Source
AC 220V 50HZ
Power
2.0KW

Testing Method
1. Fix the mesh on top of the burner with 38.1mm distance, each 25.4mm mesh
with
20 holes, steel wire diameter 0.43mm.
2. Ignition the burner, simultaneously observe the battery burning situation,
till
battery explode or burn out. And time the whole burning procedure.
