UKF206 Pillow Block Bearing 25mm 4 Bolts Cast Iron SUNBEARING

Product Description

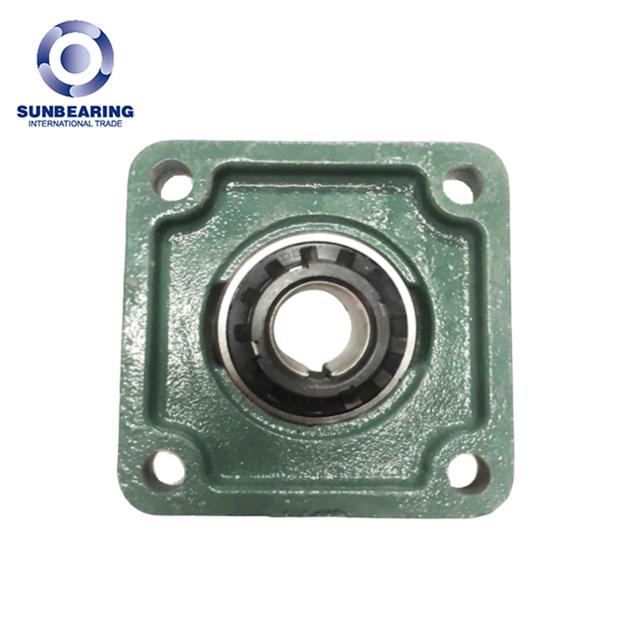

UKF206 pillow block bearing

Product Name Pillow Block Bearing UKF206
Structure Pillow block Bearing Seals Rubber Seal
Bore Size 25mm Bore Type Square
Outside Diameter 108mm Duty Type Medium Duty, Heavy Duty, and Others
I(mm) 18mm Shaft Fastening: Adapter Sleeve
Ring Material Chrome Steel Lubrication Type: Oil; Grease;
Rolling Element Material Chrome Steel Series: UKF
Cage Material Sheet Steel Housing Type Flange
Housing Material Cast Iron Max. Tightening Torques (Nm) For Bearing Insert 30
Certificate ISO9001:2008 Features Features include mounting surfaces parallel to shaft axes & elongated bolt holes
Colour Green Bearing Structure Spherical Surface Ball Bearing
The Number Of Row Single Weight (Reference) 1.3kgs
Clearance C2 C0 C3 C4 C5 Tolerance ABEC1 ABEC3 ABEC5 ABEC7
Bearing No. UK206 Housing No. F206

UKF206 Pillow Block Bearing Features

UKF206 pillow block bearing has a ball bearing insert UK 206, a cast iron bearing housing F 206 and a bearing adapter sleeve H2306
4-hole flange bearing design allows installation in a variety of applications and is suitable for very high radial loads
The bearing housing is made of cast iron and therefore inexpensive and robust
Fixing of the inner ring by concentric adapter sleeve
Static misalignments can be compensated up to an angle of 2¬
Two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter
Lubricated for life; under normal operating conditions relubrication is not required
Bearing housing with integrated lubrication hole
To protect against corrosion, the bearing housing is painted; the bearing insert and the mounting surface are treated with corrosion protection oil

UKF206 Pillow Block Bearing Drawing
UkF206 bearing drawingUKF206 pillow block bearing drawing
