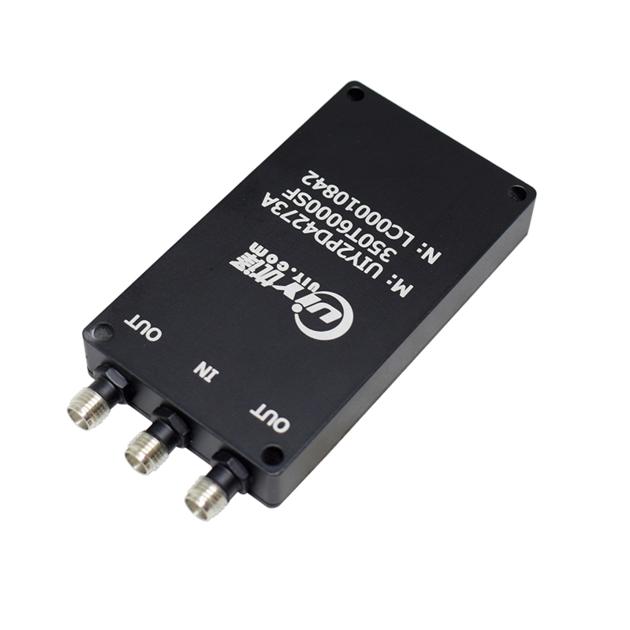

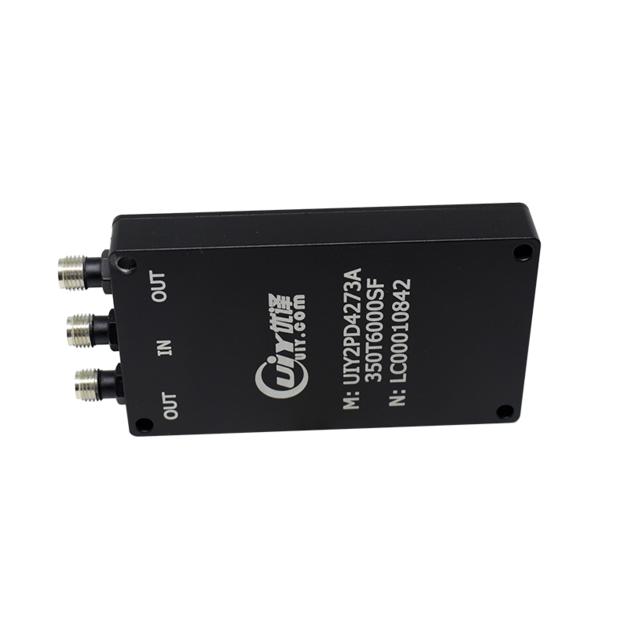

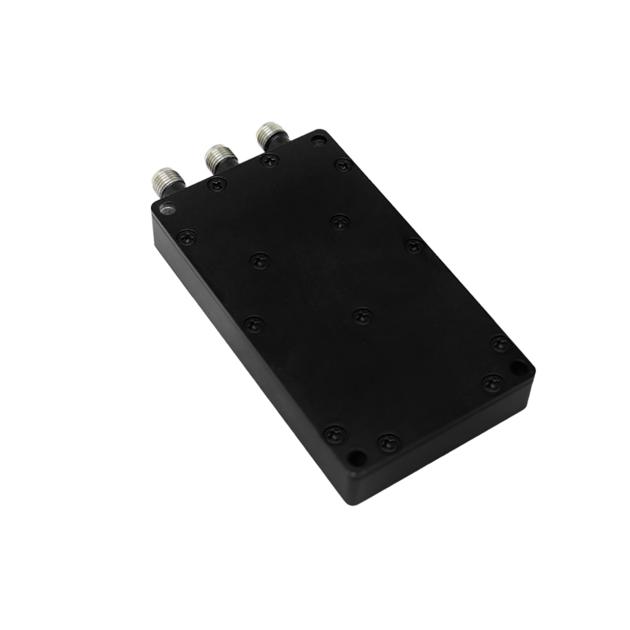

UHF RF 2 Way Power Divider 350~6000MHz
| Price: | US$ 150 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | UIY2PD4273A350T6000SF | Brand Name: | UIY |
|---|
| Certification: | ROHS, ISO9001, ISO14001 |
|---|---|
| Specification: |
Frequency range 70MHz to 40GHz.
Military, space and commercial applications. Low insertion loss, high isolation, high power handling. Custom design available upon request. |
Packaging & Delivery
| Packaging: | UIY Standard Carton For Standard Export Package D |
|---|---|
| Delivery/Lead Time: | 2 weeks |
| Production Capacity: | 1000pcs/month |

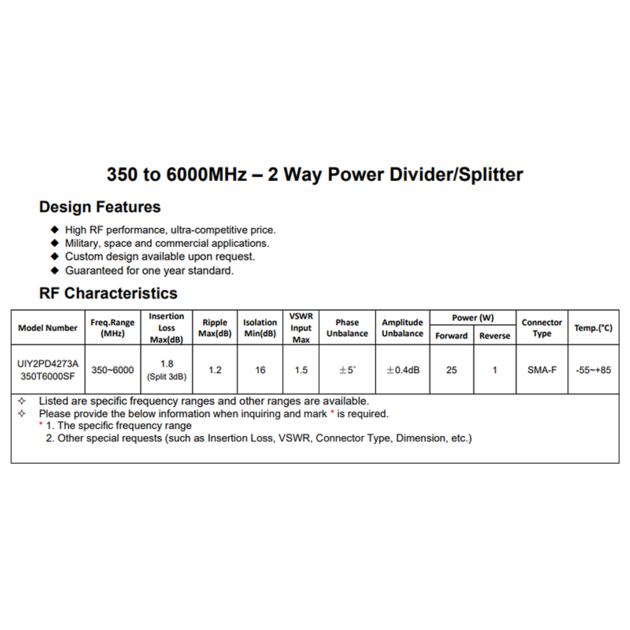

Product Description
Model Number:UIY2PD4273A350T6000SF
Frequency Range: 350~6000MHz
Insertion Loss:1.8dB (split 3dB)
Ripple:1.2
Isolation:16dB
VSWR:1.5
Phase Unbalance:¯5®
Amplitude Unbalanced: ¯0.4dB
Forward Power:25W
Reverse Power:1W
Connector Type: SMA-F
Temperature: -55~+85℃

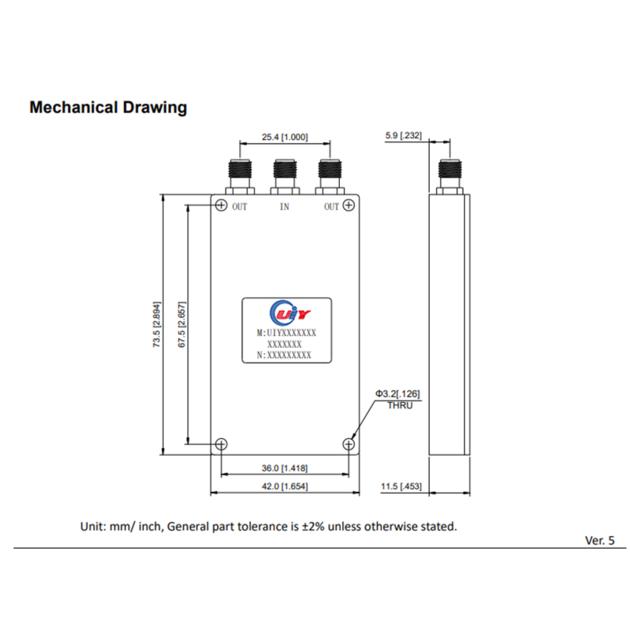

Dimension:42*73.5*11.5mm
UIY Inc. provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.
Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Military, Radar, Defense, Medical, Communications and Specialty Test industries.
UIY's product offerings include RF Isolators, RF Circulators, RF Filters, Power Divider / Splitter, Duplexer/Triplexer, Hybridge Combiner, Coaxial Termination, Coaxial Attenuator, Directional Coupler, Waveguide to Coaxial Adapter.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - Contract Manufacturing
|
