UF High packing density tubular membrane for wastewater treatment
| Price: | US$ 1000~4000 / Piece |
|---|---|
| Minimum Order: | 1pcs |
| Payment Terms: | TT |
| Port of Export: | Nanjing |
Product Details
| Model No.: | Brand Name: | KAIMI |
|---|
| Certification: | ISO9001, ISO28001,ISO 14001,etc |
|---|---|
| Specification: |
Product Description High packing density membrane module
Type Tubular membrane Membrane material PVDF Membrane tube diameter 8mm Pore size 30nm Max operation pressure 6.2bar under 49℃ Max pressure on permeate side 0. 2bar Max operation temperatureunder pH8 continuous 49℃; short term 54℃ pH scope under 49℃ continuous 2-10; short term 1.5-10.5 Max allowed total chlorine 200ppm underpH10-10. 5, 49 ℃ Model KMTB-M-FU-0403M (4",3m,6.4㎡) KMTB-M-FU-0603M（6",3m,15.2㎡） KMTB-M-FU-0803M (8",3m, 27.2㎡) KMTB-M-FU-1004M (10",4m,55㎡) Application landfill leachate, oily wastewater, heavy metal wastewater, high salt wastewater, etc. |
Packaging & Delivery
| Packaging: | Polywood case |
|---|---|
| Delivery/Lead Time: | 7 days for ready goods |
| Production Capacity: | 2000pcs per year |
Product Description
KAIMI MEMBRANE experience:

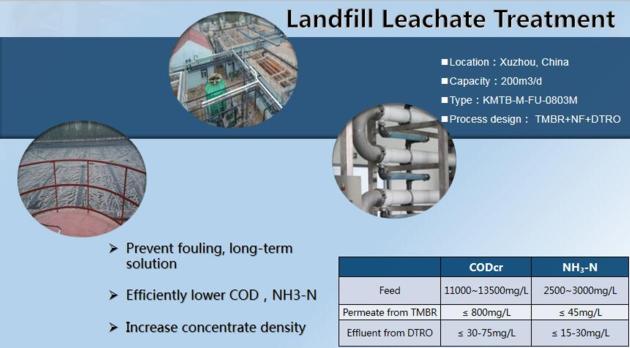

Kaimi has taken many project of landfill leachate treatment in China. It’s a mature technology, use our tubular membrane as external membrane bioreactor and combine it with biochemical process. It can remove 80%~90% BOD, COD and SS.

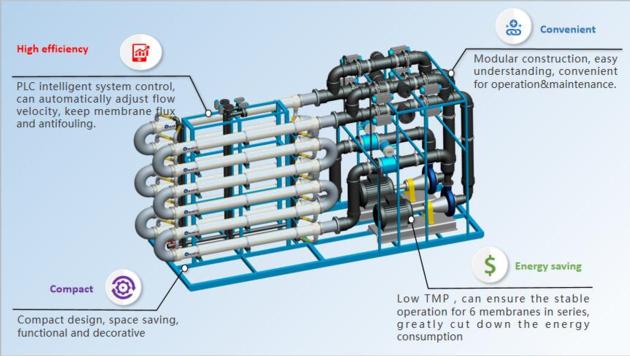

Tubular MBR/External MBR: External MBR technology replaces the conventional secondary sedimentation tank by the method of activated sludge. The wastewater was pumped into membrane module and is filtered by membrane under pressure, the permeate was sent to water tank or be discharged, and the retained sludge and concentrate are sent to Bio-Reactor tank.
Advantages of high packing density membrane system for landfill leachate treatment:
1.High flux, is 6 to 10 times more than common submerged MBR
2.Membrane with strong antifouling property and high regeneration performance
3.Backwash is not required, only periodic chemical cleaning, CIP is easy and convenient
4.Reliable operation, service life can be up to 6 years
5.Single membrane can be replaced separately; membrane is unbreakable, not easy to clog and has long service life
6.No discharged concentrate, water recovery rate is up to 100%
7.Independent running, high degree of automation, low cost of labor
8.Highly integrated equipment, small footprint, strong resistance to impact
9.Easy to maintain, low maintenance cost
If any interest or questions, be free to contact us. Thank you.
|
