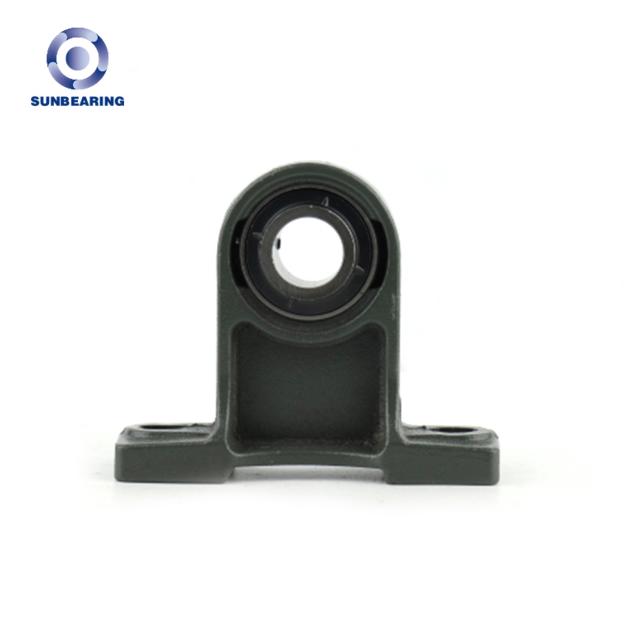

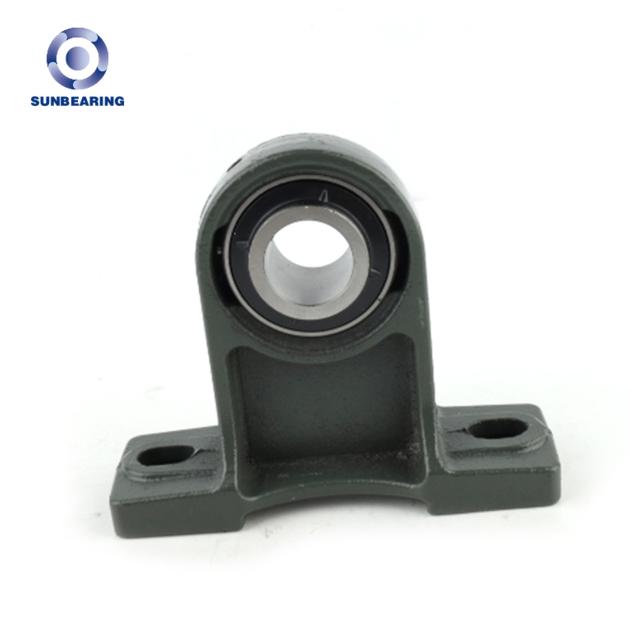

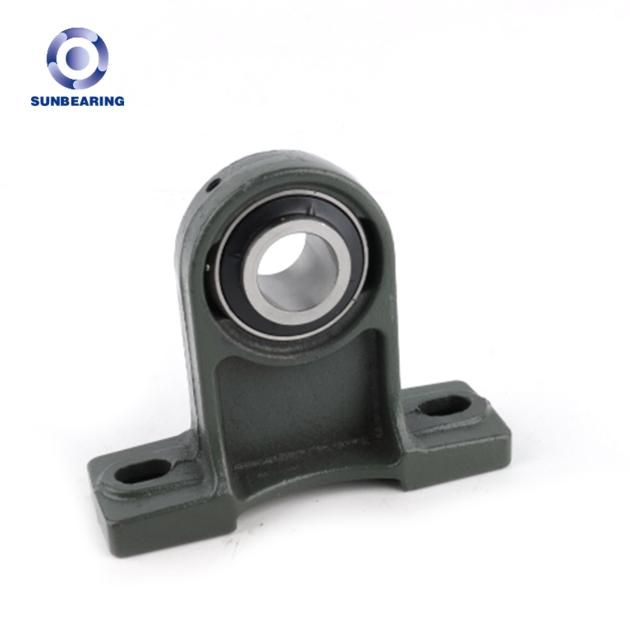

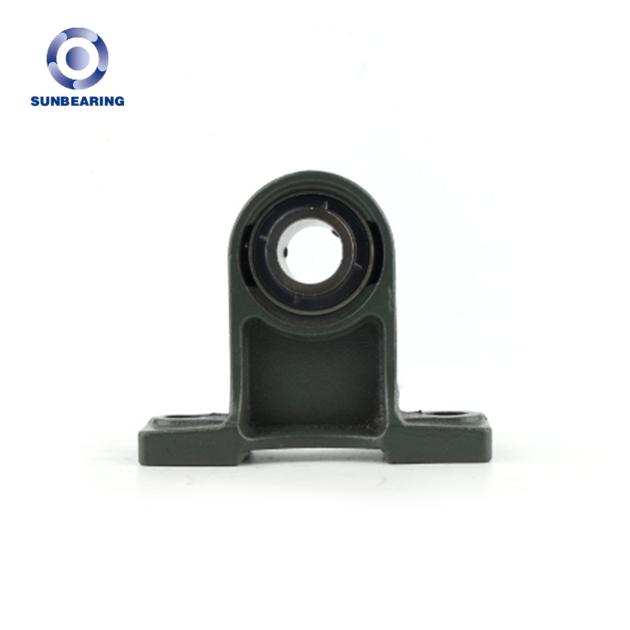

UCPH208 Pillow Block BearingGreen 40*100*49.2mm SUNBEARING

Product Description



Product Name

Pillow Block Bearing UCPH208

Structure

Pillow block Bearing

Seals

Rubber Seal

Bore Size

40mm

Bore Type

Round

Outside Diameter

100mm

Duty Type

Medium Duty, Heavy Duty and Others

Width

49.2mm

Operating Temperature Range:

-20 to +120¬C

Material

Plastic; Chrome Steel , Carbon Steel , Stainless Steel

Lubrication Type:

Oil; Grease;

Cage

GCR 15, Stainless steel etc.

Series:

UCPH

Certificate

ISO9001:2008

Features

They are able to compensate for initial errors of alignment.

Colour

Green

Bearing Structure

Spherical Surface Ball Bearing

The Number Of Row

Single

Weight

2.8kgs

Clearance

C2 C0 C3 C4 C5

Tolerance

ABEC1 ABEC3 ABEC5 ABEC7



1. Model: UC series, UCF series, UCFL series, UCT series, UCP series , and etc.

2.Application: Mining industry, Metallurgy, Textile, and etc.

3. Description: Pillow block bearing is a bearing unit that combine the rolling bearing and bearing seating together. Most insert bearings make the outer diameter a sphere. The structure varies in form and easy in installation. Also this kind of bearing has good versatility and interchangeability. It can easily work in severe environment.

systems, photo & film processing machinery, spin machine,dying & printing machinery,etc.
