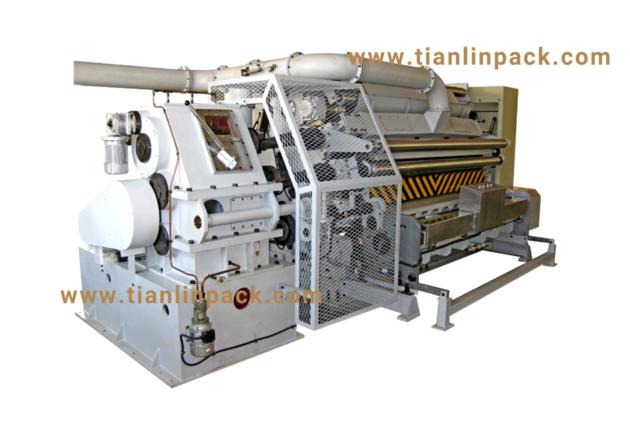

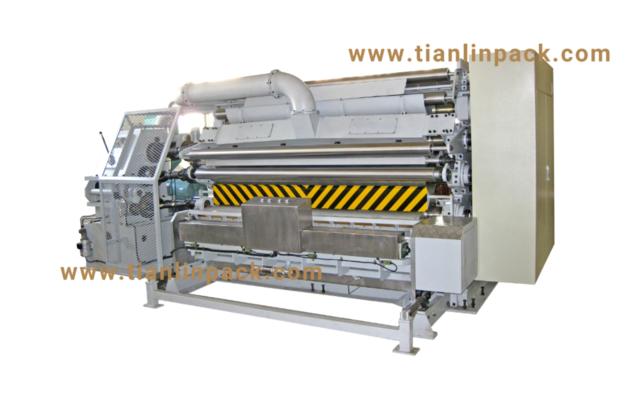

Twin Facer

*Two (2) sets of corrugating rolls (A – B – C – D – E – F ) are incorporated in one machine.
*One flute unit is working while another is warming up.
*Fastest flute change. The flute change can be performed in about 3 minutes.
*Two (2) glue applicator units, one (1) pressure roll.
*Vacuum suction system with negative pressure provides perfect flute shape.
*Individual driving gear box improves running stability.
*The corrugating roll is made of special alloy steel with grinding process and induction hardened with of hardness HRC55-58;.
*Auto-circulating glue feeding system is provided, motorized glue application amount.
*The flute formation is hydraulic controlled, glue application is pneumatic controlled.
*Main bearings are all lubricated with special grease to provide outstanding sealing performance and reliable lubricating.
*Easy operation by the central control desk incorporated with a touch screen can display:

-Corrugator speed
-Twin facer speed
-Glue unit move in-out air pressure
-Glue application gap
-Corrugating roll / pressure roll temperature (Optional)
