Tungsten Carbide Supported Diamond Die Blanks used to wire drawing [email protected]

name: diamond die blanks
Brief Introduction: Polycrystalline diamond (PCD) core integrally bonded to a tungsten-carbide-supported ring which in turn enhances strength of die blanks.
application: wire drawing

Details
Descriptions of Tungsten Carbide Supported Diamond Die Blanks:

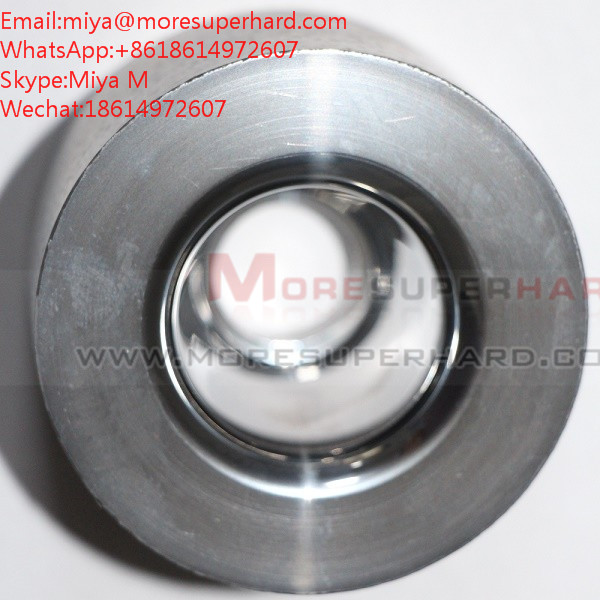

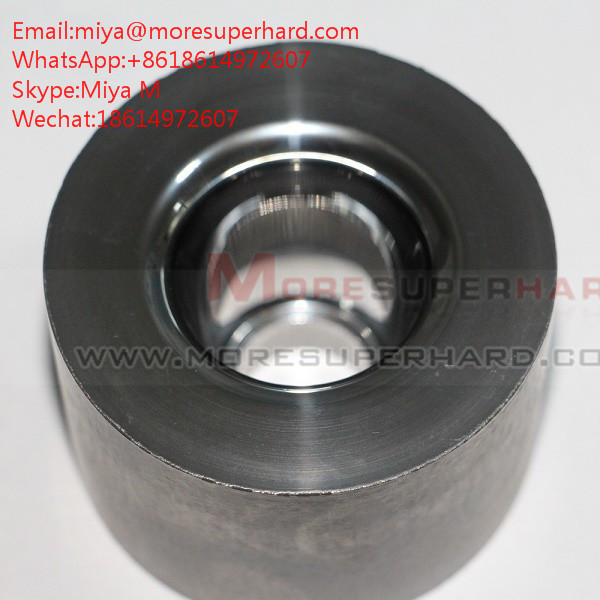

Tungsten carbide supported diamond die blanks is manufactured by means of cold pressing insertion. Polycrystalline diamond (PCD) core integrally bonded to a tungsten-carbide-supported ring which in turn enhances strength of die blanks. All blanks contain metal catalyst in PCD structure. These features give the products stronger ability to withstand wire drawing with high intensity.
Features of Tungsten Carbide Supported Diamond Die Blanks:
* Special design of taper shape makes the tungsten carbide supported diamond die blanks easy to distinguish between the inlet and the outlet.
* The alloy ring can protect the material to enable it to bear larger impact.
* The large external diameter of the alloy ring can provide enough centripetal bearing force for diamond&enough resisting force against wire drawing.
Specifications of Tungsten Carbide Supported Diamond Die Blanks:

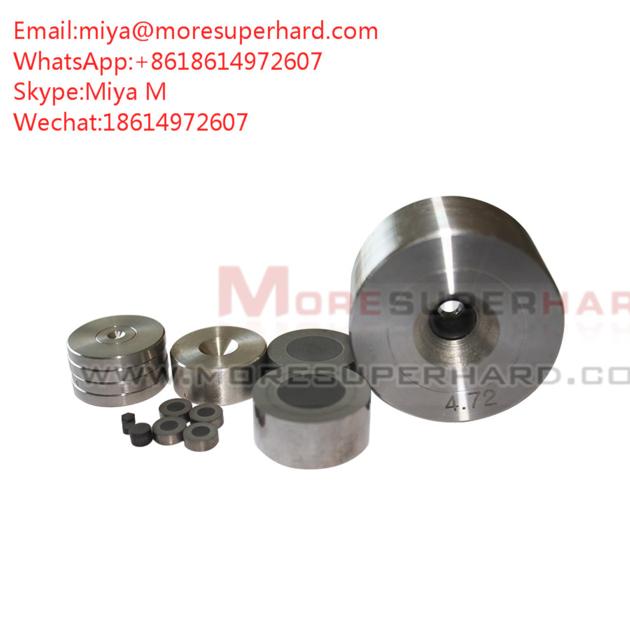

ADDMA code Product code Total blank diameter (mm) Diamond diameter (mm) Diamond thickness (mm) Maximum recommended hole size (mm) Grain sizes available (um)
D12 T4015 8.12 4.0 1.5 1.0 5,10,15,25,50
D15 T4023 8.12 4.0 2.3 1.8 5,10,15,25,50
D18 T4029 8.12 4.0 2.9 2.3 5,10,15,25,50
D21 T7040 13.65 7.0 4.0 3.5 5,10,15,25,50
D24 T7053 13.65 7.0 5.3 4.6 5,10,15,25,50
D27 T13086 24.13 13.0 8.6 6.1 10,15,25,50
D30 T130116 24.13 13.0 11.6 7.6 10,15,25,50
D31 T150120 24.13 15.0 12.0 8.0 25,50
D33 T150150 26.80 15.0 15.0 11.0 25,50

Note:
1. Die blanks must be cased below 650℃
2. ADDMA: American Diamond Die Manufacturers Association.

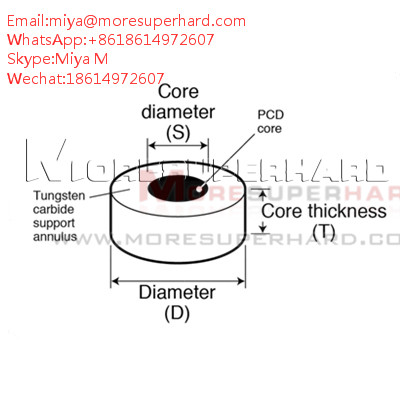

3. D: Total Blank Diameter d: Diamond Diameter T: Diamond Thickness
4.  Maximum recommended die size for soft nonferrous wire. Hard wire diameter normally should not exceed 65% of this diameter.

Please don't hesitate to contact me if you have any needs:miya AT moresuperhard.com
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
