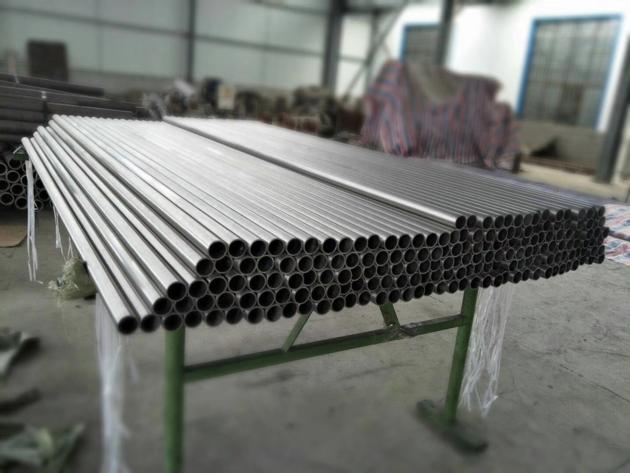

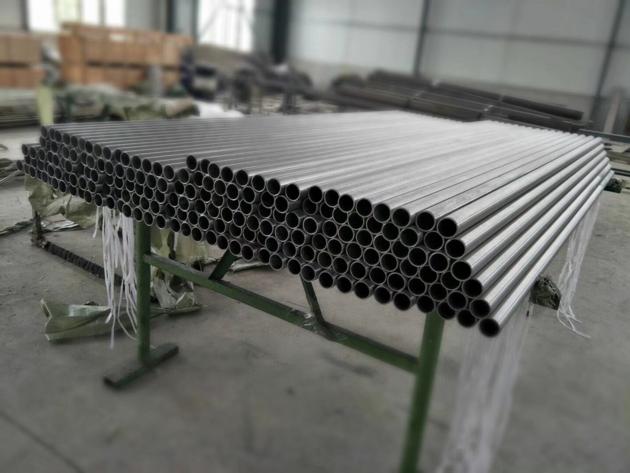

Titanium Welded Tube ，Titanium Tube，Titanium pipe,Titanium Square Tube

1. Introduction
Welded pipe production technology is simple, high production efficiency, varieties and specifications, equipment investment is less. The strength of spiral welded pipe is generally higher than that of longitudinal welded pipe. The welded pipe with larger diameter can be produced with narrower billet, and the welded pipe with different diameters can be produced with the same width of billet. The general strength is lower than seamless titanium pipe.
2. Materials & standards
Materials Grade 1, Grade 2, Grade 5, Grade 7, Grade 9, Grade 12
Standard Alloy titanium Gr.1,Gr.2
ASTM B861, ASTM B862, ASTM B337, ASTM B338 and ASTM 4942 Gr.5(Ti-6Al4V),Gr.7(Ti-0.2Pd),
Gr.9(Ti-3Al2.5V),Gr.12(Ti-0.3Mo-0.8Ni)
Technique Hot forging, hot rolled, cold rolled
States Annealed (M)
Shape Round, square, coiling
Surface Pickling or Bright
3. Characters
Low Modulus of Elasticity
Good thermal properties
Nonmagnetic and Non-toxic
Excellent Bearing to cryogenic property
Good resistance to effect of heat
Excellent Corrosion Resistance
Low Density and High Strength
4. Physical Properties
Grade State Tensile strength(min) Yeild strength (min) Elongation (%)
Ksi MPa ksi MPa
GR 1 （M）Annealed 35 240 20 138 24
GR 2 （M）Annealed 50 345 40 275 20
GR 5 （M）Annealed 130 895 120 828 10
GR 7 （M）Annealed 50 345 40 275 20
GR 9 （M）Annealed 90 620 70 438 15
GR 12 （M）Annealed 70 438 50 345 18
5. Production specifications
Types OD (Outside Diameter)
(mm) Wall Thickness
(mm) Length
(mm)
Welded Tubes 19.0-630.0 0.5-10.0 1000~15000mm
Note: Non-standard sizes are also available.
6. Delivery
We can deliver the Titanium products according to the stock status, usually 3-25 days.
7. Packing Details
Packed with wooden case, cardboard case or according to the requirements of customers
