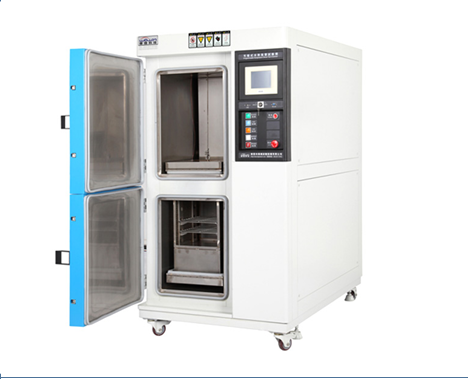

Thermal Shock Chamber
| Price: | US$ 1 |
|---|---|
| Minimum Order: | |
| Payment Terms: | CIF |
| Port of Export: | Dongguang |
Product Details
| Model No.: | WE - TST - 050 - B | Brand Name: | WEWON ENVIRONMENTAL CHAMBERS CO., LTD |
|---|
| Certification: | |
|---|---|
| Specification: |
Model Desc WE-TST-027-B WE-TST-050-B WE-TST-080-B WE-TST-150-B
Voluem Size 27L 50L 80L 150L Interior Dimension (W×H×D) 300*300*300mm 360*350*400mm 500*400*400mm 600*500*500 Exterior Dimension (W×H×D) 900*1670*1260mm 1200*1750*1860mm 1330*1800*1860mm 1430*1900*2000mm Structure Two/Three Zones Two/Three Zones Two/Three Zones Two/Three Zones Maximum Sound Level 55 dBA 60 dBA 65 dBA 65 dBA Electric Current 35A max 55A max 78A max 120A max Cooling System Air Cooling Water Cooling Air Cooling Water Cooling Temperature Range -70¬~200¬C -70¬~200¬C -70¬~200¬C -70¬~200¬C Temperature Fluctuation 0.5¬C 1.0¬C 1.0¬C 2.0¬C Humidity Range 40～95%RH 40～95%RH 40～95%RH 40～95%RH Preheating Temperature Limit 200¬C 200¬C 200¬C 200¬C Heating Rate 0¬C~200¬C/30 min 0¬C~200¬C/30 min 0¬C~200¬C/30 min 0¬C~200¬C/30 min Precooling Temperature Limit -70¬C -70¬C -70¬C -70¬C Cooling Rate 0¬C~ -70¬C/90 min 0¬C~ -70¬C/90 min 0¬C~ -70¬C/90 min 0¬C~ -70¬C/90 min Temperature Recovery Time In 10 min In 10 min In 10 min In 10 min Test Area Bearing 50 Kgs 50 Kgs 50 Kgs 80 Kgs Shelf Bearing 20 Kgs 20 Kgs 30 Kgs 30 Kgs Setting Range Temperature: -100¬C~200¬C TIME:OHIM~999h CYCLE:0 ~9999 Output Mode PID+SSR (control method) PID+SSR (control method) Power supply AC 220V, 230V 50/ 60 Hz AC 380V 10％, 50/ 60 Hz Gross Weight 350 Kgs 475 Kgs 650 Kgs 950 Kgs |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Thermal shock chamber is used to test most commercial products to see how they withstand drastic temperature changes. Simply to say, A thermal shock chamber will subject a product to the most extreme temperature conditions, instantly.
The purpose of testing a product under these circumstances by the thermal shock test chamber is to observe changes in the products characteristics and check for failure occurrence of different materials and thermal expansion coefficients. This thermal shock chamber are prohibited to flammable explosive easily to volatile substances sample test or storage, corrosive substance sample test or storage, biological sample test or storage, strong electromagnetic emission source sample test or storage.
thermal shock chamber
Quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
The Three-Box Type Thermal Shock Chamber (WE-TST-080-B) Related Features:
● Thermal shock chamber divided into three zones: High temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
● Using touch-control graph control as operation interface, easy to operate.
● Use wind route conversation to shock way to distribute temperature to test zone for cold shock measurement.
● For high or low temperature shock, max. Time is up to 999H, and max. Circulation cycles are 9999 times.
● The system can be used for automatic Circulation Shock or manual selective shock.
● Can entering normal temperature. RS-232 and RS-485 communication.
● The thermal shock testing chamber adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
|
