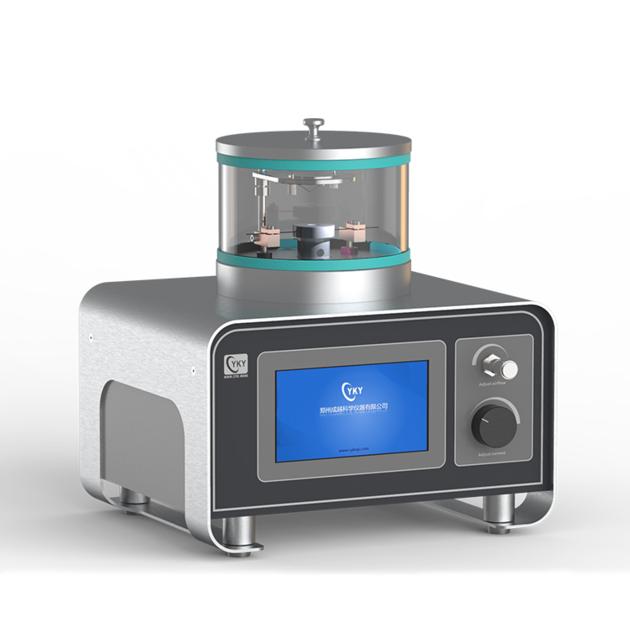

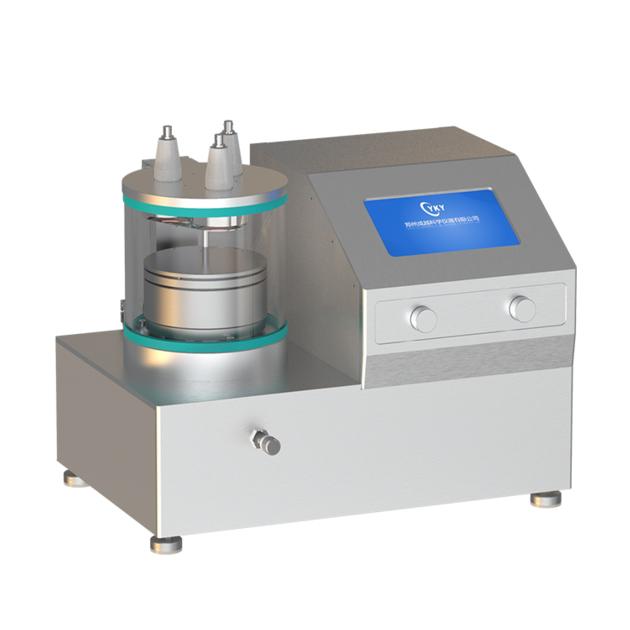

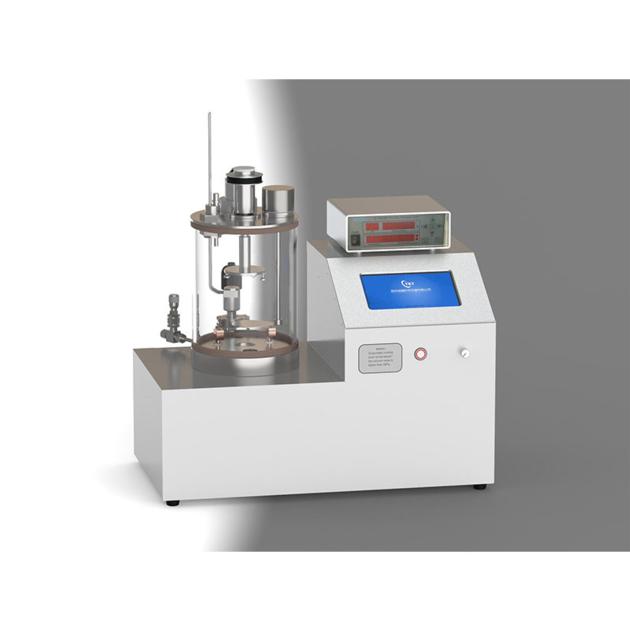

Thermal Evaporation Coating Machine for Metal and Partial Organic Evaporation and Coating
| Price: | US$ 8000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Others |
| Port of Export: | Zhengzhou, Shanghai, Qingdao, etc. |
Product Details
| Model No.: | CY-EVP180G-LV | Brand Name: | CYKY |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Small evaporation coating machine Sample Stage Size φ80mm Distance to the evaporation source 20mm~50mm adjustable DC sputtering head evaporation source Tungsten wire basket Max Temperature 1700℃ Thermal couple S type Thermal couple Vacuum Chamber Chamber Size φ180mm×100mm Watch Window Omnidirectional transparency Chamber Material High purity quartz opening mode Top cover removable Vacuum System Mechanical Pump Rotary vane pump Pumping connector KF16 vacuum measurement resistance gauge Air exhaust connector KF16 Ultimate vacuum 1.0E-1Pa Power Supply AC;220V 50/60Hz Pumping rate Rotary vane pump：1.1L/S Other Supply Voltage AC220V,50Hz Overall size 360mm×300mm×470mm Total Power 800w Total Weight 15kg |
Packaging & Delivery
| Packaging: | Standard export wooden box packaging |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 100 Sets/Month |
Product Description
This is a small evaporation coating machine. The evaporation temperature is from 200 ℃ to 1700 ℃, using tungsten wire basket as evaporation source. The evaporation source coat is high purity alumina crucible. The distance between sample stage and evaporation source is adjustable. The device has a high precision temperature control system, using the cycle heating method, can stably evaporate metal and some organic matter. Using high purity quartz cavity as vacuum chamber, coating process can be seen completely. The instrument is equipped with bipolar rotary vane vacuum pump, which can quickly reach the vacuum degree of 1.0E-1pa and meet the vacuum environment required by most evaporation and coating experiments. This instrument is suitable for evaporation and coating most of the metal and some organic materials film. It has compact structure and small size, which is a cost-effective laboratory coating equipment. Evaporation and coating most of the metal and part of the organic material film.
|
