Thb Cylindrical Roller Thrust Bearings 81230-M-580mm*320mm*155mm

Product Information:
Axial cylindrical roller bearings 81230-M
Bearing number : 81230-M
Size (mm) : 150x215x50
Brand : RORKS
Bore Diameter (mm) : 150
Outer Diameter (mm) : 215
Width (mm) : 50
Weight: 7.17kg

Product application:

Heavy machinery, high power marine gearboxes, oil rigs, vertical motors and other machinery

THB Cylindrical roller thrust bearings are designed to accommodate heavy axial loads and impact loads. They must not be subjected to any radial load. The bearings are very stiff and require little axial space.

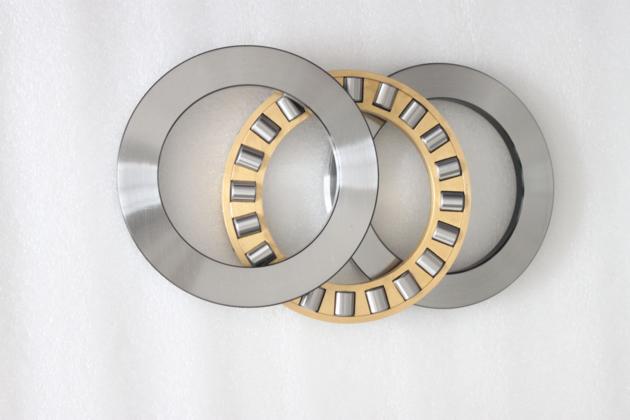

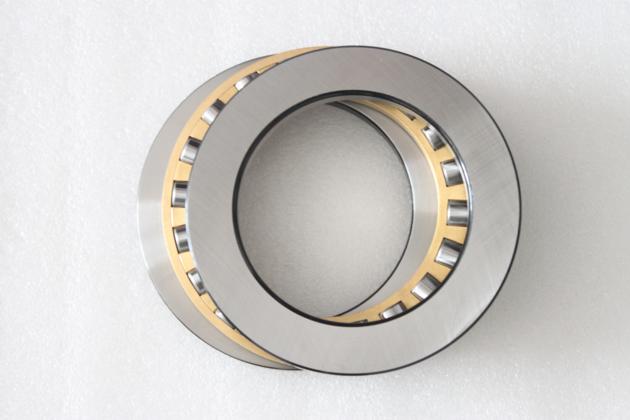

Axial cylindrical roller bearings comprise axial cylindrical roller and cage assemblies K, housing locating washers GS and shaft locating washers WS.

The bearings have very low axial section height, high load capacity, high rigidity and can support axial forces in one direction.

Each parts can be purchased separately.

Bearings 811, 812 are single row bearings , bearings 893, 894 are double row bearings

The cages can be made in plastic or brass.
