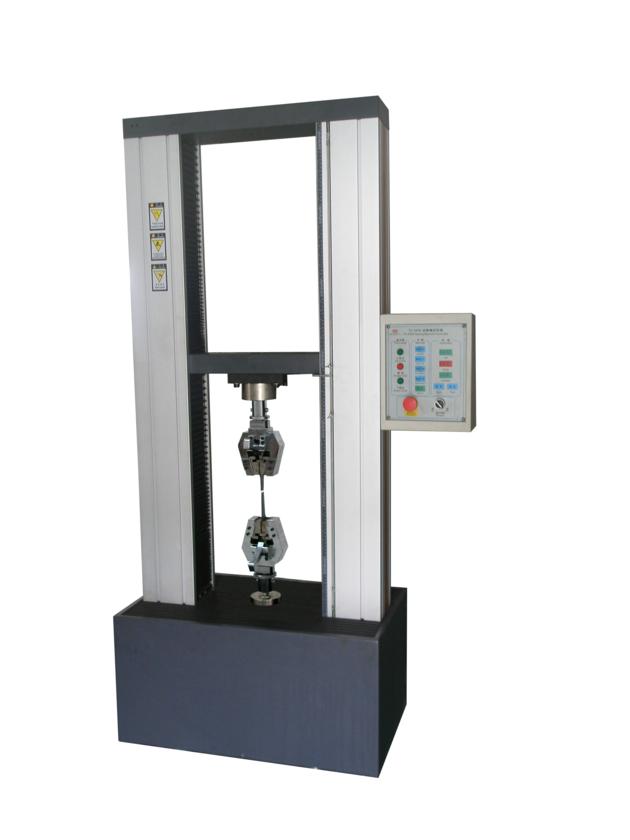

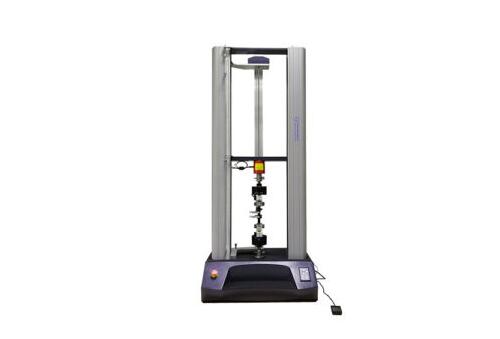

Tensile Tester TF001

Tensile Tester TF001, also known as Tensile Strength Tester TF001, universal testing machine (UTM), universal tensile testing machine, etc.

The Tensile Tester TF001 is used to test the performance of various materials under tensile, peel, compression, bending, shear, tear, etc.

It is suitable for textiles, rubber, laminated films, packaging materials, pipes, woven tapes, leather, shoe materials, composite materials, paper, etc. With different fixtures, the tensile tester can be used to test different materials and kinds of tests.

QINSUN is a well-known tensile testing machine manufacturer in the industry and currently sells its products to more than 60 countries and regions worldwide.

The Features of Tensile Tester TF001

1. High testing accuracy, force accuracy ≤ 1%, high test repeatability

The screw is high precision ball screw without backlash, which can do high-precision tests,

and the surface quenching hardness of the screw is high, so the service life can reach decades.

2. Designed for 6 different mechanical tests

tensile, compression, bending, tearing, shearing, and peeling tests.

3. Applicable for 26 international standards

ISO3377, ISO 13935, ISO 13937, ISO 20932, ISO 4674, ASTM 5034, ASTM D4964-96 GB/T 3917.5-2009, FZ/T 01030-2016, etc.

4. We use 16 test parameters, for a more comprehensive test presentation

Displacement, maximum force, elongation, stress, maximum stress, bending stress, speed, force width, thickness, etc.

5. Stable testing process

Equipped with a switchable pneumatic tensile fixture, there will be continuous sample tightening force

to reduce sample slippage when conducting the test.

6. Multiple safety settings

We have a built-in intelligent main power supply, a displacement alarm system,

an overload and emergency stop system and up and down stroke limiting sensors, which keep your equipment safe and stable.
