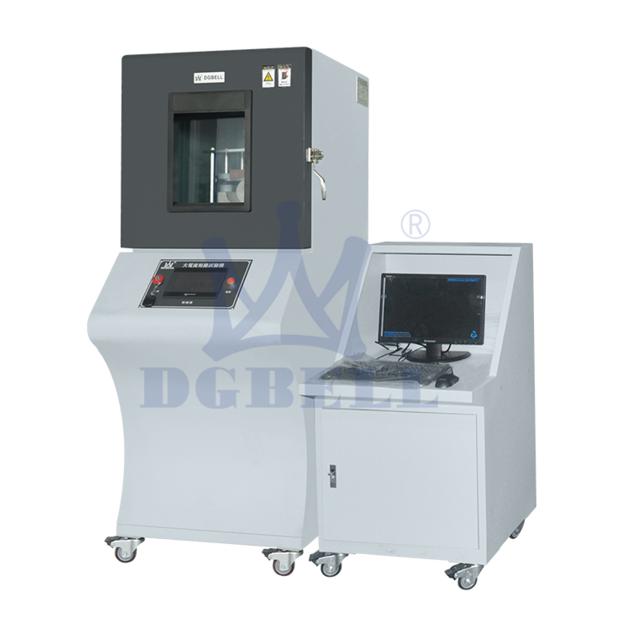

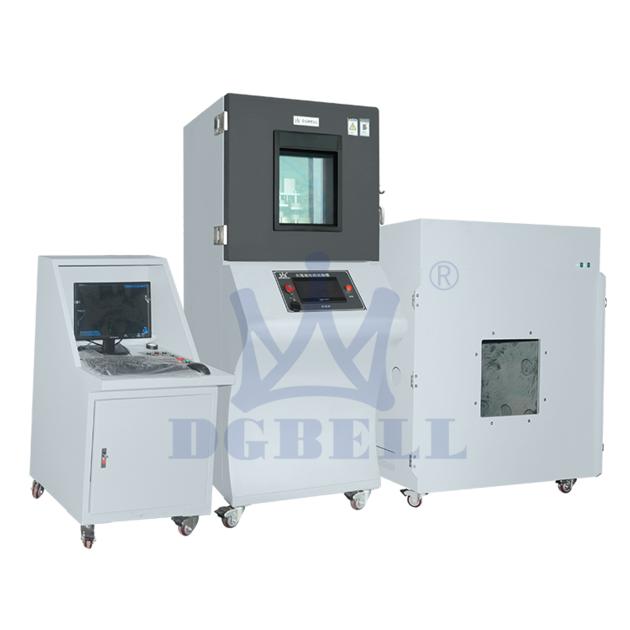

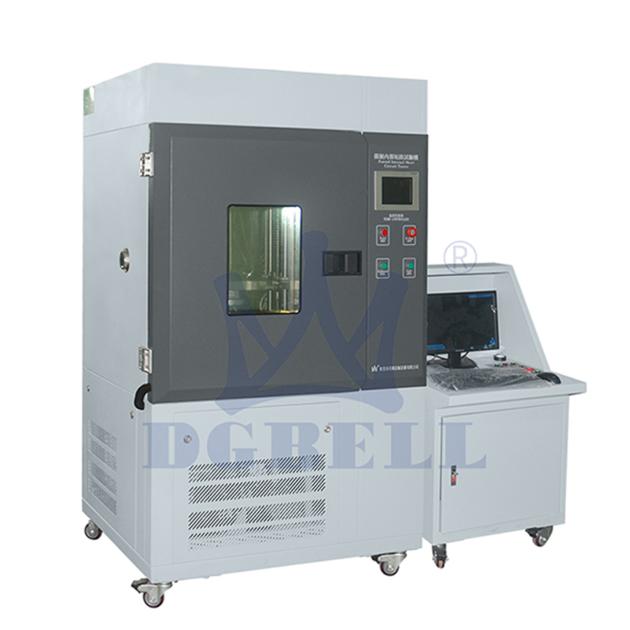

Temperature Control Type Battery Short Circuit Test Equipment 1000A Safety

Product Application
Battery large current short-circuit machine is designed to comply with
standard;
According to the short-circuit test requirement, the short-circuit must be less
than 5 mΩ to achieve maximum current; In additional, a load-bearing capacity
must
be designed in electrical system for short-circuit system. Thus, Bell R&D team
selects industrial DC magnetic contact with full copper terminal and internal
copper current conduction, and internal active bead axial fan is mounted to
cool
to ensure the test system more safer and reduce the test machine power
consumption
and enable the test data in accuracy.

Test judgment standards: no flame or explosion after battery short-circuit
test.

Standard Compliance
GB/T 18332.2-2009Nickel-metal hydride vehicles

QC/T 741-2006 Ultracapacitors for vehicles

QC/T 742-2006 Lead-acid batteries for electric vehicles

QC/T 743-2006 Lithium-ion batteries for electric vehicles

QC/T 744-2006 Nickle-metal hydride batteries for electric vehicles

Vehicles battery related international standard (ISO/IEC/SAE/JEVA/CEN etc.)
International Standard Association and 863 plan electric vehicles major
projects
related test specification

QB/T 2947.3-2008 Electric bicycles-cell or battery and chargers Part 3:Li-ion
batteries and chargers

DB12/T246-2005 Lithium batteries for electrical bicycles test specification

GB 19521.11-2005 Safety code for inspection of hazardous properties for
dangerous
goods of lithium batteries
Technical Parameters
Model
BE-1000W
BE-2000W
BE- , 3000W
BE-5000W
BE-10000W
Max. Operating Current (A)
1000
2000
3000
5000
10000
Ra , ted Insulation Voltage (V)
1000
1000
1000
1000
1000
Max , . instantaneous current
1500A
2500A
3500A
6000A
120 , 00A
Internal Resistance System
≤100mΩ
≤5mΩ
Driven Method
Electric
Pneumatic
Electric
Res , ponse time
≤5μs
Acting Time
Pick-up time/ release time ,less than 30ms
Short residence time
0~999S,time and state controllable
Current Accuracy
¯1%FSR,resolution :0.1A
Max. Specimen Dimension
1000X1000X1000MM
Resistance Material
Copper
Power
AC220V 50HZ or Customized
Short-circuit Method
Low temp. Ambient temp. High temp.
Operating Method
Long distance wireless control
Overall Dimension
According to actual design
Additional Function
Voltage, Current Temperature Sampling, Camera Monitoring system, Fire-
extinguishing system, explosion-proof system, smoke evacuation system.
Configuration
Voltage
0—10V,0-- , 100V,0—1000V
Temp. Sampling Range
-200℃ ~ 1200℃
Voltage, Temperature Accuracy
¯1%FS
Voltage Resolution
1mV
Temp. Resolution
0.1℃

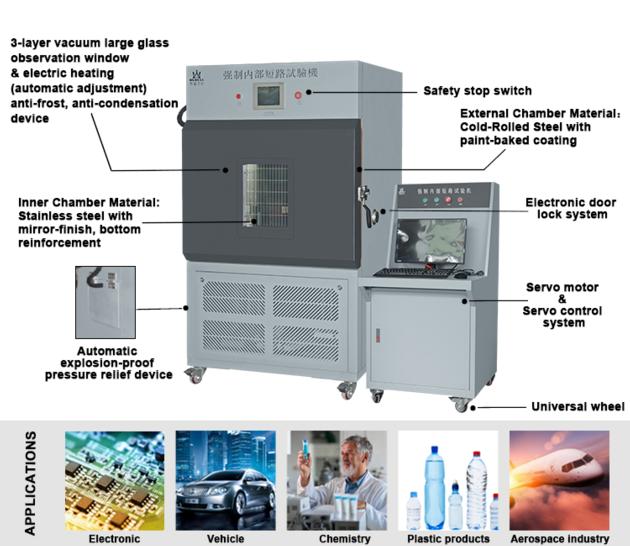

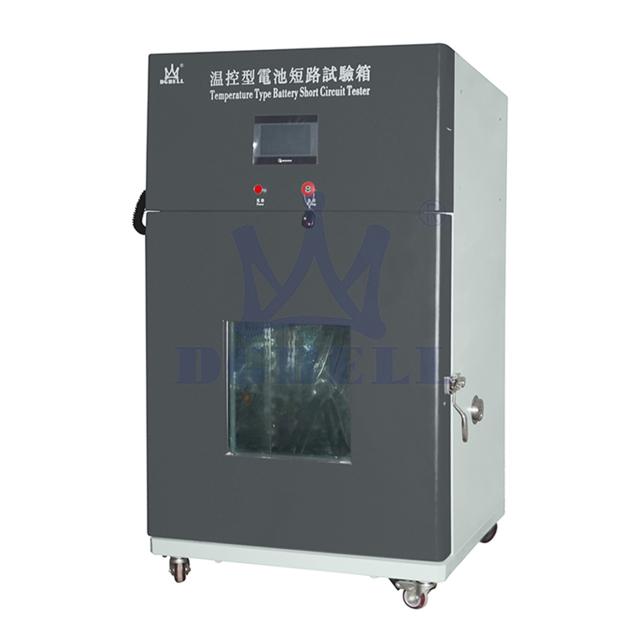

Temperature Control Type Explosion-proof Cabinet Technical Parameters
Cabinet Specification (mm)
500X500X500MM, 800X800X800MM, 1000X1000X1000MM, can customize
Temp. Range
0℃~100℃(Controllable )
Control Accuracy
0.01℃
Temp. Fluctuation
¯0.5℃
Temp. Uniformity
¯2℃
Compressor
French Tecumseh Compressor
Observation Window
Rectangle multi-layer explosive-proof tempering glass with stainless steel
protective screening
Explosive-proof decompression device
with auto decompression devices
Air Exhaust System
Air exhaust system on top cabinet
Structure
Cabinet
Independent vertical & horizontal test machine and control system
Communication
Adopt R232,485 communication interface, ensure stability and real time of
remote
sampling, with explosive-proof function
Fixed Clamp
Connector or customize clamp according to samples provided
Data Sampling module
Independent remote sampling, multi voltage, temp., current acquisition channels
(optional );
Standard channel quantity
2-channel,4-channel,8-channel,various data acquisition system (optional )
Camera Monitoring System
Test zone installed with high definition camera monitoring system in remote
control with explosion-proof (optional).
Standard Configuration
Short-circuit host, data acquisition system, explosion-proof system (camera
monitoring, fire-fighting system, smoke exhaust system optional)
Safety Protection
Electric leakage, over-temp., over-voltage, over-current, fault alarm, smoke
alarm
lamp.
Testing Fixture
Customize according to actual testing condition
Working Environment
0℃~45℃
