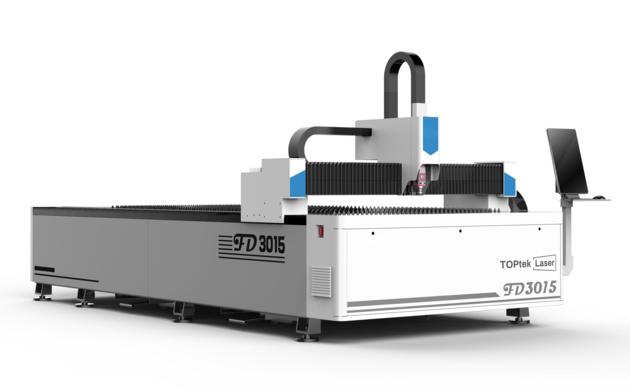

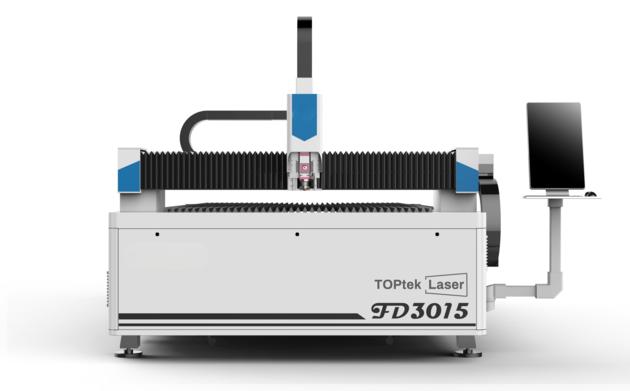

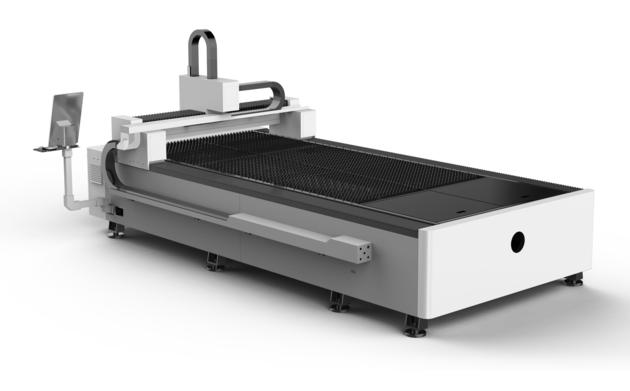

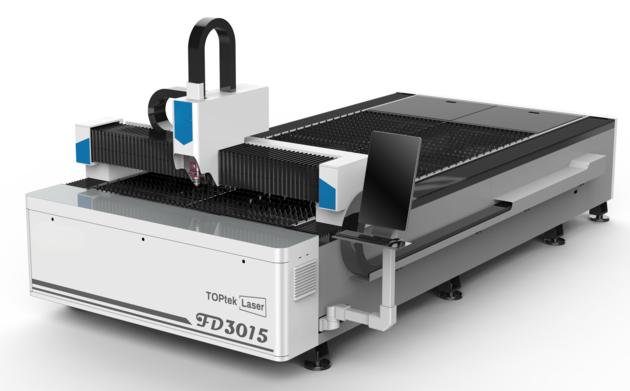

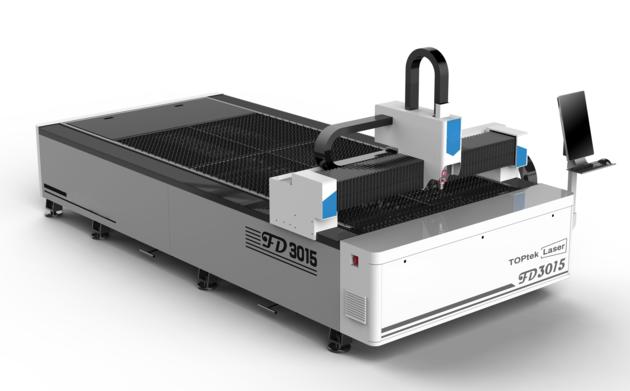

TOPtek Laser Cutting machine for sheet FD3015

TOPtek is an innovative high-tech company focusing on handheld laser welding solutions. Adhering to the deep professional ability, numerical control system, high-speed transmission system and other core technologies, we are committed to providing high-quality welding solutions to customers in various industries around the world.
After decades of development, the company has become a modern high-tech enterprise integrating research and development, sales, production and service.

Parameters

Working area:3050x1530
Max. running speed（X/Y axis linkage):150m/min
Overall dimension of main machine: 4597x2244x1852
Laser head:1000-3000W
Slideway:HIWIN
Gear:DESBOER
Breaker:Schneider
Positioning accuracy:¯0.03mm/m
Max. acceleration（X/Y axis linkage):1.0G
Total weight of machine:2200kg
Machine bed:Tube welding bed
Rack:YYC
Control system:FRIENDESS
Relay:OMRON
Repositioning accuracy:¯0.02mm/m
Table load bearing:2000kg
Laser source:1000-3000W
Gantry structure:High strength aluminum profile
Reducer:DESBOER
Display size:21.5 inches
Electrical proportional valve:Japan SMC1050-312/2050-312

ROLLED OVER TRADITIONAL WELDING IN ALL ASPECTS
1.Faster speed: the welding or cleaning efficiency is 5-10 times higher than traditional welding.
2.Easy operation:No need experienced operator, any green hands can operate it within 30 minutes training.
3.Cost-saving: 80% cost-saving than traditional electric welding, MIG welding, argon arc welding. Less operator, less consumption(gas and consumables etc.) and less working time. For example,if the workload equals 1 experienced operators working in 10 hours, but with the laser welding or cleaning machines, only 1 ordinary being can fix it in 3 hours.
4.Welding seam is almost invisible, and smooth welding surface.
5.Very small deformation on Workpiece.
6.Operation safer.
7.Environmental-friendly welding.
