TOP MOUNTED LEVEL SWITCHES
| Price: | US$ 60 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | 100 % ADVANCE BY T.T |
| Port of Export: | MUMBAI |
Product Details
| Model No.: | TMMLS-0572 | Brand Name: | FLOWTECH |
|---|
| Certification: | FLOWTECH MESURING INSTRUMENTS PVT.LTD. |
|---|---|
| Specification: |
Float : S.S.316 or Teflon Coated or PP / PVC
Flange : Mini 50 NB to ANY Size in C.S. or S.S.304 or S.S.316 or S.S. Lined C.S. etc. Switch : SPDT reed, rated 0.5 Amp@ 230 VAC OR SPDT micro, rated 5 Amp@ 230 VAC Switch Housing : Die Cast Aluminium, Weather Proof to IP 65 (IS-2I47) OR (Enclosure) : Flame Proof to II A, II B (IS - 2148 CMRS Dhanbad Approved) Operating Pressure : 10 Kg/Cm2 perating Temp : Maxi. 100®C. Electrical Connection : ½" NPT ( F ) or ¾ " ET ( F ) |
Packaging & Delivery
| Packaging: | WOODEN CAGES |
|---|---|
| Delivery/Lead Time: | 2 WEEK |
| Production Capacity: | 500 PIECS PER MONTH |
Product Description

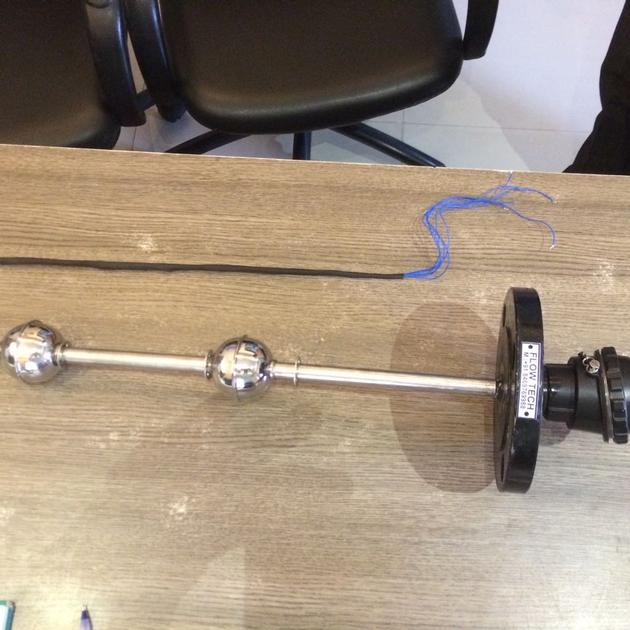

We offer flawless quality Top Mounted Magnetic Level Switch for our customers. These are used for controlling one or multi Levels by using reed Switch or micro Switch. It has a magnetized float moving alongside the protection tube (S.S.316) which tracks the level and activates the reed relays inside the tube. The red relay retains their output state after passing the float. These are available in a variety of material as per exact application. A maximum 4 set points are given in a single level switch and maximum stem length can be of 2 meters.
|
