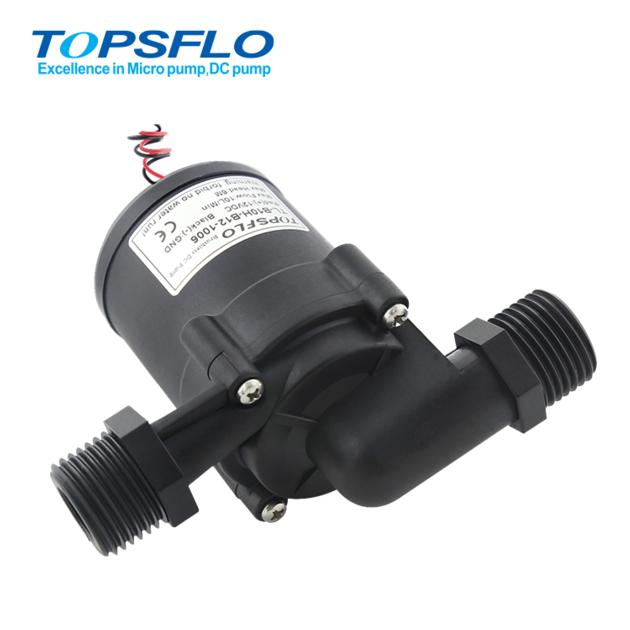

TL-B10 Centrifugal Circulation Mini Brushless DC Water Pump
| Price: | US$ 15.32 / Kit |
|---|---|
| Minimum Order: | 2 |
| Payment Terms: | VISA,TT |
| Port of Export: |
Product Details
| Model No.: | TL-B10 | Brand Name: | TOPSFLO |
|---|
| Certification: | |
|---|---|
| Specification: |
Model Product Code Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W) B10 TL-B10-A12-0703 7 12VDC 0.54 3 6.48 TL-B10-A24-0703 7 24VDC 0.35 3 8.4 TL-B10-B12-0703 7 12VDC 0.54 3 6.48 TL-B10-B24-0703 7 24VDC 0.35 3 8.4 TL-B10-C12-0703 7 12VDC 0.54 3 6.48 TL-B10-C24-0703 7 24VDC 0.35 3 8.4 TL-B10-A12-0905 9 12VDC 1.38 5 16.56 TL-B10-A24-0905 9 24VDC 0.65 5 15.6 TL-B10-B12-0905 9 12VDC 1.38 5 16.56 TL-B10-B24-0905 9 24VDC 0.65 5 15.6 TL-B10-C12-0905 9 12VDC 1.38 5 16.56 TL-B10-C24-0905 9 24VDC 0.65 5 15.6 TL-B10-A24-1208 12 24VDC 1.3 8 31.2 TL-B10-B24-1208 12 24VDC 1.3 8 31.2 TL-B10-C24-1208 12 24VDC 1.3 8 31.2 |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Product Features: 1.Advanced magnetic driving technology for static-seal, without any leakage forever
2.Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
3.Heavy duty work, can sustain continuous 24 hours work
4.Special designed high efficiency closed-type impeller
5.Sustain 100®C hot water circulation
6.All wetted materials FDA approved to be safety usage
7.Low or no maintenance
8.Can customized
Typical Applications:
• Household battery water pump • Water dispenser, Water Coolers
• Automotive air conditioning • Carbonation, Coffee Maker, Beverage Dispenser
• Air-conditioner Drain • Chillers, Cooling Circulation,
• Home Appliance Boosting • Evaporative coolers
Customers how to choose the pump?
1. first determine the voltage, current,water head and flow, diameter size, pump water head is generally the subject of the water does not flow when pumped up to the static head, if a customer requires pumping the water to a certain height and then to maintain a certain water flow, select the desired water head must be higher than the specified pumping height. This specific by the supplier according to the actual conditions. Can refer to lift flow graph.
2. to determine the dimension and form (threaded interface, inlet and outlet orientation, aperture size, etc.)
3. to determine the job requirements (temperature, medium, work time and frequency)
4. to determine the functional requirements (time control, pressure control, flow control, speed, etc
|
