TGG,Terbium Gallium Garnet
| Price: | US$ 38 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Fuzhou |
Product Details
| Model No.: | TGG | Brand Name: | Photonchina |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Size(mm) Length(mm) Optical Coating Delivery(week)
10*10 3-20 AR @ 1064 nm or upon request 3-4 5*5 3-20 AR @ 1064 nm or upon request 3-4 3*3 3-20 AR @ 808 nm or upon request 3-4 Ø30 3-20 AR @ 1064 nm or upon request 3-4 Ø10 15 AR @ 1064 nm or upon request 3-4 Ø8 15 AR @ 780 nm or upon request 3-4 Ø5 15 AR @ 780 nm or upon request 3-4 Ø2.8 16 AR @ 808 nm or upon request 3-4 |
Packaging & Delivery
| Packaging: | Standard |
|---|---|
| Delivery/Lead Time: | 10days |
| Production Capacity: | 3000pcs per month |
Product Description

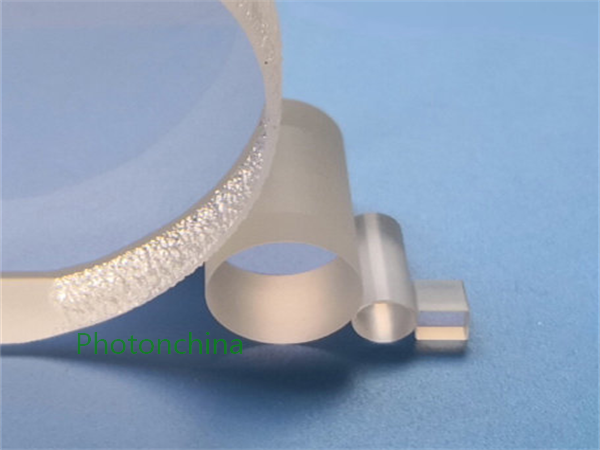

Terbium Gallium Garnet(TGG)，as a magneto-optical crystal, is an optimum material for Faraday devices (Rotator and Isolator) in the range from 400nm-1100nm, excluding 470-500nm.The Faraday rotator consists of a TGG rod contained inside a special designed magnet. The rotation sense of the polarization of a light beam passing through the rotator only depends on the direction of the magnetic field and not on the direction of propagation of the light beam. The optical isolator is a Faraday rotator set between two suitably aligned polarizers which allows a light beam to pass through in one direction only.Photonchina TGG has a combination of excellent properties such as large Verdet constant, low light loss, high thermal conductance and high light damage threshold which makes it a unique material for Faraday devices particularly suitable for YAG lasers and Ti: sapphire tunable lasers, ring lasers and seed injected lasers.
|
