TEMPERED GLASS FOR BUILDINGS

Product Description

5mm, 6mm, 8mm Clear Tempered Glass with AS/NZS
*More than 10 years manufacturer and supplier experience
*Quick delivery of 15 days.
*Australian Standard: AS/NZS 2208: 1996-safety glazing matererials
*Safety strong packing and loading
*Option processing clear, frosted, heat soaked, heat strengthened
*Edging: Flat edge, grind edge, polished edge, beveled edge and others.

Tempered Glass/Toughened Glass

Tempered glass is made by heating float glass to its softening point ( 650-700® C )and then suddenly cooling down to form compression in the surface layer of the glass, thus the mechanical strength is increased by 5 times.

Features:

1.5 times harder than ordinary float glass.
2. Tensile strength for float glass 40 MPa (N/mm2), tempered glass, 120-200 MPa (N/mm2)
3. Quality standard AS/NZS 2208: 1996
4. It withstands abrupt temperature change of 220 Centigrade.
5. Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body.


Specification:

Flat Tempered Glass

MIN:90x90mm, Max:3660x2140mm

Thickenss:4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm

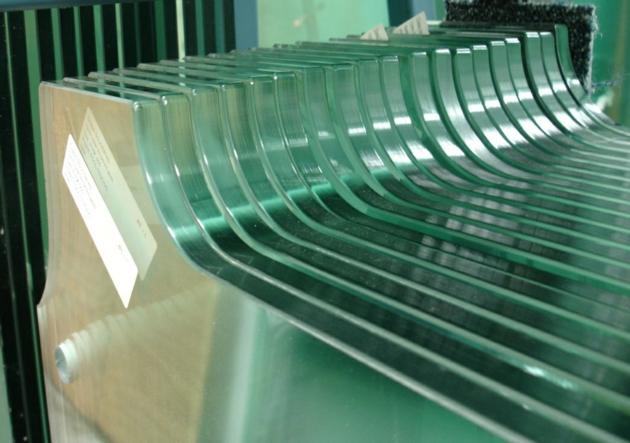

Bent/Curved Tempered Glass

Max. Size :2200x750(mm)
Min Size :400*300(mm)
Thickness :5-19(mm)
Min. Benting Radius 370mm


Processing:

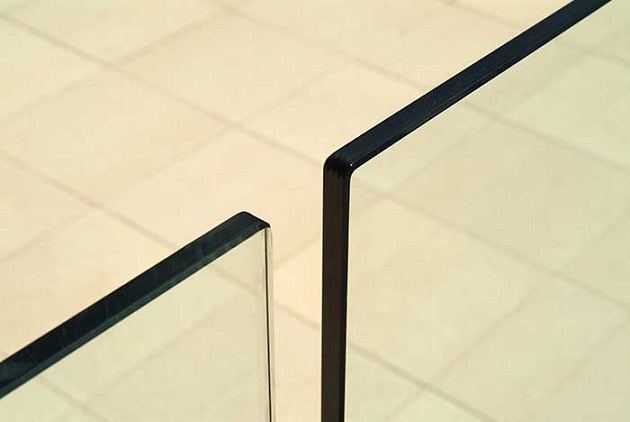

1. Edge: Flat edge (T edge), pencil edge (C edge), beveled edge, ogee edge.
2. Corner: Safety corner, round corner.
3. Holes: Drilling available at customer's option.
4. Shapes: Square, rectangle, circle, oval, triangle etc.
5. Treatment: Printing, acid, frosted.

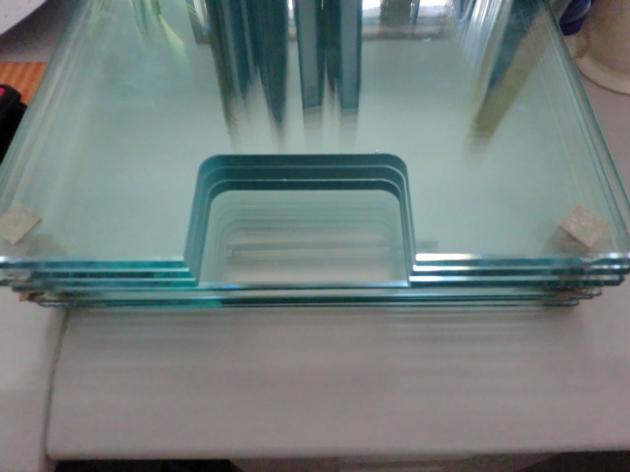

6. Water Jet.


Applications:
1. External use of windows, doors, curtain wall, shopfronts, offices, houses, shops etc.
2. Interior glass screens, partitions, balustrades etc.
3. Shop display windows, showcases, display shelves etc.
4. Furniture, table-tops, picture frames etc.

Tempered Glass Equipments

1. Water jet machine, cutting tolerance +-0.1mm
2. Screen Printing Equipment
3. Single Straight-line Glass Edging Machine
4. Double Straight-line Glass Edging Machine
5. Round Glass Edging Machine
6. Glass Drilling Machine
7. Glass Tempering Furnace
8. Glass cutting line

Packing detail:

1. Interlay paper between two sheets
2. Timber end caps
3. Iron/plastic belt for consolidation
4. Safety corner

Density 2.5g/cm±
Tensile Strength 120-200 MPa (N/mm2)
Compressive Strength 1000 N/mm 2
Yong's Module 73 Gpa
Coefficient of linear expansion 9 x 10 - 6 m/Mk
Softening point 650-700®C


Thickness 4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Payment term (1) 30% deposit ,balance paid against the copy of B/L
payment term (2) 30% deposit ,balance will be L/C at sight
Delivery time 15 days after received the deposit
Packing End caps pakcing within stripe and paper
MOQ 50 Square meter
Loading port Qingdao port
Australian Standard: AS/NZS 2208:1996-safety glazing matererials
