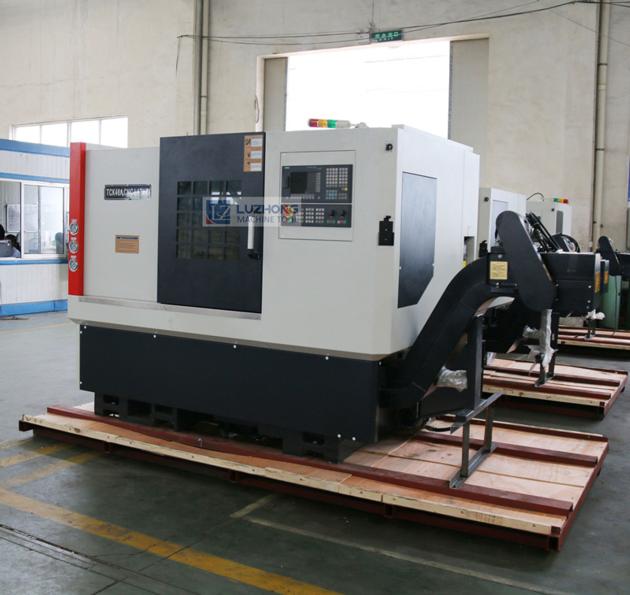

TCK46A Series CNC Lathe

TCK46A Series CNC Lathe
Slant Bed CNC Lathe Machine
CNC Lathe Machine
Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
 More information you can views here

Application:
The CNC Lathe Machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.

Product main technical specifications:

Specification Units TCK46A
Max.swing over bed mm 460
Max.swing over cross slide mm 170
Max.turning length mm 350
Spindle unit mm Ø170
Spindle nose(optinal chuck) A2-5/A2-6
Spindle motor power kw 5.5
Max.spindle speed rpm 3500
Spindle bore mm Ø56
X/Y axis lead screw specification 3210/3210
X axis limit Travel mm 240
Z axis limit Travel mm 400
X axis motor torque N.m 7.5
Z axis motor torque N.m 7.5
X/Z axis repeatability mm 0.003
Tails tock bore mm 65
Tails tock quill travel mm 80
Tail stock travel mm 200
Tail stock taper MT4
The bed form and inclination ® One -piece casting/30®
Machine dimensions(L*W*H) mm 2500*1700*1710
Weight kg 2600
