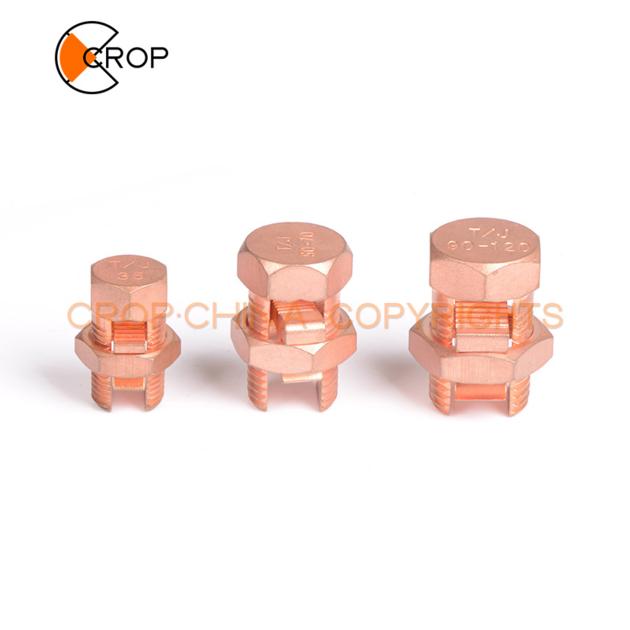

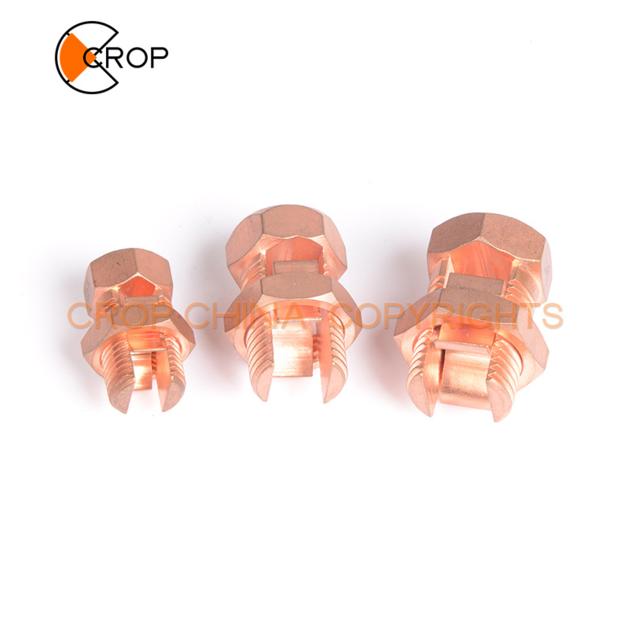

T/J brass/Copper split bolt clamp wire connector

T/J brass/Copper split bolt clamp wire connector



Function:
Suitable for the sequcnce and transportation of all kinds of conductor in electric netting.

Copper split bolt connector for conductor elcetric connecting cable clamps
Model:T/J-35
L(mm):35
M(mm):M21×2.5
C(mm):7
A(mm):22

Description

It is suitable for the sequence and transportion of all kinds of conductor in elcetric connecting, made of copper,brass, and copper plating.

Material

copper,brass, and copper plating




Model L(mm) M(mm) C(mm) A(mm)
T/J-16 20 M17X2.5 6 18
T/J-25 27 M19X2.5 7 20
T/J-35 35 M21X2.5 7 22
T/J-50-70 42 M23X2.5 11 24
T/J-95-120 45 M25X2.5 14 26
T/J-150-185 60 M29X2.5 17 30
T/J-210-240 72 M31X2.5 20 32
