Sweet potato starch extraction machine in sweet potato starch production line

Sweet potato starch processing plant

The whole sweet potato starch making machine is comprised of five major sections: Washing & Crushing Sections, Screening Sections, Concentrating Sections, Drying Section and Packing Section. DOING has its own factory and entire sweet potato starch making machine line, so we can offer you the best service, production and competitive price.

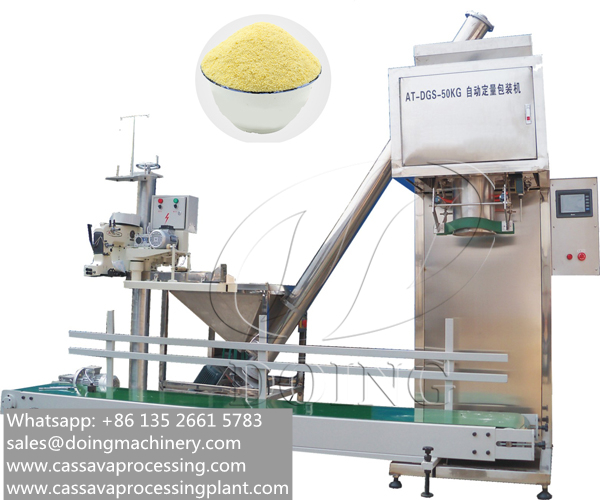

Sweet potato starch processing plant mainly includes: Dry Sieve, Paddle Washing, Cutting, Rasper, Centrifuge Sieve, Fine Fiber Sieve, Hydrocyclone Station, Vacuum Filter, Flash Dryer, Starch Sieve, Packing machine.

Detailed information on the following:
(1) Cleaning and Washing Section: two accepts are included:Dry Sieve and Paddle Washing Machine. Dry sieve can effectively remove dirt, sand and small stones. Paddle washing machine will remove silts and impurities from the surface of cassava.
(2) Crushing Section: it includes Cutting Machine and Rasper.

(3) Screening Section:

a. Centrifuge Sieve is stainless steel, easy for installation and maintenance.(high efficiency of starch sieving, good technical index).

b. Fine Fiber Sieve →Mainly used for the removal of fine fiber in crude starch, higher throughput, low energy consumption and good effect of starch sieving.

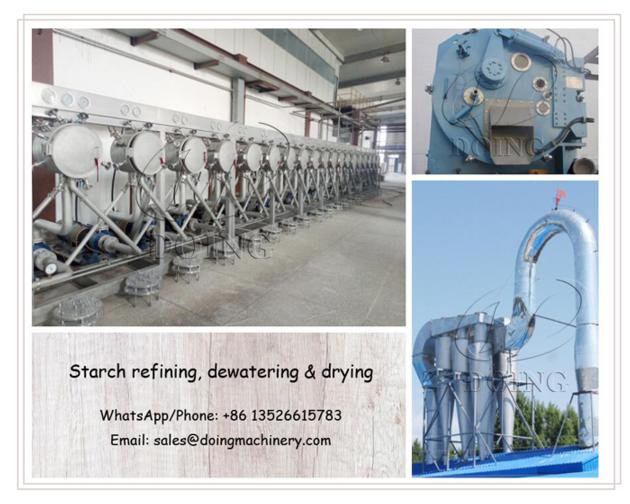

(4) Concentrating Sections:

a. Hydrocyclone Station can remove fiber, protein and cell to further process starch milk. The hydrocyclone pipe made of strengthened nylon.

b. Vacuum Filter: It is a solid-liquid separation machine which is formed by vacuum pressure and vacuum filtration. It is the negative pressure formed at the outlet of filtrate as a driving force for filtration. The basic principle of vacuum dehydrator for starch makingis that under the action of vacuum negative degree(0.04-0.08MPa), the liquid in suspension is withdrawn through filter cloth, while solid particles are withheld.
(5) Sieving Section: The function of starch sieve: classification the starch in accordance with the different mesh.
