Supply Customization Rotary Kiln Tyre OEM Facotry

Supply Customization Rotary Kiln Tyre OEM Facotry

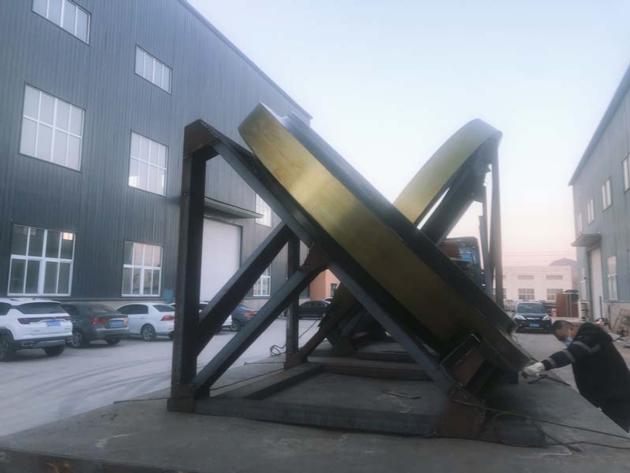

Tyres for kilns and tyre for coolers
Tyres For Kilns Tyres For Coolers
O.D. : ñ 5850mm
Width : 900mm
Weight : 55 Ton
Material : IS 2708 Gr II
Applications : Sponge Iron Plants Brand Name : Tyres for kilns/coolers
O.D : ñ 2670mm
Width : 150mm
Weight : 875Kg
Material : IS 2708 Gr II
Max : 6500mm
Applications : Sponge Iron Plants
Tyres and Rollers
The purpose of tyres (often called riding rings) and rollers is to support the kiln and allow it to rotate with minimal friction. Rotary kilns are among the largest items of permanently moving industrial machinery, the largest examples weighing in their fully-loaded form several thousand tonnes. Despite the challenges of their size and their high temperature, the best examples of rotary kiln rotate on their rollers almost frictionlessly, the power supplied by the drive being almost entirely in order to oppose the eccentric load of the contents of the kiln. On cutting the power to a kiln, the kiln will “roll back” and unless a brake is applied, will continue to swing like a pendulum for ten or fifteen minutes before coming to a standstill. This finely-tuned mechanical condition requires sophisticated design of the kiln’s supports.

A standardised design evolved during the first three decades of the twentieth century, allowing the great escalation in size of kilns that then followed.
