Steel Flanges Welding Neck Flanges ASME B16.5 Monel 400 FF 4'' CL900
| Price: | US$ 20.26 / Piece |
|---|---|
| Minimum Order: | 1 PC |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram payments |
| Port of Export: | shanghai |
Product Details
| Model No.: | Monel 400 | Brand Name: | TOBO |
|---|
| Certification: | |
|---|---|
| Specification: |
1.Stainless steel flange 2.sch5s-schxxs 3.ISO9001,ISO9000 4.Market:America,Africa,Middle East,Southeast of Asia flangeType Stainless Steel Flanges ASTM A 182, GR F1, F11, F22, F5, F9, F9 WN SO BL JIN ECT Standard ASME/ANSI B16.5 Size 1/2’’~60’’ Pressure Rate 150lb to 2500lb Manufacturing process Push, Press, Forge, Cast, etc. Material stainless steel Carbon steel ASTM A 105 Alloy steel flange ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 Stainless Steel flange ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H Nickel Alloys Flanges Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 Copper Nickel Flange Copper Nickel 90/10, C70600, Copper Nickel 70/30, C71500 Manufacture Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 Package Wooden cases, pallets, nylon bags or according to the customers' requirements MOQ 1pcs Delivery time 10-100 days depending on quantity Payment terms T/T or Western Union or LC Shipment FCA Tianjin/Shanghai, CFR, CIF, etc Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc Remarks Other materials and drawings are available. |
Packaging & Delivery
| Packaging: | Wooden case |
|---|---|
| Delivery/Lead Time: | 15 work days |
| Production Capacity: | 100000 one mouth |
Product Description

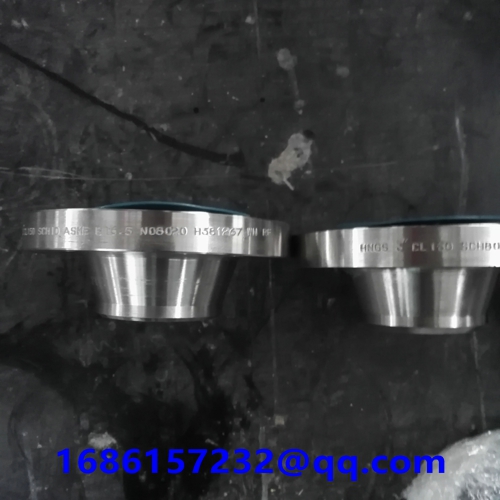

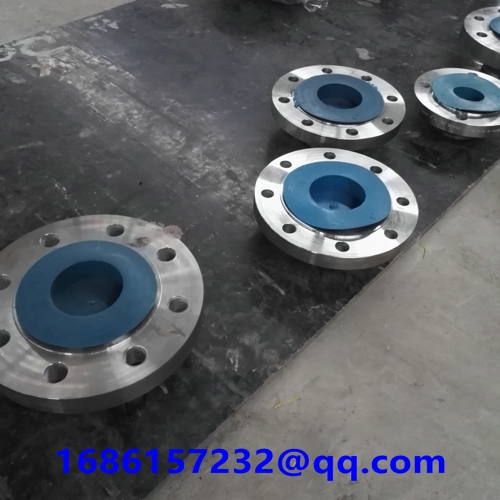

Steel Flanges, Weld Neck Flanges / ASTM A 182 Stainless Steel WNRF Flanges ASTM A 182, GR F1, F11, F22, F5, F9, F9 Weld Neck Flanges
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.
We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.
Product Range:
WNRF Flanges Size : 1/8" NB TO 48"NB.
WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel WNRF Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181
Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Value Added Services
• Hot Dip Galvanizing ,
• Epoxy Coating.
Test Certificate
Manufacturer Test Certificate as per EN 10204 / 3.1B
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the Alibaba certification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
