Steel Expansion Joint Water Pipe With Flange
| Price: | US$ 5~2000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | EH-150SG | Brand Name: | Ehase-Flex |
|---|
| Certification: | ISO |
|---|---|
| Specification: |
Specification Nominal Bore Total Length Bellows O.D. Force to Compress Effective Area Axial Movement Rated Working Pressure mm ins mm mm kg cm2 mm kg/cm2 40 1 1/2 300 60 150 22.2 +10 -40 16 50 2 300 78 180 34.5 +10 -40 16 65 2 1/2 300 92 240 52.5 +10 -40 16 80 3 300 108 260 71.2 +10 -40 16 100 4 300 132 280 110.5 +10 -40 16 125 5 300 163 400 168.7 +10 -40 16 150 6 300 190 530 233.9 +10 -40 16 200 8 300 243 650 389.1 +10 -40 16 250 10 300 295 750 592.2 +10 -40 16 300 12 300 345 850 829.7 +10 -40 16 *Specifications stated abvoe are the standard. We can design and manufacture according to customer's requirement *Flange Standard: JIS, ANSI, DIN, B.S. JB etc |
Packaging & Delivery
| Packaging: | Carton Box, Pallet, or Plywood Case |
|---|---|
| Delivery/Lead Time: | 20 Working Days |
| Production Capacity: | 7000 Piece/Pieces per Week |
Product Description
Quick Details Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-Flex
Model Number: EH-150SG
Type: Flange
Material: Stainless Steel, SUS304/ 316/321

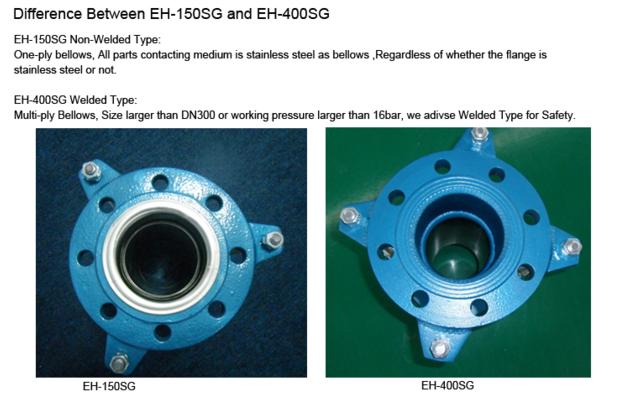

Technics: Non-welded
Connection: Flange
Shape: Equal
Head Code: Round
Product name: 304 Stainless Steel Axial Expansion Bellows Joint
Size: DN40-DN300
Standard: EJMA
Temperature Rating: Max 1000℃
Flange Standard: JIS,ANSI,DIN,BS,JB,,,
Rated Working Pressure: 10bar, 16bar
Certificate: ISO 9001
Application: Applied in Gas, Oil, Water, Hot Water, Stream...
OEM/ODM: Allowed
Supply Ability
Supply Ability: 7000 Piece/Pieces per Week HS Code: 7307 99
Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case
No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Lead Time : 20 Working Days
Product Description
Stainless Steel Axial Expansion Bellows Joint

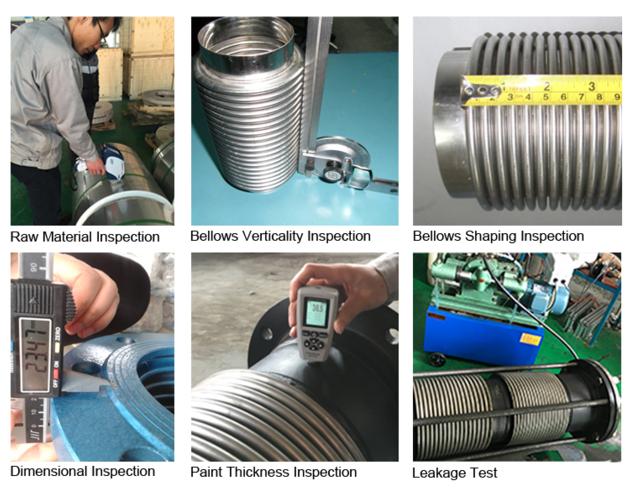

100% Before Delivery
More than 40-year experience in manufacturing
Features:
1. Omega Bellows, More flexible and longer service life.
2. Non-Welded Type, clean and anticrosive.

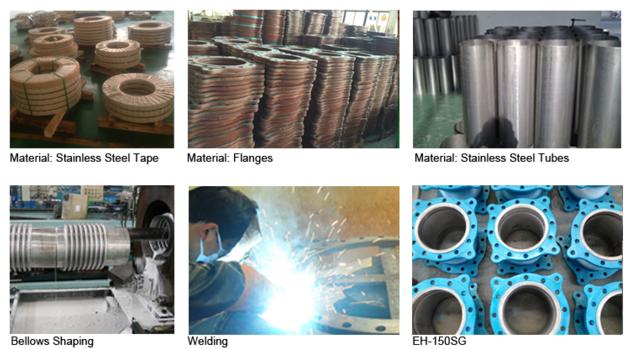

Production Process
Production Capacity
Flexible Sprinkler Hoses: 350,000pcs per Month
Flexible Joints/ Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
|
