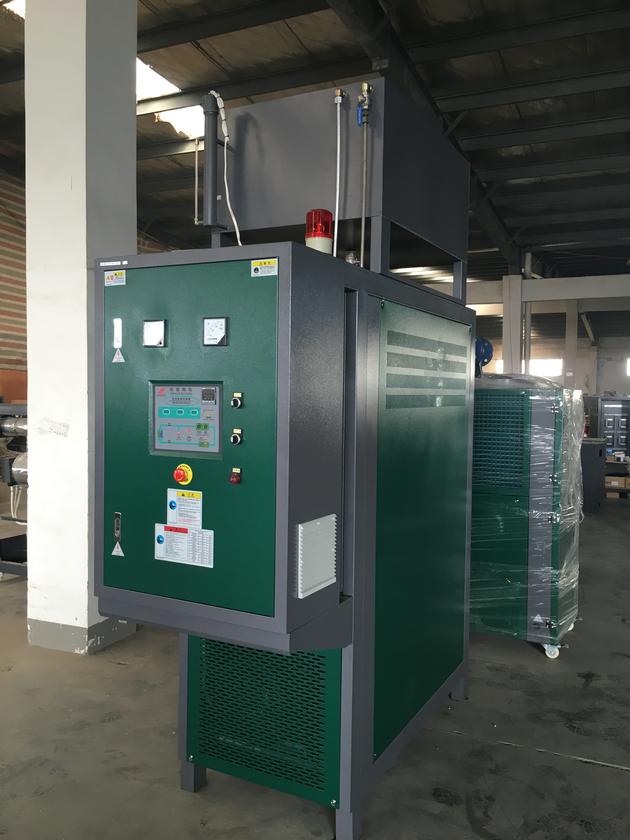

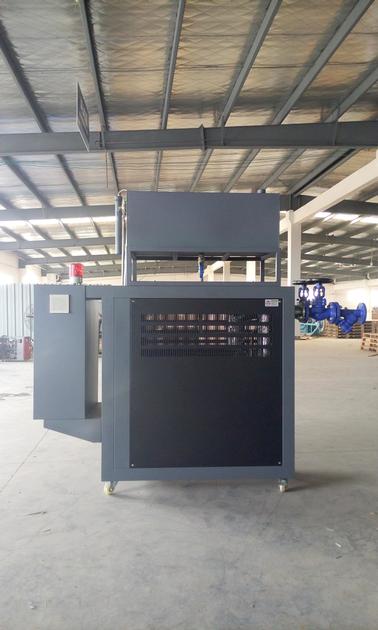

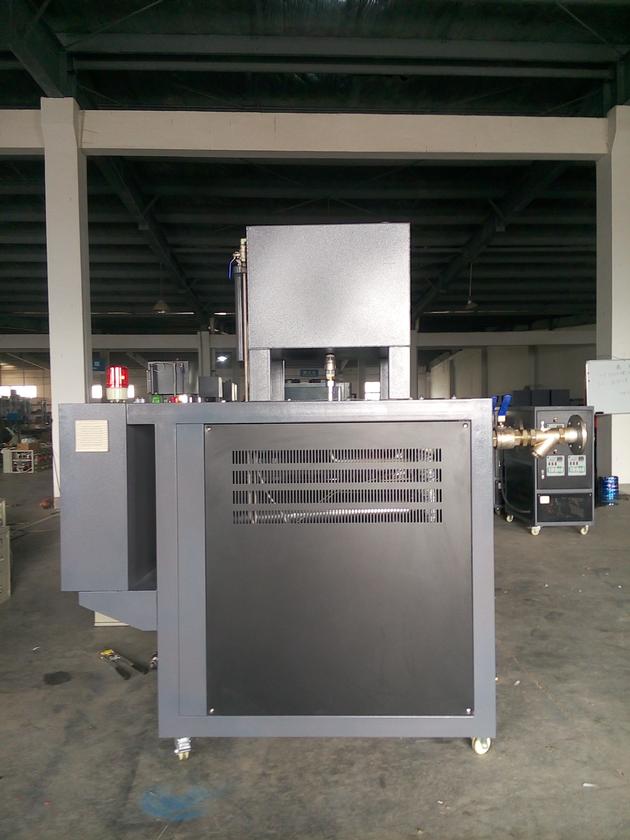

Standard oil mold temperature controller(oil heater)
| Price: | US$ 600-14000 |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | L/C,D/A,D/P,T/T.PAYPAL,MONEYGRAM |
| Port of Export: | Shanghai |
Product Details
| Model No.: | BOS-05 | Brand Name: | BUYING |
|---|
| Certification: | CE,ISO9001 |
|---|---|
| Specification: |
Specification:
Model Unit BOS-05 BOS-10 BOS-20 BOS-30 BOS-50 BOS-75 Temp Range ℃ Normal Temperature-200℃ Temp Control Accuracy PID¯1℃ Power supply AC3φ380v 50HZ3P+E(5M) Heat transfer medium Heating conducting oil Cooling method Indirect cooling Heating capacity KW 6/9 9/12 18 24/36 48/60 75 Pump Power KW 0.375 0.75 1.5 2.2 3.75 5.5 Pump Flow L/MIN 45 150 204 315 367 424 Pump pressure KG/CM2 2 2 2.3 2.6 2.8 3 Max powerconsumption kW 6.5/10 10/13.5 20 27/39 52/64 81 Alert function Pump reversal/oil shortage/overheating/overload/reverse turn Cooling water pipe INCH 1/2 1/2 1/2 1/2 3/4 3/4 Circulation oil pipe INCH 1/2 1/2*2 1/2*2 1.2 1.5 2 Size(L*W*H) MM 750*325*680 750*325*680 1000*420*1000 1200*500*1100 1350*500*1200 1650*500*1250 Weight KG 65 80 150 180 220 280 |
Packaging & Delivery
| Packaging: | 1. Dust Proof Film + Anti-collision Foam + 5 Layer Cartons + Ply-wooded Case (For LCL only, no need |
|---|---|
| Delivery/Lead Time: | 25 DAYS |
| Production Capacity: | 1000 SETS PER MONTH |
Product Description
*Anti-explosive device pipe
*Blowing return function (optional)
*Back to the oil temperature indicator
*Power automatic exhaust function of heating power switching
*Negative pressure system operation (optional)
*Heat the oil BY-PASS relief loop
*Instant cooling power function

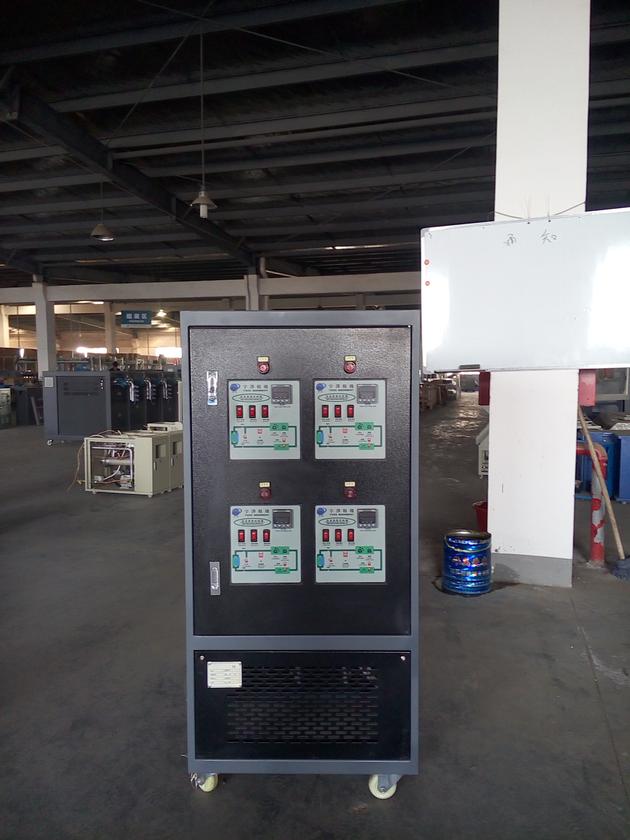

*Multi-point temperature control unit can be customized
*Pump horsepower and heating power can be customized
*Electric with OMRON,FUJI,TE,LG,Schneider, Siemens
*Temperature control range: inlet temperature: normal temperature-200℃
*304 stainless steel pipeline to reduce the tube group and rust

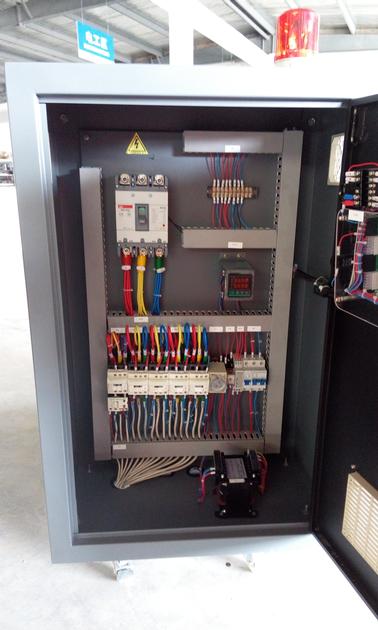

*Isolated electrical control box, to extend the useful life of electrical appliances
*RS485 communication function, automated management (optional)
*Control: imported microcomputer or PLC control (optional)
*Perfect safety protection. fault display, repair and maintenance without professionals
|
