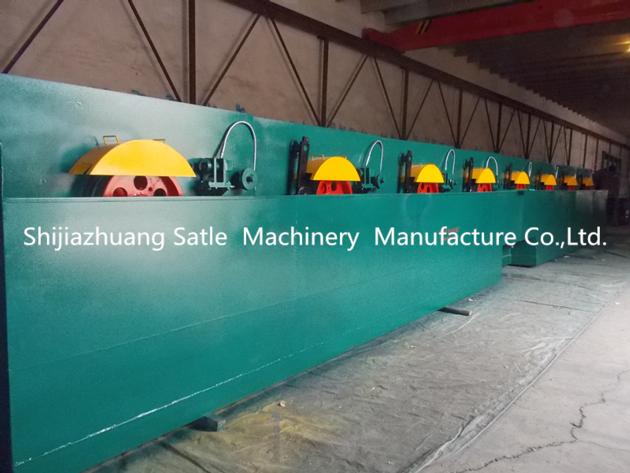

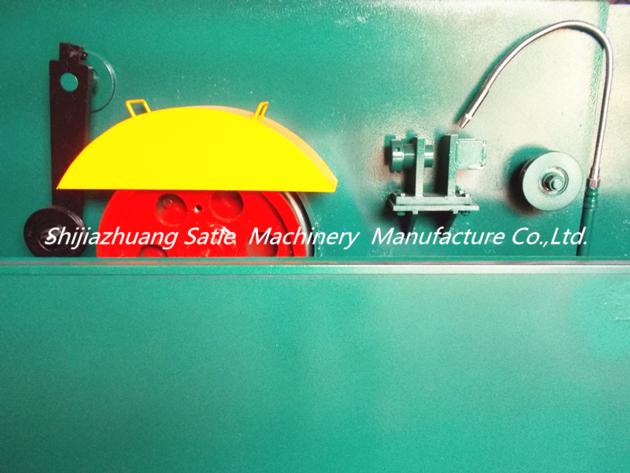

Stainless steel wire drawing machine
| Price: | US$ 5500 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | TT/LC/Western union/Money gram |
| Port of Export: | Tianjin,China |
Product Details
| Model No.: | Lw400-8 | Brand Name: | Satle |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
1.Low Input High Returns.
2.Suitable for Small Facrory ,Family Factory,Individual Workshops, Semiworks etc. 3.The whole process from feeding wire to outlet wire can be finished in one time and only one person can operate. 4.Have been Exported to Russia, India, Turkey, Algeria, Pakistan, Malaysia,Egypt, etc. 5.Hot sales in China. |
Packaging & Delivery
| Packaging: | Water proof plastic cloth |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 200 sets per year |
Product Description
Application:High/medium/Low carbon steel wire, Copper wire, Stainless steel wire, Aluminum wire, Galvanizing wire, black wire, mig wire, spring wire, binding wire, fiber steel, nail wire, bolt and nut wire, etc.
Parameters:
Model LW400-8
Inlet Wire Dia. 2.2mm
Outlet Wire Dia. 0.8mm
Number of drawing capstan 8

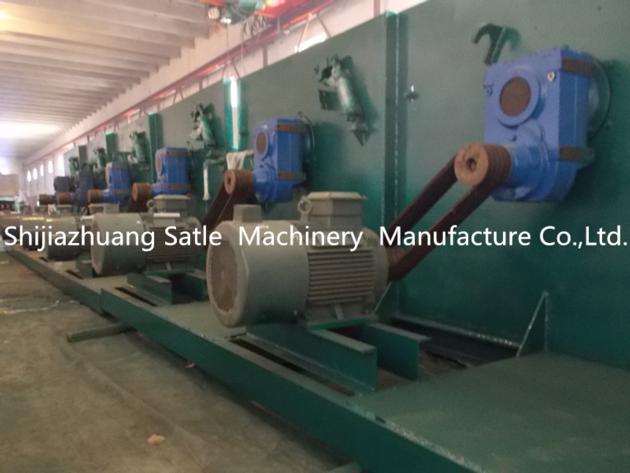

Motor Inverted motor
Single Power 11kw

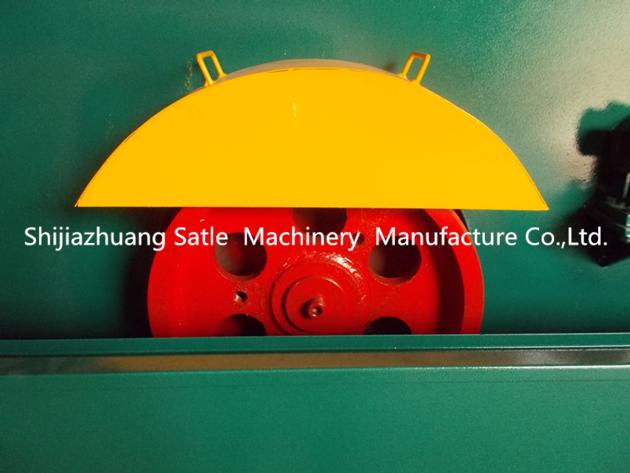

Dia.of capstan 400mm
Material of the capstan Steel coated tungsten carbide
Capstan lifetime More than 26000h
Warranty of capstan 24month
Main steel plate thickness 16mm
Size dimension (L*W*H) 1.5*1.54*1.4m
Weight 600kg/set
Warranty 12month
Average compression ratio 13-15%
Drive mode Gear
Control system PLC
Inverter SINEE
PLC Siemens S7 series
Sensor DING CHEN
Low voltage electric appliances Chint Brand
Operation Touch screen

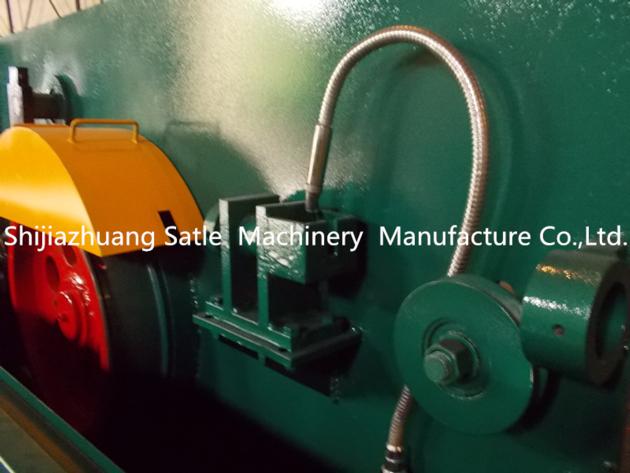

Lubricant type Fluid lubrication
Take-up type Spooler 630
Motor of coiler 11kw
MOQ 1set
|
