Stainless steel knotted rope mesh

Price:	RMB 20
Minimum Order:
Payment Terms:	L/C
Port of Export:

Product Details

Model No.:		Brand Name:

Certification:
Specification:	The specification of stainless steel knotted rope mesh Code Rope Construction Rope Diameter Opening Size Breaking Force Inch mm Inch mm KN SKRM-01 7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38 SKRM-02 7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38 SKRM-03 7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38 SKRM-04 7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38 SKRM-05 7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38 SKRM-06 7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18 SKRM-07 7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18 SKRM-08 7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18 SKRM-09 7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18 SKRM-10 7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18 SKRM-11 7 × 7 5/64 2 3" × 3" 76 × 76 3.17 SKRM-12 7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17 SKRM-13 7 × 7 5/64 2 2" × 2" 51 × 51 3.17 SKRM-14 7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17 SKRM-15 7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17 SKRM-16 7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17 SKRM-17 7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17 SKRM-18 7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17 SKRM-19 7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17 SKRM-20 7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22 SKRM-21 7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22 SKRM-22 7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22 SKRM-23 7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22 SKRM-24 7 × 7 3/64 1.2 0.8" × 0.8" 20 × 20 1.22 All the parameters above can be modified.

Certification:

Specification:

The specification of stainless steel knotted rope mesh
Code Rope Construction Rope Diameter Opening Size Breaking Force
Inch mm Inch mm KN
SKRM-01 7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38
SKRM-02 7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38
SKRM-03 7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38
SKRM-04 7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38
SKRM-05 7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38
SKRM-06 7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18
SKRM-07 7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18
SKRM-08 7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18
SKRM-09 7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18
SKRM-10 7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18
SKRM-11 7 × 7 5/64 2 3" × 3" 76 × 76 3.17
SKRM-12 7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17
SKRM-13 7 × 7 5/64 2 2" × 2" 51 × 51 3.17
SKRM-14 7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
SKRM-15 7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17
SKRM-16 7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17
SKRM-17 7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
SKRM-18 7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
SKRM-19 7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17
SKRM-20 7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22
SKRM-21 7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
SKRM-22 7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
SKRM-23 7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22
SKRM-24 7 × 7 3/64 1.2 0.8" × 0.8" 20 × 20 1.22
All the parameters above can be modified.

Packaging & Delivery

Packaging:
Delivery/Lead Time:
Production Capacity:

Product Description

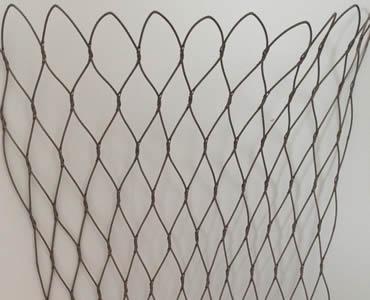

Stainless steel knotted rope mesh is made from high tensile stainless steel of 304, 316, 304L, 316L. And the two main rope constructions of stainless steel ropes are 7 × 7 and 7 × 19, and 1 × 7 and 1 × 19 are also supplied. The standard angle is 90®. The mesh cannot hurt hands for its good softness. And it will not hurt animals and birds either. So it is widely used as stainless steel zoo mesh to protect animals, and it can make the visitors enjoy animals free of danger. Besides, it is used as stainless steel aviary mesh and bird cages to make birds live comfortably.
