Stainless steel ferrule rope mesh

Price:	RMB 20
Minimum Order:
Payment Terms:	L/C
Port of Export:

Product Details

Model No.:		Brand Name:

Certification:
Specification:	The specification of stainless steel ferrule rope mesh Code Rope Construction Rope Diameter Aperture Breaking Force Inch mm mm kN SFRM-01 7 × 19 1/8 3.2 120 × 208 7.38 SFRM-02 7 × 19 1/8 3.2 100 × 173 7.38 SFRM-03 7 × 19 1/8 3.2 90 × 156 7.38 SFRM-04 7 × 7 3/32 2.4 100 × 173 4.18 SFRM-05 7 × 7 3/32 2.4 90 × 156 4.18 SFRM-06 7 × 7 3/32 2.4 80 × 139 4.18 SFRM-07 7 × 7 3/32 2.4 70 × 121 4.18 SFRM-08 7 × 7 5/64 2.0 100 × 173 3.17 SFRM-09 7 × 7 5/64 2.0 90 × 156 3.17 SFRM-10 7 × 7 5/64 2.0 80 × 139 3.17 SFRM-11 7 × 7 5/64 2.0 70 × 121 3.17 SFRM-12 7 × 7 1/16 1.6 80 × 139 2.17 SFRM-13 7 × 7 1/16 1.6 70 × 121 2.17 SFRM-14 7 × 7 1/16 1.6 60 × 104 2.17 SFRM-15 7 × 7 1/16 1.6 51 × 87 2.17 SFRM-16 7 × 7 3/64 1.2 80 × 139 1.22 SFRM-17 7 × 7 3/64 1.2 60 × 104 1.22 SFRM-18 7 × 7 3/64 1.2 50 × 87 1.22

Certification:

Specification:

The specification of stainless steel ferrule rope mesh
Code Rope Construction Rope Diameter Aperture Breaking Force
Inch mm mm kN
SFRM-01 7 × 19 1/8 3.2 120 × 208 7.38
SFRM-02 7 × 19 1/8 3.2 100 × 173 7.38
SFRM-03 7 × 19 1/8 3.2 90 × 156 7.38
SFRM-04 7 × 7 3/32 2.4 100 × 173 4.18
SFRM-05 7 × 7 3/32 2.4 90 × 156 4.18
SFRM-06 7 × 7 3/32 2.4 80 × 139 4.18
SFRM-07 7 × 7 3/32 2.4 70 × 121 4.18
SFRM-08 7 × 7 5/64 2.0 100 × 173 3.17
SFRM-09 7 × 7 5/64 2.0 90 × 156 3.17
SFRM-10 7 × 7 5/64 2.0 80 × 139 3.17
SFRM-11 7 × 7 5/64 2.0 70 × 121 3.17
SFRM-12 7 × 7 1/16 1.6 80 × 139 2.17
SFRM-13 7 × 7 1/16 1.6 70 × 121 2.17
SFRM-14 7 × 7 1/16 1.6 60 × 104 2.17
SFRM-15 7 × 7 1/16 1.6 51 × 87 2.17
SFRM-16 7 × 7 3/64 1.2 80 × 139 1.22
SFRM-17 7 × 7 3/64 1.2 60 × 104 1.22
SFRM-18 7 × 7 3/64 1.2 50 × 87 1.22

Packaging & Delivery

Packaging:
Delivery/Lead Time:
Production Capacity:

Product Description

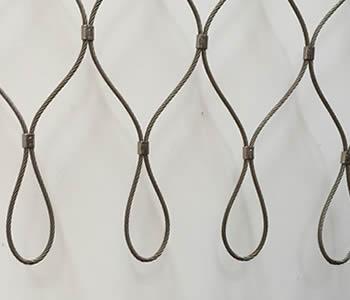

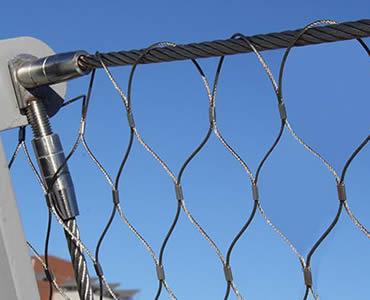

Stainless steel ferrule rope mesh, also called stainless steel ferruled rope mesh, is almost similar to stainless steel knotted rope mesh in physical properties. And the only difference is that the two neighboring ropes of stainless steel ferrule rope mesh are combined by ferrules to form diamond openings. And ferrules are made of the same material as the rope wire. The standard angle is 60®, but other angles are also available, such as 10® and 90®. Stainless steel ferruled rope mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as stainless steel rope mesh green wall and stainless steel balustrade mesh.
