Stainless steel banding strapping wholesale price

Quick detail

Place of Origin Zhejiang, China Brand Name CROP
Model Number Stainless steel banding Product name Stainless steel banding strapping
Sample Free Material Stainless steel
Company website * Quality Prime
Installation Quick Certifications ISO9001
OEM Acceptable Export All over the world
Business Type Manufacturer

Steel Strapping

stainless steel banding strap
Catalogue

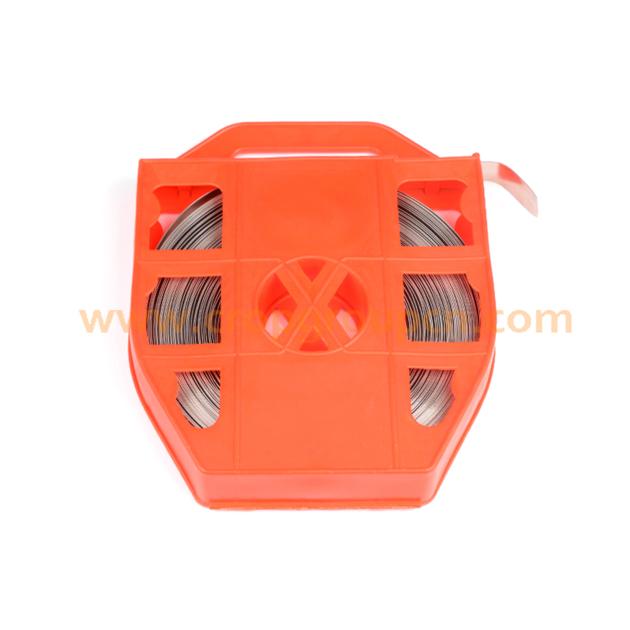

Stainless steel banding,also named stainless steel sheets / coils are an excellent general purpose metal zip ties,they have unparalleled strength,With high-quality corrosion resistance, heat resistance, low temperature strength and mechanical properties.it is not easy to rust in use, while ensuring quality, long service life, wear resistance, excellent fire resistance, excellent performance.They are very suitable for working in various environments,Even in the most extreme temperatures and harsh environmental conditions,Stainless steel banding straps are ideal for bundling and fixing various cables, wires and components.Such as bundling the suspension clamps,anchor clamps,and hooks,on dead end and intermediate routes of main or end use electrical connectors.Bundling of signs and cables for transportation and telecommunication, petroleum pipelines, electric power, shipbuilding, etc., as well as submarine cables, communication cables, pipelines, traffic, telephone pole numbers, advertising signs, etc.

Stainless steel banding used with a variety of stainless steel buckles,with high locking,tensile and strength.

Material: Stainless steel of different grades: 201 stainless steel banding,304 stainless steel banding,316 stainless steel banding,the other stainless steel grades can be customized.

Packing: Packing with paper box,colour plastic box or bundling with nylon cable tie

WIDTH(MM) 8 10 12 16 19 20
Thickness(mm) 0.4
0.5
0.6
0.7 0.4
0.5
0.6
0.7 0.4
0.5
0.6
0.7 0.4
0.5
0.6
0.7 0.4
0.5
0.6
0.7 0.4
0.5
0.6
0.7
Length for roll(m) 30 or 50 30 or 50 30 or 50 30 or 50 30 or 50 30 or 50
Material grade 201
304
316 201
304
316 201
304
316 201
304
316 201
304
316 201
304
316
Colour of dispenser Red or Blue Red or Blue Red or Blue Red or Blue Red or Blue Red or Blue
*The width,thickness,material grade,colour of dispenser can be customized according to customer requirement.


Stainless Steel Banding Buckles

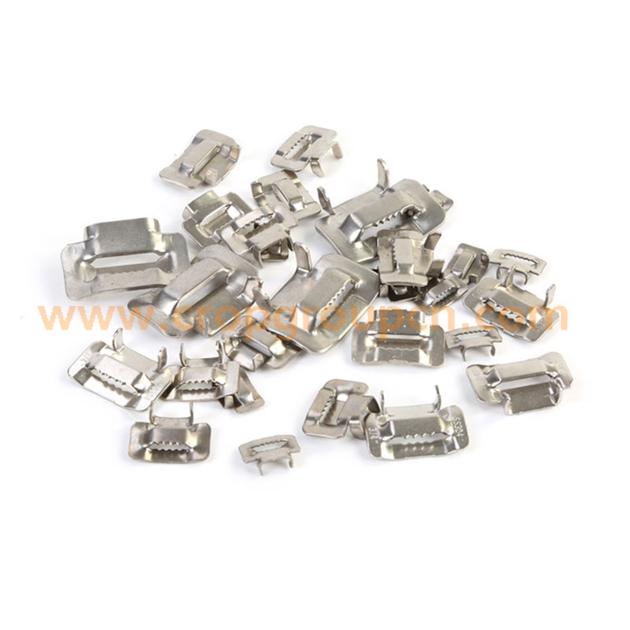

Stainless steel buckles,other called stainless steel banding clips,used to attach pole fittings,anchor clamps,suspension fittings and other fittings or accessories together with stainless steel band on dead-end and inter-mediate routes,of main or end use electrical connectors.

Material: Stainless steel of different grades:201,304,316,the other stainless steel grades can be customized.

Stainless steel banding buckles are reinforced,this can guarantee extended service life and attaching under significant mechanical loads because teeth strictly clamped the band inside.

Stainless steel buckles are made of different sizes depend on band strapping size to assist your strapping needs of securing with heavy loads.The max size for band – 20mm and appropriate for insert on of three coils of band strapping.


Catalogue
stainless steel strapping buckles
11

stainless steel clips
PRODUCT CODE STE-Y10 STE-Y12 STE-Y16 STE-Y19 STE-Y20
Max.band width(mm) 10 12 16 19 20
Material grade 201
304
316 201
304
316 201
304
316 201
304
316 201
304
316
stainless steel clips
PRODUCT CODE STE-L10 STE-L12 STE-L16 STE-L19 STE-L20
Max.band width(mm) 10 12 16 19 20
Material grade 201
304
316 201
304
316 201
304
316 201
304
316 201
304
316


Stainless Steel Banding Tools

stainless steel strapping tool
Catalogue
Wheel type tool STTA is developed for tension the stainless steel banding and mounting the fittings on wooden,concrete or metal poles.
The tool is equipped with special blade for easily cutting the stainless steel band.
Wheel type metal banding tool STTA is heavy duty forged steel banding tool. Maximum thickness of mounted steel band is 1.2 mm and 20 mm of width.Wheel type tool STTA is made of galvanized steel,which is resistant to impacts and wear. Have long durability and extended service life.
The stainless steel banding tool STTA has superior rust corrosion resistance and trouble proofed design, which strictly clamped the band and buckles.The cut knife withholds plenty of cutting cycles and guarantee long service period of tool.To complete the installation there is only one tool needed.


PRODUCT CODE STTA1(NORMAL) STTA2(HEAVY DUTY)
Max.band width(mm) ＜20 ＜20
Max.band thickness(mm) ＜1.2 ＜1.2


stainless steel banding tool

Catalogue
Ratchet type tool STTB is developed for tension the stainless steel band and mounting the fittings on wooden, concrete or metal poles.
The stainless steel strapping tool is equipped with special blade for easily cutting the stainless steel band.Ratchet metal banding tool STTB heavy duty forged steel banding tool. Maximum thickness of mounted
steel band is 1.5 mm and 25 mm of width.Ratchet tool STTB is made of galvanized steel, which is resistant to impacts and wear.
Has long durability and extended service life.Ratchet tool STTB is an easy way of binding stainless steel banding around different rack/pole elements. It keeps the tension tight on the
strapping bands as they fasten the components together.
The operations of cutting, tension, banding can be done with spin tension handle, spring-load-ed gripper and cuter. To complete the installation there is only one tool needed.

PRODUCT CODE STTB
Max.band width(mm) ＜25
Max.band thickness(mm) ＜1.2
