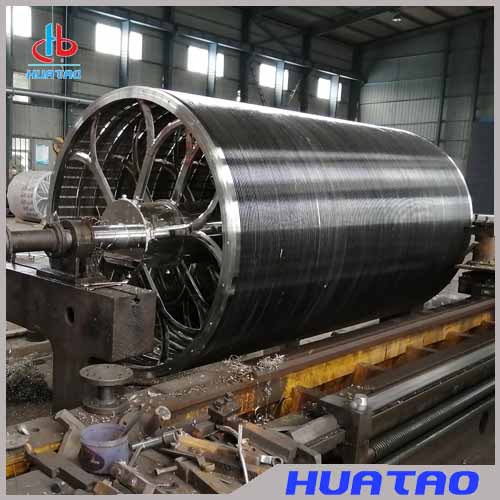

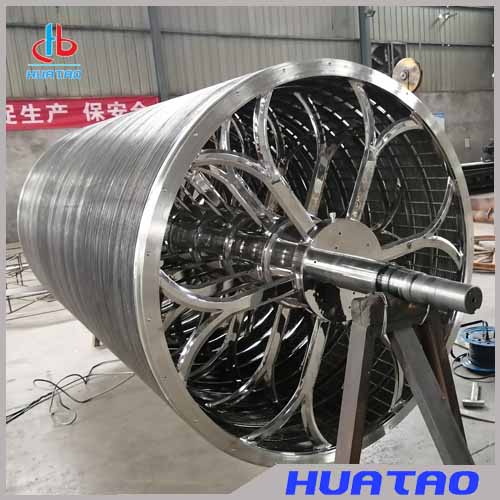

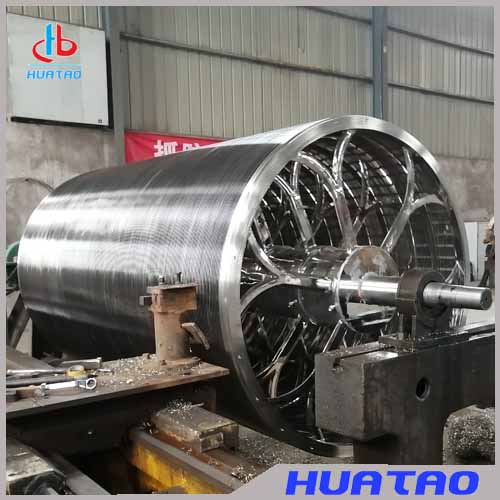

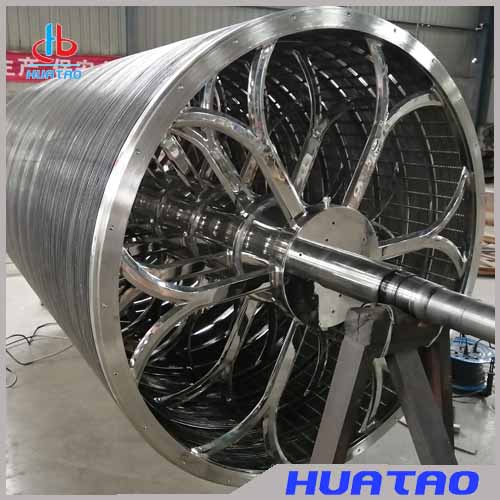

Stainless Steel Cylinder Mould

Stainless Steel Cylinder Mould for paper machine, including spindles, grids, spokes and spacers, with spokes equally spaced on the main shaft, with wire racks mounted on the spokes, stainless steel spokes mounted at equal intervals between the spokes on the main shaft, replacing part of the spokes The stainless steel support ring is embedded at the outer end of the support bar, and the grid is installed along the outer edge of the support steel ring and the spoke, and is tightly wound with stainless steel wire. The paper machine Cylinder Mould is light in weight, corrosion-resistant and reduces energy consumption. Reduce equipment maintenance cycle.

Cylinder Mould Normal Specification diameter: 1000mm, 1250mm, 1500mm, 1800mm, 2000mm, 2500mm
Cylinder Mould Normal working face range: 1000mm - 5000mm

Advantage of Stainless Cylinder Mould :
1: High speed: Balance detection, more than 700 meters
2: Weight is reduced by 30% compared to ordinary cages, reducing energy consumption
3: Each piece of spoke has been accurately measured to avoid the overweight phenomenon of the cage and reduce the friction force of the cage on the blanket and the net reduce manufacturing cost
4: All spokes are U-shaped design to reduce water resistance, the surface is very smooth; the speed can be increased by 15-30 meters compared to common cast iron cages without causing water drop phenomenon
5: The strength is higher than that of the common cage for several times, impact resistance, and the maintenance rate of the cage is reduced
6: High surface roughness, increase the area of filtered water, increase production, improve paper quality
7: Acid and alkali resistant, standard 304 stainless steel
8: Very strong integrity, durable.
