Stainless Steel Accordion Bellows Pressure Expansion Joint
| Price: | US$ 5~2000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | EH-400SG | Brand Name: | Ehase-Flex |
|---|
| Certification: | ISO FM |
|---|---|
| Specification: |
Specification: Nominal Bore Total Length Bellows O.D. Force to Compress Effective Area Axial Movement Working Pressure mm ins mm mm kg cmû mm kg/cm2 40 1 1/2 350 58 75 17.6 +10 -40 16 50 2 350 76 110 30.4 +10 -40 16 65 2 1/2 350 92 205 43.8 +10 -40 16 80 3 350 106 261 62.8 +10 -40 16 100 4 350 133 303 107.7 +10 -40 16 125 5 350 163 630 162.9 +10 -40 16 150 6 350 190 1154 227.5 +10 -40 16 200 8 350 252 1905 385.3 +10 -40 16 250 10 350 315 1932 670.1 +10 -40 16 300 12 350 366 2353 923.5 +10 -40 16 350 14 400 398.1 2192 1102 +10 -40 16 400 16 400 462.8 2689 1464 +10 -40 16 500 20 450 564 3322 2235 +10 -40 16 600 24 500 666 3956 3167 +10 -40 16 *Specifications stated above are the standard. We can design and manufacture according to customer's requirement *Threads: NPT, BSPP, BSPT.. |
Packaging & Delivery
| Packaging: | Carton Box, Pallet, or Plywood Case |
|---|---|
| Delivery/Lead Time: | 20 Working Days |
| Production Capacity: | 100000 Piece/Pieces per Month |
Product Description
Quick Details Place of Origin: Zhejiang, China (Mainland)
Brand Name: EHASE-FLEX
Model Number: EH-400SG
Type: Flange
Material: Stainless Steel
Technics: Welded
Connection: Flange
Shape: Equal
Head Code: Round
Application: HTM Fluid Pipeline
Product name: Expansion Joint
Standard: ANSI
Size: DN40-600mm
Certificate: FM Approved
Working Pressure: PN 16
Body material: SUS304/316/321
Packing: Plywood Case
Advantage: Multiply Bellows
Brand: EHASE-FLEX
Supply Ability
Supply Ability: 100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case
No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Product Description
Corrugated Expansion Joint
Application:
Expansion Joint Bellows Compensator is made of SUS304 material, multiply bellows with features of lower elasticity coefficient, high-temperature and high-pressure resisting, applied to absorb the expansion or compression of the HTM fluid pipeline. It can make a long service life in piping system.
Construction:
Item Parts Material Remark
1 Bellows SUS304 SUS316/321
2 Flanges SS400 SUS304/316/321
3 Tube Ends SS400 SUS304
4 Internal Sleeve SUS304 SUS316
5 Tie Rods SS400 SUS304
Features
1. Excellent Welding Technology, like a fish swimming in water.
2. Omega Bellows, More flexible and longer service life.

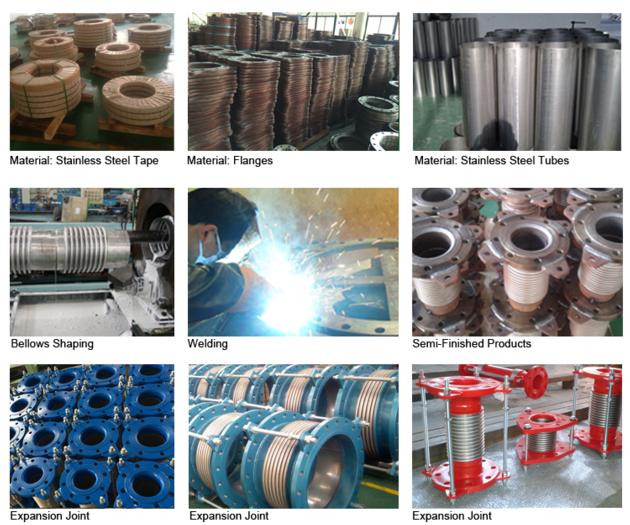

Production Process
Production Capacity
Flexible Sprinkler Hoses: 350,000pcs per Month
Flexible Joints/ Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
|
