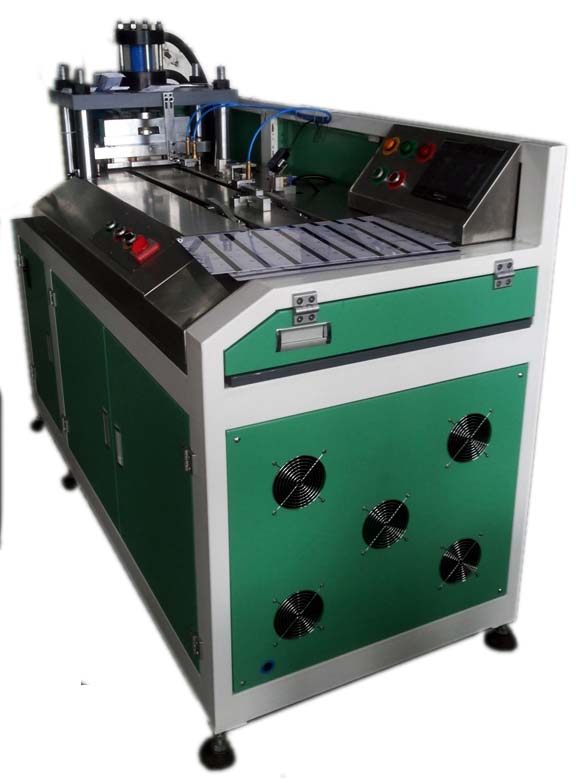

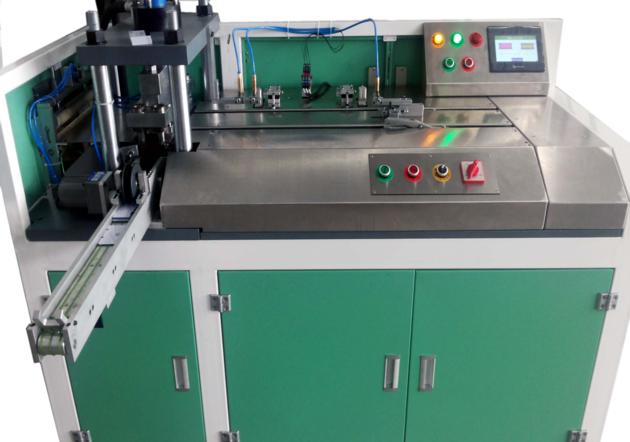

Speedy Plastic Card Puncher YLP-2

 Feature Description
It is applied for punching the laminated plastic sheets ( 2×5 layout) into ISO CR80 cards in a speedy and precise way.
 It applies Mitsubishi PLC, touch screen and servo system in order to ensure the machine stability;
 The pneumatic parts applied in this machine are made by AIRTAC to ensure operation durability.
 The guide screws applied are from Taiwan ABBA to ensure the card conveying and punching precision.
 The hydraulic system is made by ASHUN with the advantage of low noise and stable pressure control.
 The punching mould is specially designed to ensure perfect punching result and long-time service life.
 Technical Parameters
1. Max. Speed: 7000 cards per hour (2×5 layout)
2. Applicable PVC sheet layout: 2×5
3. Dimension: 1700mm×800mm×1500mm
4. Weight: 650Kg
5. Power supply: AC380V 50/60HZ
6. Power rating: 2.5 KW
7. Compressed air: 6KG/CM2
8. Hydraulic pressure: ≤30Kg/CM
9. Service life for 2-up punching mould: 180 million cards
