Spanner drop forging hammer spanner forging process drop hammer

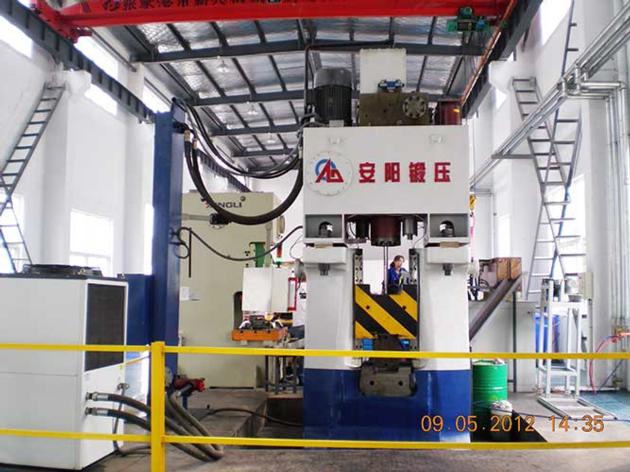

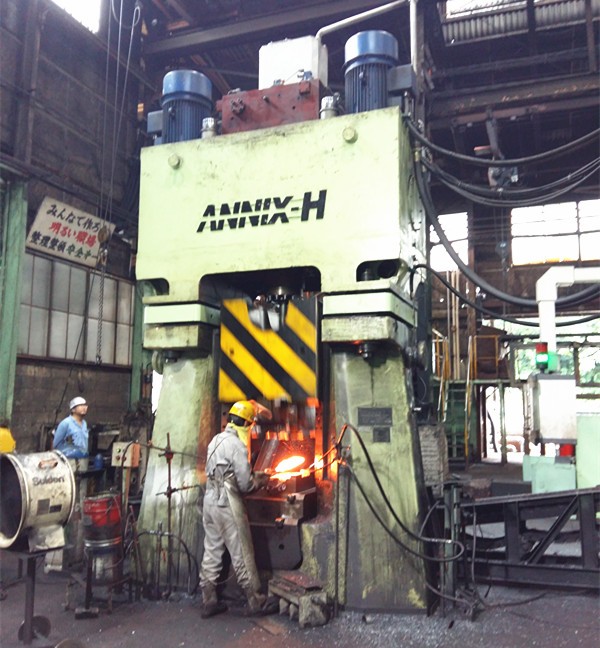

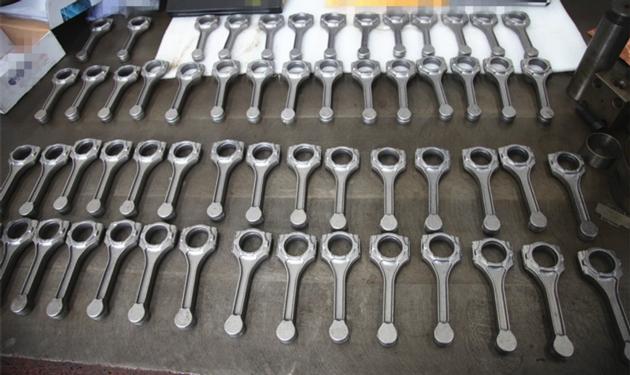

CNC Fully Hydraulic Die Forging Hammer isPLC controlled hydraulic die forging hammer, they are widely applied in automobile forgings, motorcycle forgings, hardware forgings, hand tools blank forgings, stainless steel tableware, and aeronautic forgings etc, especially for the precision forging field. CNC hydraulic die forging hammers are hydraulic double-acting programmable forging hammer with HO-U structures, they are complied with low carbon production, low hammer running cost production and high efficiency production etc high requirements in modern forging industry.

CNC Forging hammer Features:
Programmable hitting.Blow energy is programmable precisely controlled by PLC (Siemens).
Precise energy control. Stable forging quality, deviation ≤¯1.5%.
Good guide ability. CNC Fully Hydraulic Die Forging Hammer uses 'X' guide, make sure the forging precision.
“U” type hammer frame, with high rigidity, high resistance to side load capacity, suitable for multi-impression-die forging.
High blow frequencies. Adopts “big tup, short stroke” structure, high blow frequency, productive efficiency.
Simple and safe operating. Can save and open forging parameter in PLC very easy.
Low forging vibration.
Optimum die life and hammer rod life, because the die contacting time is shorter duration than with the press.

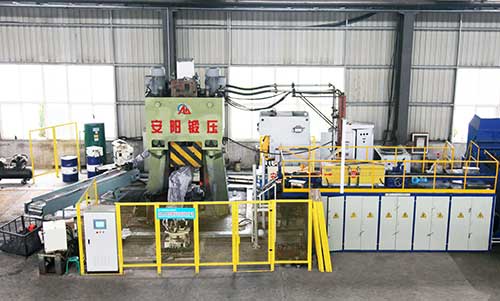

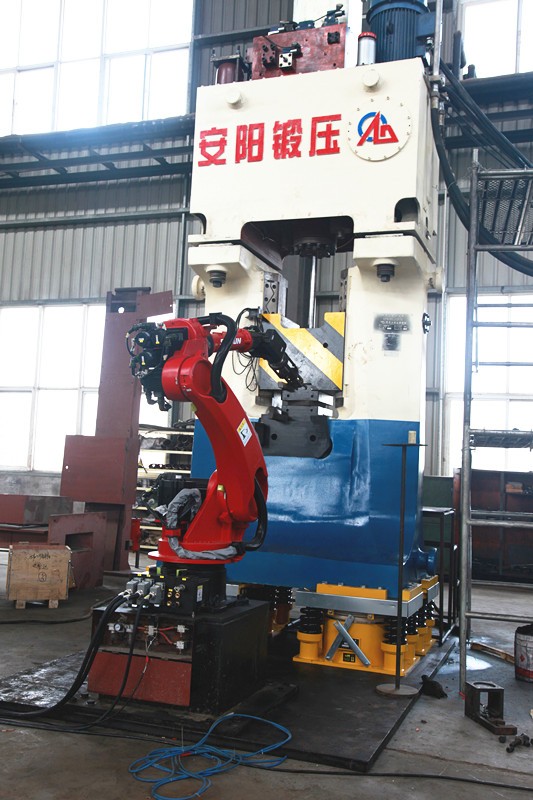

Realize automatic production line.
CNC Forging Hammer Technical Parameter
CNC Hammer Model C92K-12.5 C92K-16 C92K-20 C92K-25 C92K-31.5 C92K-40 C92K-50 C92K-63
Hit energy(KJ) 12.5 16 20 25 31.5 40 50 63
Weight of falling parts(kg) 860 1080 1350 1700 2150 2700 3400 4300
Max hit number(min-1) 129 122 123 113 100 98 98 98
Hit stroke(mm) 420-620 435-635 455-665 470-685 490-755 510-790 530-775 550-805
Working oil pressure(Mpa) 20 20 20 20 20 20 20 20
Main motor power(KW) 37 37 55 55 55 75 2*55 2*55
Machine weight(kg) 19000 27000 30000 39300 48000 63000 78500 95000
​
CNC Hammer Model C92K-80 C92K-100 C92K-125 C92K-160 C92K-200 C92K-250 C92K-320 C92K-400
Hit energy(KJ) 80 100 125 160 200 250 320 400
Weight of falling parts(kg) 5400 6800 8500 10800 13700 17100 21000 27000
Max hit number(min-1) 92 81 70 70 60 50 45 40
Hit stroke(mm) 570-835 595-885 615-920 640-960 740-1060 770-1100 740-1150 860-1200
Working oil pressure(Mpa) 20 20 20 20 20 20 20 20
Main motor power(KW) 2*90 2*90 2*132 3*90 4*90 4*90 4*110 6*110
Machine weight(kg) 120000 148000 195000 235000 275000 330000 410000 465000
