Solid State High Frequency Welder
| Price: | US$ 33333 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | TT |
| Port of Export: | Xingang,China |
Product Details
| Model No.: | GGP150 KW | Brand Name: | Chaochang |
|---|
| Certification: | ISO |
|---|---|
| Specification: |

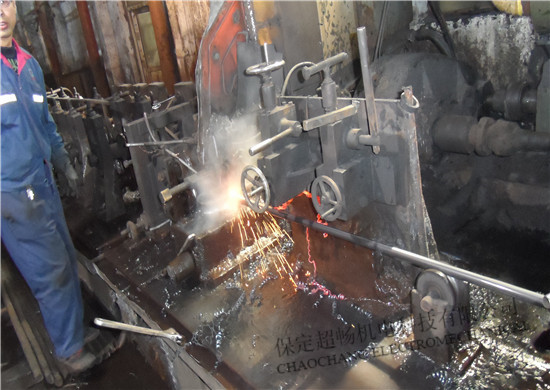

Application scope Mainly used for straight seam welding of carbon steel tube and high-strength steel(including round pipe、square pipe、rectangular pipe and special tube) and alloy steel. Technical features Fast welding speed, high production capacity and good energy-saving compared with vacuum tube welder. Output ripple less than 1%, fine shaping and stable quality. Wide adaptation scope for steel pipe welding, induction or contact welding type both type can be supplied With perfect protection function, reliable operation and low failure rate. |
Packaging & Delivery
| Packaging: | Wooden cases |
|---|---|
| Delivery/Lead Time: | 40 days after receiving deposit |
| Production Capacity: | 6 sets per month |
Product Description

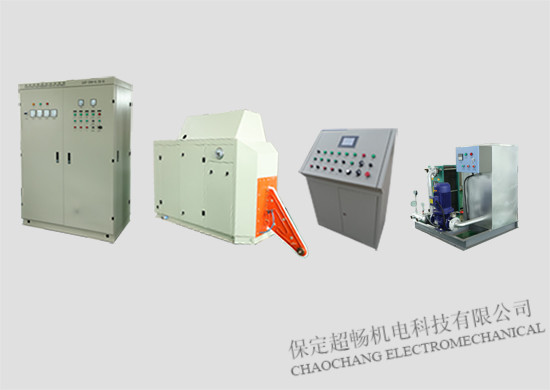

1. composition The whole set of high frequency solid state welder is composed of switch rectifying cabinet, inverter output cabinet, central control console,mechanical adjusting equipment, water cooling system and an air conditioner.
Switch Rectifying Cabinet
We integrate the switch gear cabinet part and rectifier part, besides the functions of switch cabinet, this design also has rectifying control functions on solid-state H.F. welders.
Install incoming disconnect switch ,incoming current meter, voltage meter(switchable)and incoming voltage indicating light.
Install 3-phase full-controllable thyristor rectifying bridge to achieve power regulation of H.F. welders.
Install flight wave reactor, flight capacitor and filter to increase flight coefficient.
.jpg
Invert output cabinet
The invert part is considered of MOSFET single phase invert bridge in parallel style. Each bridge’s design power is 120 KW/60KW. We adopt building block mode to pile up power, it is very convenient to install and maintain because every single bridge board is designed as drawer structure consisted of slideway.
We adopt matching transformer to realize power combination, also we adopt sub-resonance, no-welding transformer output mode and make resonance directly by tank resonance capacitor(low voltage)and inductor to achieve steel pipe welding power transmission by output lead.
Use sealed box and install overhead air conditioning.
|
