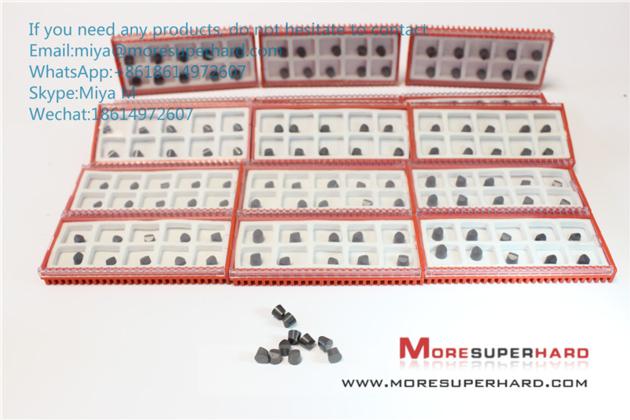

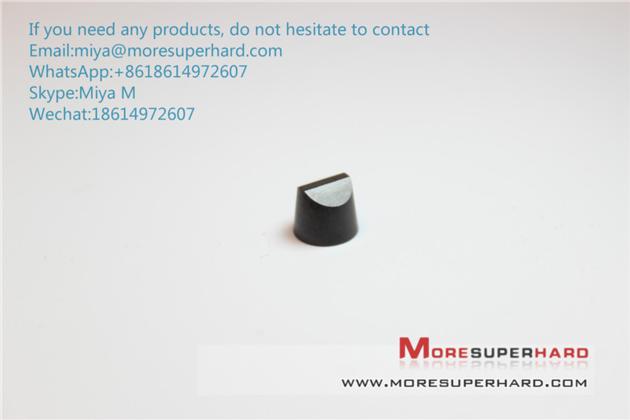

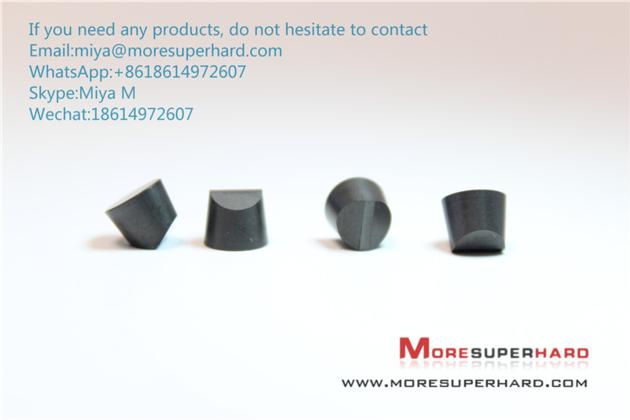

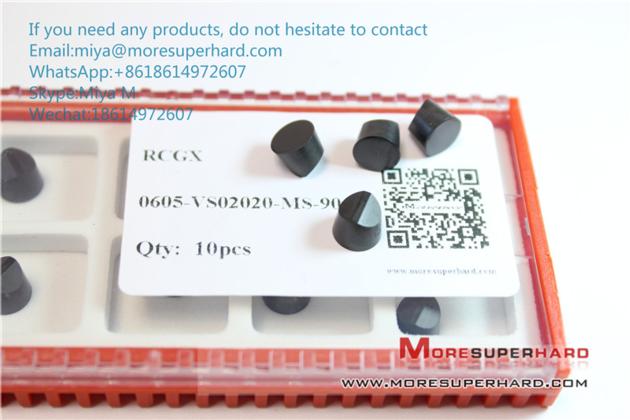

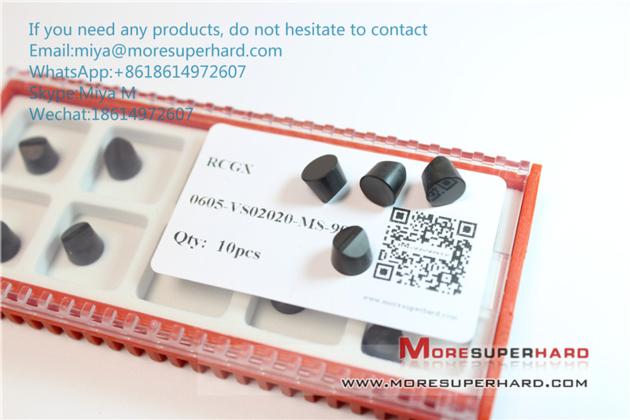

Solid CBN inserts RCGX060500 for Processing high-speed roll steel [email protected]

Name: Solid CBN inserts
Brief Introduction: solid cbn inserts are used for rough and finish machining of hard steel ,cast iron and hard surface workpiece.
type: RNMN,SNMN,TNGN,CNMN,RCMN,RCMX
application: turning hard steel,cast iron

Details
Cubic boron nitride inserts (CBN Inserts) is a high-performance type of cutting tool material from a polycrystalline mass. CBN is a high hardness, high heat resistance crystal synthesized by boron and nitrogen under high temperature and high pressure.
Applications of solid CBN inserts:
Processing workpiece: rough and finish machining of the hard steel ,cast iron and hard surface workpiece.
Processing materials: ferrous materials possessing hardness from approximately 45 HRC as well as gray cast iron, Cr-chilled cast iron and wear alloys on a cobalt, nickel or iron basis.
Usages of PCBN inserts:
1.PCBN bladesare mainly using in processing of hardened steel whose hardness is of HRC50-60. such as: carbon tool steel, bearing steel, die steel, high-speed steel and so on. It also using in processing of gray cast iron, ductile iron, chilled cast iron, and other high temperature alloy and so on.

2.PCD toolsare using in cutting of non-ferrous metals (such as copper, aluminum, magnesium, etc.) and non-metallic materials (such as fiberglass, ceramics, reinforced plastics, etc.)

Advantages:
- Professional Edges design for Milling; Super-precision Edges preparation,
- Faster Material Removal rate,
- Longer Lifetime,
- Lower Composite Cost.
