Soldering & Brazed PCBN Inserts [email protected]

Details
Our Solid PCBN / CBN Inserts Display A Serious Of Preminum Performance, Such As Strong Corrosion Resistant, Perform A Good Thermal Stability And Red-Hardness, Suitable To Process Cast Iron, Quenched Steel And Other Kinds Of Ferrous Metal.CBN Polycrystalline Block Cutter Of Our Company Shall Greatly Improve Cutting Speed And Realize Real High-Speed Cutting; Meanwhile It Is Fit For Continuous Processing; Dry Cutting Causes No Pollution And No Noise. Currently Our Company Can Provide Round,Cube, Square And Triangle Solid PCBN Inserts (Polycrystalline Cubic Boron Nitride).

More Superhard PCBN Cutter Insert ( Polycrystalline Cubic Boron Nitride) Mainly Used For Ferrous Materials Machining,Like Gray Cast, Cast Iron,Carbon Steels, Alloy Steels, Nickel Or Cobalt, Etc... PCBN Diamond (Polycrystalline Cubic Boron Nitride) Products Is Second Only To Diamond In Hardness. The Hardness Allows The Ability To Machine Hardened Work Pieces. The High Thermal Conductivity Of PCBN Allow For An Increase In Tool Life Over Carbide Tools. Furthermore, The High Chemical Stability Allows For PCBN To Be Stable Up To 1000® C And No Reaction With Fe, Ni, CO Etc... Allowing Easy Grinding And EDM Cutting.

Features of soldering brazed PCBN inserts:
* High chemical resistance stability
* High hardness and abrasive resistance
* Strong impact resistance
* Good fracture resistance
* High working efficiency
* Dry cutting


Applications of soldering brazed PCBN inserts:
Idea for machining hard ferrous metals, such as hardened steels, gray cast iron. PCBN inserts are widely used to machine brake discs, engine cylinder liners, engine blocks, break drumsticks, valve seats and guides, gears and mould,etc.

Specifications of Soldering brazed PCBN inserts:

inserts type dimension standard
cutting
edge
L ô i.c s r ô d1 ô d2
SCGW09T304-2S 9.7 9.525 3.97 0.4 4.4 6
SCGW09T308-2S 9.7 9.525 3.97 0.8 4.4 6
SCGW09T312-2S 9.7 9.525 3.97 1.2 4.4 6

inserts type dimensions standard
cutting edge
L ô i.c s r ô d
TNGA160404-6S 16.5 9.525 4.76 0.4 3.81 T01020
T02020
S01020
S02020
TNGA160408-6S 16.5 9.525 4.76 0.8 3.81
TNGA160412-6S 16.5 9.525 4.76 1.2 3.81
TNGA220404-6S 22 12.7 4.76 0.4 5.16
TNGA220408-6S 22 12.7 4.76 0.8 5.16
TNGA220412-6S 22 12.7 4.76 1.2 5.16

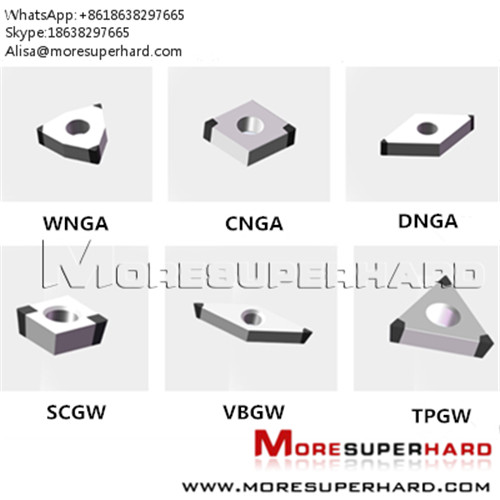

* Other Types Of brazed PCBN inserts Like WNGA,CCGW,DNGA,TNGA,SNGA,All Available Upon Request. For More Information, Please Click On The PDF Below.

Why choose our product
More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.

The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits.  more brings in revenue for you, you win, we win!

More SuperHard supplies the wheels for several application mainly:
1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .
2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels
nes such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels

Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered
