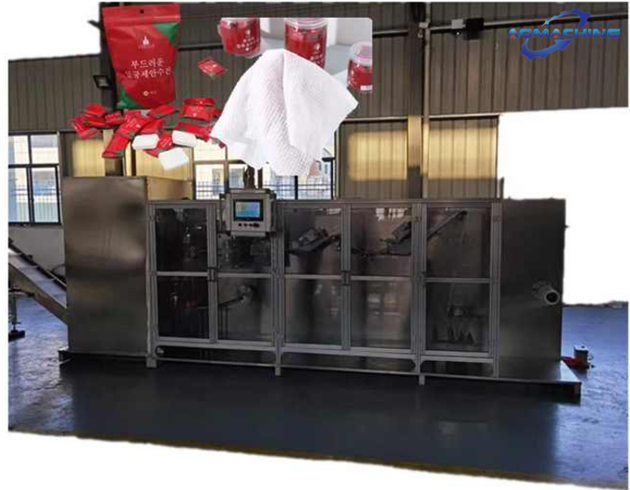

Soft Towel Making Machine

Automatic nonwoven fabrics folding machine specifications：

1.1500mm folding and cutting machine sizes: about 8.00*3.00*1.8m(L*W*H).

а. The maximum width of the material is 1500mm.

b. Folding machine can convert material with the density of 20-80gsm

c. The maximum diameter of raw material roll is 1000mm

d. The inner tube’s diameter of the raw material is 76mm

e. The requirement: unfolded size: 1500*1200mm folded size:250*250mm.

2.It process: spunlace nonwoven, and nonwoven fabrics laminated, PE etc.

3.Production process: 1. automatic feeding material 2. vertical folding the material with W folding way 3. Cutting the fabrics according to the length needed 4. cross folding according to requirements 5. The folded product output through the belt

4.The fabrics rewinding machine is equipped with a synchronous conveying device and a magnetic powder tension controller to ensure the dimensional accuracy of the folded finished product.

5.Producing speed: about 50-80m/min. The tension can be adjusted according to different weight of nonwoven fabrics and PE.

6.The folding devices use Chinese good quality stainless steel.

7.Use servo driven system to adjust the speed of the running. Total power is about 8kw, 380V. The electronic parts are from Xinje, and PLC and touchscreen are from Xinje.

8.The fabrics rewinding machine is equipped with our innovative multifunctional special-shaped folder, which can convert more product folding modes and is convenient to adjust.

9.The fabrics rewinding machine adopts a servo-controlled slider type horizontal fork knife, which can be folded horizontally up to 3 times.

10.The fabrics rewinding machine adopts servo-controlled imported cutting tools for cutting.

11.The fabrics rewinding machine adopts four-servo combined with PLC programming controller and microcomputer display screen to control production, all production parameters are clear at a glance and easy to operate.

12.The whole machine is made of international standard steel and iron. Use rust-preventing paint to brush the surface of the device. All the bedplates of the machine must use rust-preventing paint. Frame of the device had good jointing and the size is precise. Bracket is fixed strongly.

13.All the standard screws use good 45# and inner hexagon screws.

14.Supplying long-term technique instructing according to different weight of fabrics.
