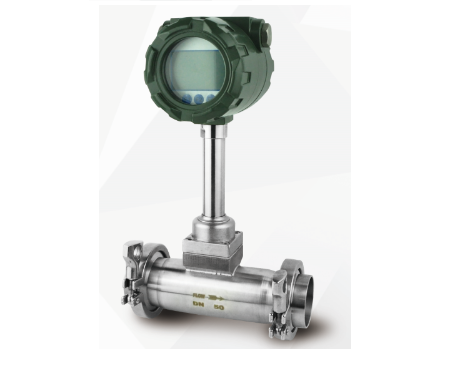

Smart Tempreature And Pressure Compensation Steam Vortex Flow Meter

Product Description 1. Vortex flowmeter

2. Accuracy: 1% measured value

3. Current output: 4-20mA

4. Protection level: IP65

5. Gas, Liquid

Products of Vortex Flow Meter, have achieved intellectualization, standardization, serialization, universalization, ensuring standards for quality and elegant appearance.

Features such as advanced circuits, low power consumption, wide ratio of measurement range, simple structure, a little resistance loss, durable design, extensive use, long service life, stable system and easy for installation and debugging.

Measuring medium Liquid, gas, vapor

Medium temperature Normal temperature: -40­ C~+80­ C High temperature +280­ C Maximum temperature +320­ C

Medium pressure 1.0MPa, 1.6MPa, 2.5MPa^ 32MPa

Intrinsic error Full tube type: ® 0.5%, ® 1.0%, ® 1.5% Plug-in type: ® 2.5%

Ratio of measurement range 1: 10 1: 20 1: 30 1: 40

Range of flow speed Liquid(water): 0.25M/S~9.5M/S Gas: 4M/S~78M/S Vapor: 3M/S~78M/S

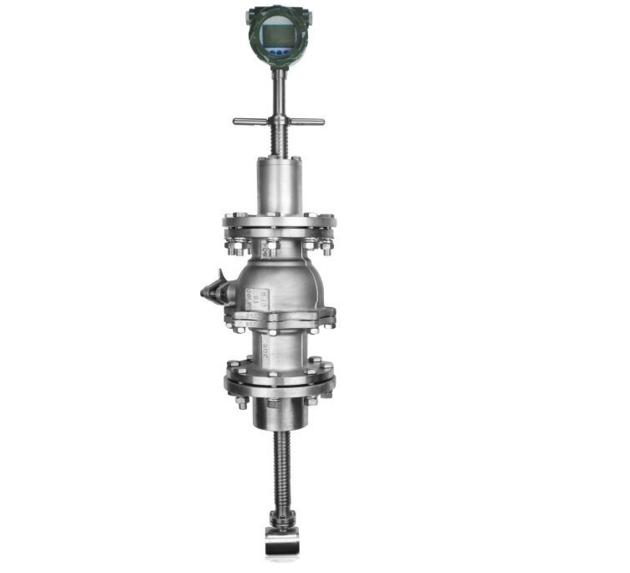

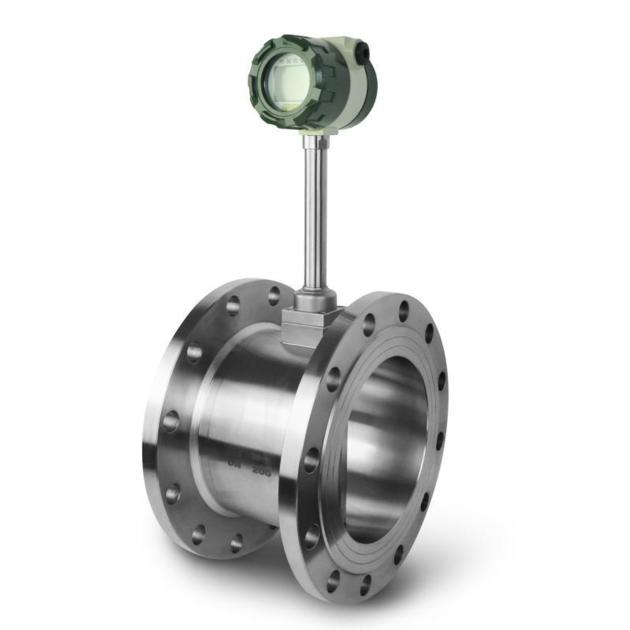

Caliber DN (mm) Full tube type: 15, 25, (32), 40, 50, (65), 80, 100, (125), 150, 200, 250, 300 Plug-in type: 300~3000

Reynolds number Re> 4000

Drag coefficient Full tube type: Cd ≤ 2.4, Plug-in type: Drag loss can be omitted

Degree of anti-explosion Intrinsic safety type: ia II T2~T5, Explosion-proof type: d II BT4

Ambient temperature Non anti-explosive area: -40­ C~+55­ C Anti-explosive area: -20­ C~+55­ C

DC supply +3.6V, +12V, +24V (Field data show the supply is +3.6V for 3 to 5 years)

Output signal Frequency impulse signal: 1~2600Hz, low level≤ 1V, high level≥ 5V, transmitter: two-wire system 4~20mA
