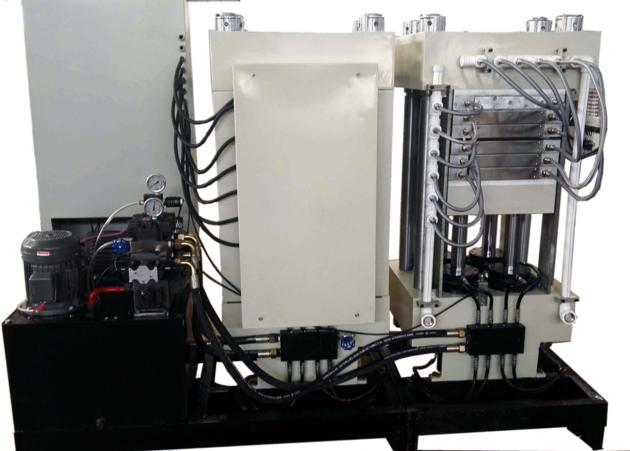

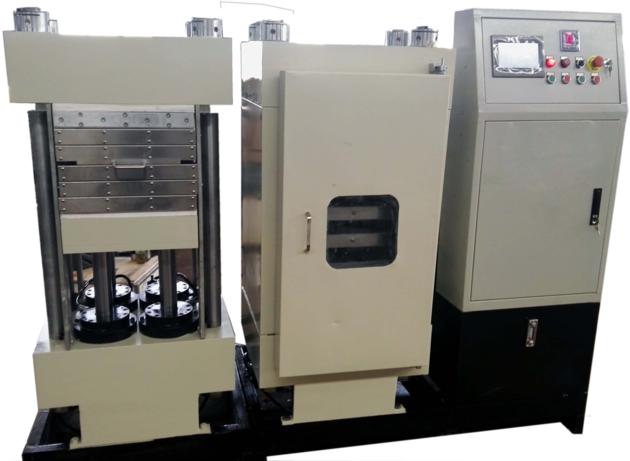

Smart Card Laminator YLL-26C 420*520

 Feature Description
 It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
 It is specially designed for massive lamination of various cards including contactless RFID chip cards and RFID INLAY sheets.
 Automatic lamination parallelism adjustment is available.
 The pressure and temperature control module is applied to ensure higher control precision.
 If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
 The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

 Technical Parameters
Technical Parameters
1. PVC sheet layout: 5×5, 3×8, 4×8
2. Laminating template size and material: 420×520mm, aluminum alloy

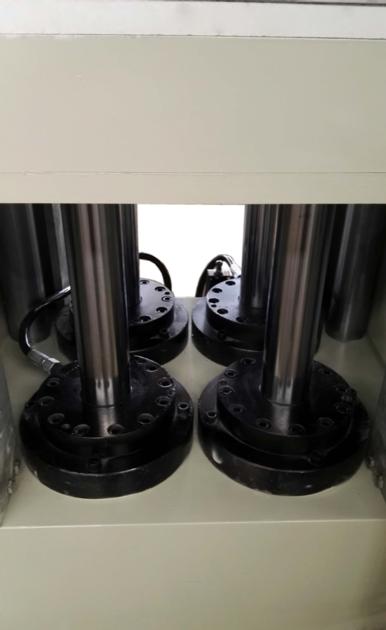

3. Hydraulic cylinder number: 4 small cylinders (diameter 60mm) for each tower
4. Daylight number/distance: 6 daylight 2 tower/50mm
5. Control mode: PLC
6. Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)
7. Temperature control precision: +/-1℃
8. Heating temperature: ≤200℃
9. Power: 23 KW (Maximum)
10. Power supply: AC380V 50/60HZ 3 phase 5 wires
11. Dimension: 2500mm×1200mm×1850mm
12. Gross weight: 3200 kg.
