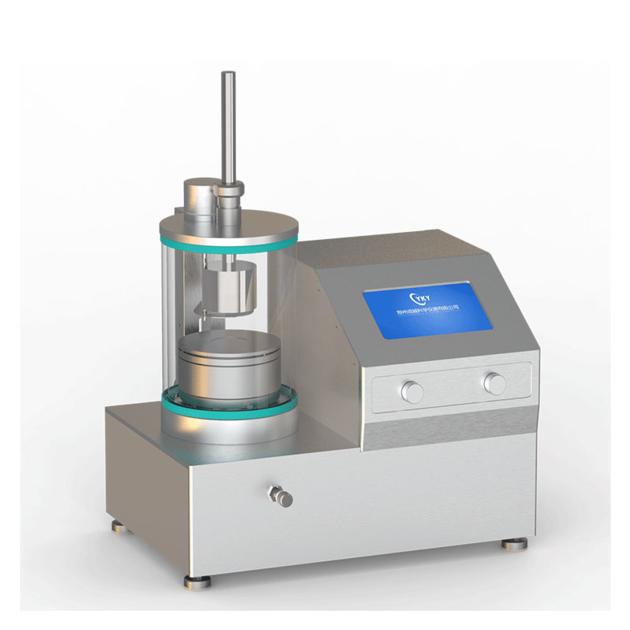

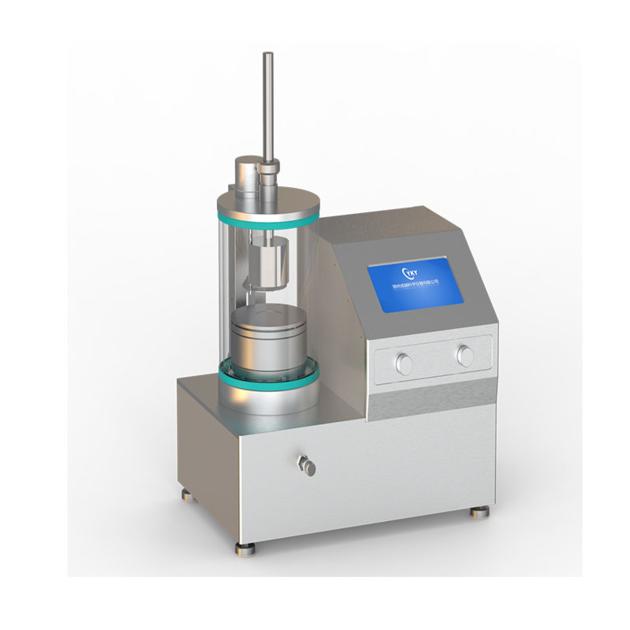

Small desktop single-target DC magnetron sputtering coater
| Price: | US$ 7900 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Others |
| Port of Export: | Zhengzhou, Shanghai, Qingdao, etc. |
Product Details
| Model No.: | CY-MSP180G-DG | Brand Name: | CYKY |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Sample stage
Size φ138mm Heating temperature Max 500℃ Temperature control accuracy ¯1℃ Rotate speed 1-20rpm adjustable Magnetron Sputtering target head Quantity 2”×1 (1”,2” optional) Cooling mode Water cooling Chamber size φ180mm×215mm Chamber material High purity quartz Opening mode Top cover removable Ultimate vacuum 1.0E-5Pa Power configuration Quantity DC power supply x1 Max output power 150W Overall size 500mm×350mm×400mm Total Weight About 30kg |
Packaging & Delivery
| Packaging: | Standard export wooden box packaging |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 200 Sets/Month |
Product Description
Small desktop single-target DC magnetron sputtering coater is a cost-effective magnetron sputtering coating equipment independently developed by our company. It has the characteristics of miniaturization and standardization. The magnetron target head has 1 inch and 2 inches to choose from. Customers can choose the target according to the size of the substrate to be plated. The device is equipped with 150W DC power supply, which can be used for metal sputter coating. The coating machine is equipped with gas inlet port for the introduction of protective gas. If the customer needs the mixed gases, the staff can be contacted to configure the high-precision mass flow meter to meet the experimental needs. The instrument is equipped with advanced turbomolecular pump set, the ultimate vacuum is up to 1.0E-5pa, and other types of molecular pumps are also available.
Application:
The device can be used to prepare single-layer ferroelectric thin films, conductive films, alloy films, and so on. Compared with similar equipment, the single-target magnetron sputtering coater is compact, highly integrated and small in size, and can be placed on a desktop. It is an ideal equipment for laboratory preparation of material films.
|
