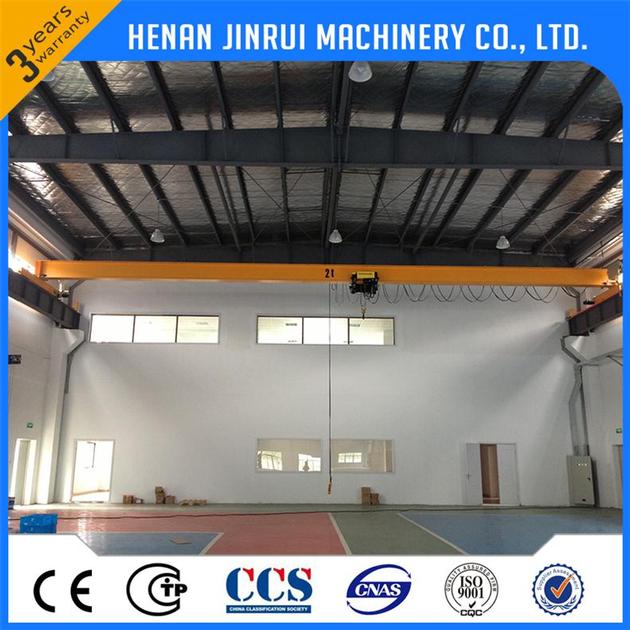

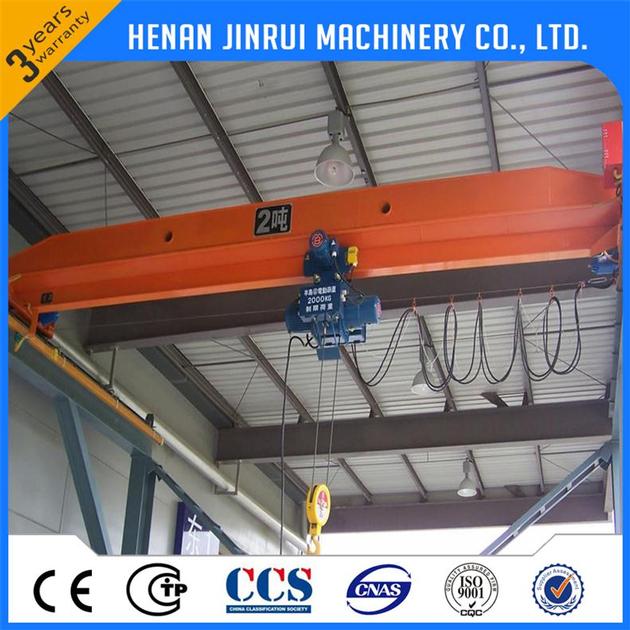

Single Girder Overhead Crane 10 Ton

European type cranes have such design concepts as small dimension, light dead weight. Compared with traditional cranes, the limiting distance is minimum from hook to wall, and headroom is the lowest, which makes cranes work more close to the front, and lifting height more higher that increases effective working space of workplace.

Capacity: 1ton-20ton
Span: 6m-31.5m
Lifting height: 6m-18m
Working grade: A3-A5
Working temperature: -25 to +42 centigrade
Three control methods:
1.Pendent control: A. Easy operation when obervation. B. Convenient to communication with other workers.
2.Wireless remote control: A. Greatly improved the work efficiency. B. Keep the operator from danger.
3.Cabin room control: A.Designed by Man-machine engineering principle
B.The driver seat has adjustable height and rotation.

Safety & Mechanical Features
1. The frame of crane beam is square box frame, it is made by Q235 or Q345 steel plate, it has smaller body to get more lifting space.
2. The lifting unit is wire rope electric hoist, it is low headroom frame electric hoist, it takes smaller space on vertical direction.
3. This overhead crane(bridge crane) has several safe protection functions, such as up/down limit switch, overload protection, low-voltage protection and long travelling limit switch, and the cross and long travelling motors have soft start function, the crane is very easy to use.
4. This overhead crane(bridge crane) is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.
5. The all motions of this overhead crane are double speeds, the lifting motor is double speed type, the cross travelling motor and long travelling motor are controled by frequency inverter.

PRODUCT CLASSIFICATION
Because single girder overhead crane divides into four types, here are the detailed information, if you are interested in any one, please let us know.

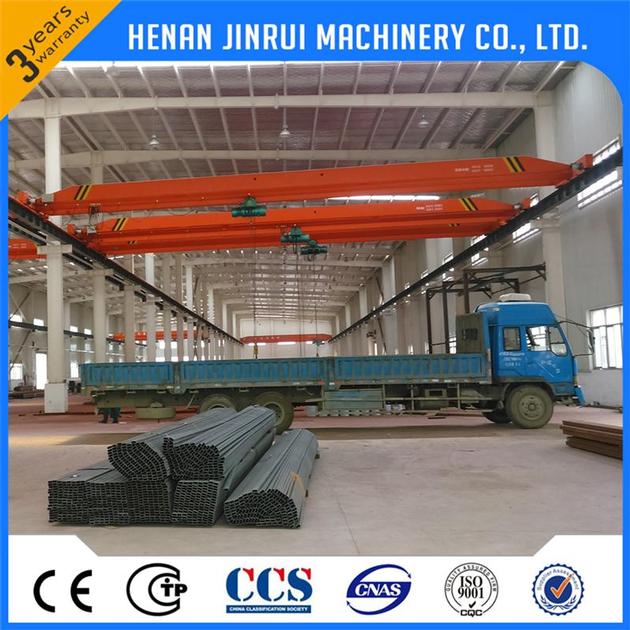

LDA type single girder overhead crane is widely used in warehouse, plant, material stock to lift the goods.
Capacity: 1ton-20ton
Span: 7.5m-31.5m
Lifing heihgt: 6m-18m
Working with CD1 OR MD1 electric hoist

European type single girder overhead crane is compact lifing manchinery designed and manufacturing in the strict accoring with FEM and DIN standard, which is advanced technology and beautiful design.
Capacity: 1ton-20ton
Span: 6m-31.5m
Lifing heihgt: 6m-18m
Working with European type electric hoist

LDP single girder overhead crane belongsto very low clearance light duty equipment. Electric hoist is at the side of the main girder, so it will increase service space of hook and reduce the cost, so it is widely used in the situation of low headroom workshop.
Capacity: 1ton-20ton
Span: 6m-31.5m
Lifing heihgt: 6m-18m
Working with CD1 OR MD1 electric hoist

LX single girder overhead crane is a light duty track traveling crane with railway, which applies to be used in the matching assembling site and warehouse.
Capacity: 0.5ton-10ton
Span: 6m-31.5m
Lifing heihgt: 6m-18m
Working with CD1 or MD1 electric hoist
