Shot Bag Impact Glass Testing Equipment
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 Set |
| Payment Terms: | T/T |
| Port of Export: | Tinajin |
Product Details
| Model No.: | Brand Name: | YuanChen |
|---|
| Certification: | |
|---|---|
| Specification: | Determining the resistance of glazing materials to impact by the penetration method. |
Packaging & Delivery
| Packaging: | Plywood Box(Meet import and export requirements) |
|---|---|
| Delivery/Lead Time: | 15-30 days |
| Production Capacity: |
Product Description

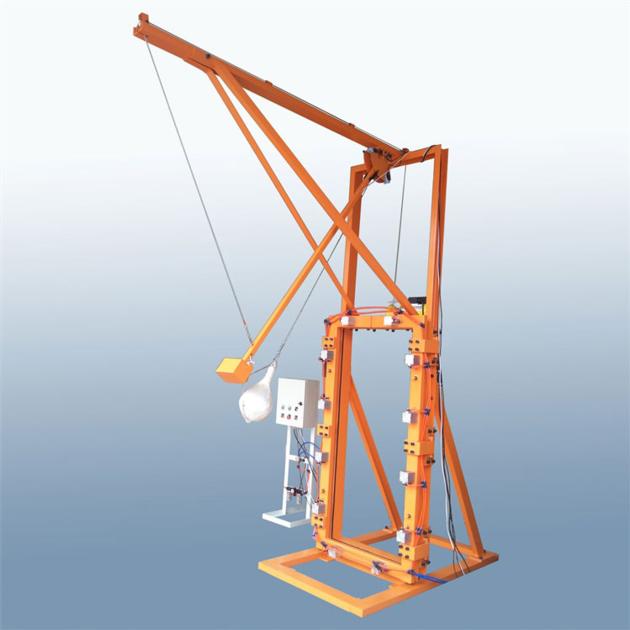

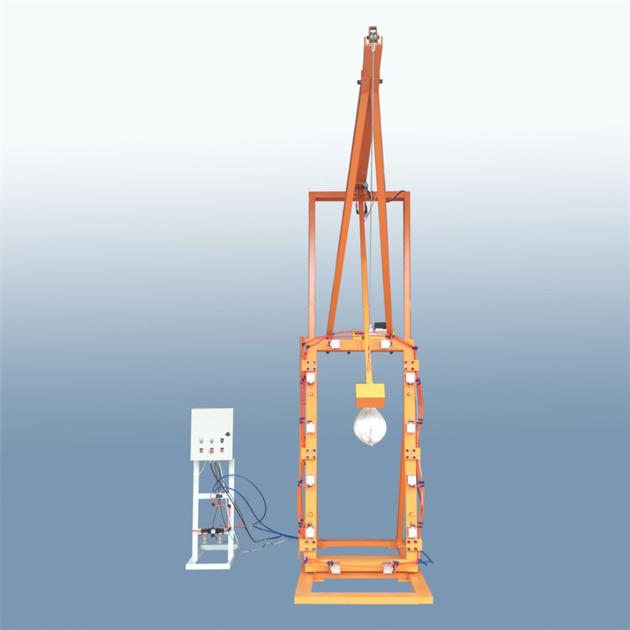

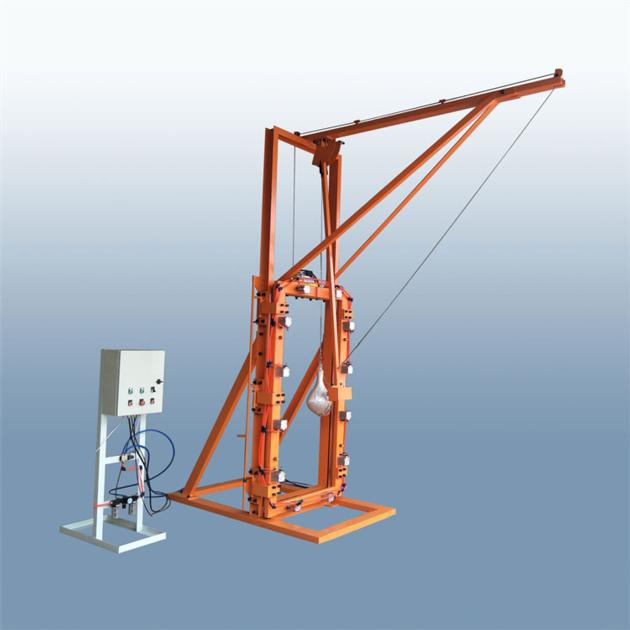

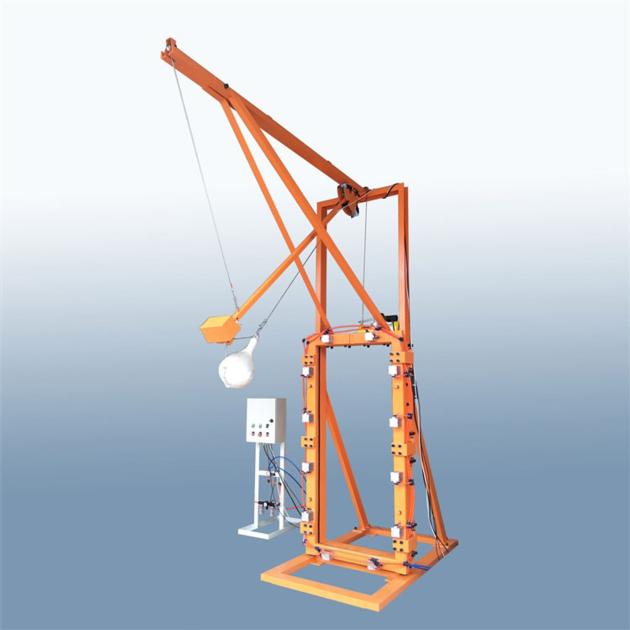

Safety Glass Impact Testing Equipment.
45kg/46kg shot bag and 50kg Pneumatic Tyres Impactor.
Processed in accordance with ANSI Z91.1, ISO 3537, BS EN 12600 and AS NZS 2208.
Related Standards:
AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test
GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag
ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test
Application:
Determining the resistance of glazing materials to impact by the penetration method.
Test Frame:
Frame Size: 1900mm*1500mm*3570mm
Samples Size: 1930mm*864mm
Lift: Electric
Release: Auto
Maximum impact height: 1200mm (customized)
Rubber Pad Width: 15mm
Rubber Pad Thickness: 3mm
Rubber Pad Hardness: Shore A50

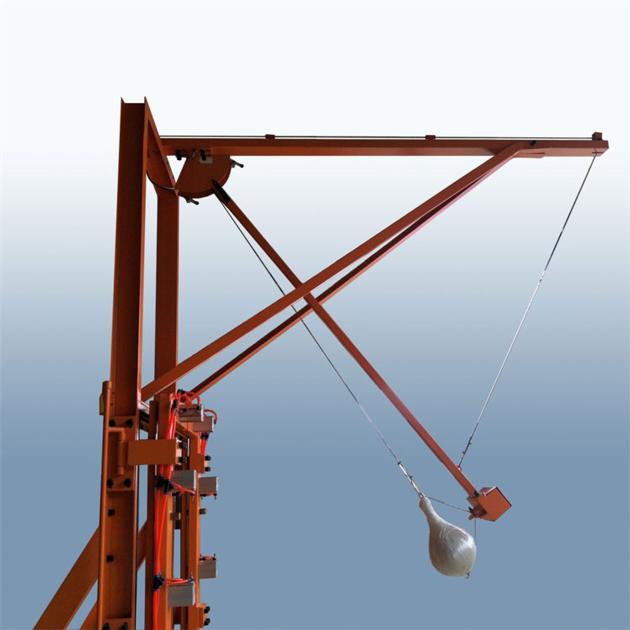

Impact Shot Bag:
Reinforced leather bag filled with chiller lead shot.
Technical Data:
Weight: 45kg0.1kg 46kg0.1kg
Height: 330mm 13mm
Max diameter: 250mm
Leather thickness: 1.5mm
Lead sand size: 2.5mm
Customized: 25kg /48kg
|
